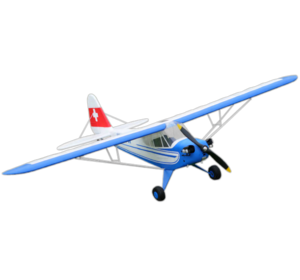

Swiss J-3 Piper Cub from HobbyKing

Details

This version of the popular Piper J-3 Cub is in a striking new Swiss color scheme which is a must for all scale pilots. This color scheme uses a lot less paint so there is a bit of a saving in weight which further reduces the already low wing loading. The attention to detail makes it an extremely realistic model, and it comes with a nice, generous size 1400mm wingspan. Like all Cub's with its large wingspan, and stable flying characteristics it is very easy to fly, perfect for low-hour pilots and experts alike. The Swiss Cub also has a new all-metal landing gear which is virtually indestructible, this will survive the hardest of landings. Further weight saving has been achieved by the removal of the metal tail bracing wires, these have been replaced with scale-looking, easy to fit, lightweight elasticated white shock chord.

The Piper J-3 Cub is an American light aircraft that was built from 1938 onwards by the Piper Aircraft Company. It was designed to be lightweight and simple to build, would have good low-speed handling qualities, and have great short-field performance. Primarily the Cub was a trainer and gained great popularity in this role, but later on, it became well suited for a variety of military uses such as reconnaissance, liaison, and ground control roles.

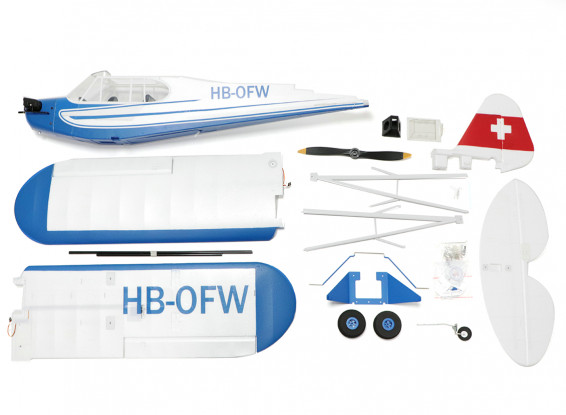

Putting the H-King Cub together is very simple with every component attached by screws, no glue is required except for some recommended reinforcement purposes. The 9g servos come pre-installed as well as the 45A ESC and powerful 3648-700KV brushless motor. The scale detail is exceptional with plastic injection molded parts used extensively throughout including the dummy engine, wing struts, molded glazing, and large “Cub” wheels. Practical features include the linked steerable tailwheel, large magnetic battery hatch, and the construction is from tough, lightweight, and easy to repair EPO foam.

The H-King Swiss J-3 Cub is a genuine scale model of a full-size J-3 Cub and is easy to fly by pilots of all abilities including beginners. It is a fantastic-looking model and its unique color scheme makes it look impressive in both the air and on the ground. The Swiss Cub is fitted with a very versatile power train, you can fly it on a 2700mAh 3S which will give you long, lazy scale flights, install a 2450mAh 3S LiHv for sport flying (this is our favorite set-up), or step up to a 2200mAh 4S for a Cub that comes alive with plenty of power for some crazy, stunt flying. All this is achieved using the same motor, ESC, and prop, nothing requires changing. When it comes to performance the choice is yours, but be rest assured, whatever power you choose you will be really pleased with the performance of the H-King Swiss J-3 Cub.

Included in the box are an FPV camera mount and a JST ESC to FPV equipment lead. This mount etc coupled with the crystal clear molded windscreen gives you the opportunity to experience HD scale FPV flying from the cockpit for the ultimate FPV experience.

Features:

  • Authentic scale Swiss color scheme
  • Has realistic attention to detail
  • Virtually indestructible metal landing gear
  • Includes FPV mount and crystal clear windscreen for HD scale FPV flying
  • Excellent flying qualities and low-speed handling
  • Lightweight, tough EPO construction
  • Plug N Fly with pre-installed servos, motor, and ESC

Pictures

Manual

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Swiss J-3 Piper Cub in particular but at least we know they do distribute HobbyKing.

Where to buy

Hong-kong
HobbyKing
check web site
Ship to: World

Wingspan: 1400mm (55.1 in)
Length: 950mm (37.4 in)

Weight: 1900 g (4.2 lbs)
  • Wingspan: 1400mm (55”)
  • Length: 950mm
  • Flying weight: 1850g~1900g (depending on set-up)
  • Wing loading: 56g/dm²
  • Propeller: 12x6
  • ESC: 45A
  • Motor: 3648-700KV brushless outrunner
  • Servos: 4 x 9g

Variants

9306000530-0
Swiss J-3 Piper Cub (Blue White Red)
