ANTARES F3L from HolzKlasse

Details

The Antares is a thoroughbred F3L competition model that has been successfully proving itself since the 2023 competition season.

Just under 2 meters wingspan, just over 30dm² wing area, a take-off weight from 450 grams and guaranteed lots of fun! Everything the FAI-F3L regulations require.

No big design frippery - still beautiful - but performance without end and lots of innovative ideas.
Wings hemmed in on the fuselage, an integrated battery charger and connection socket, a practical option for ballasting and a removable vertical stabilizer - to name just a few examples.

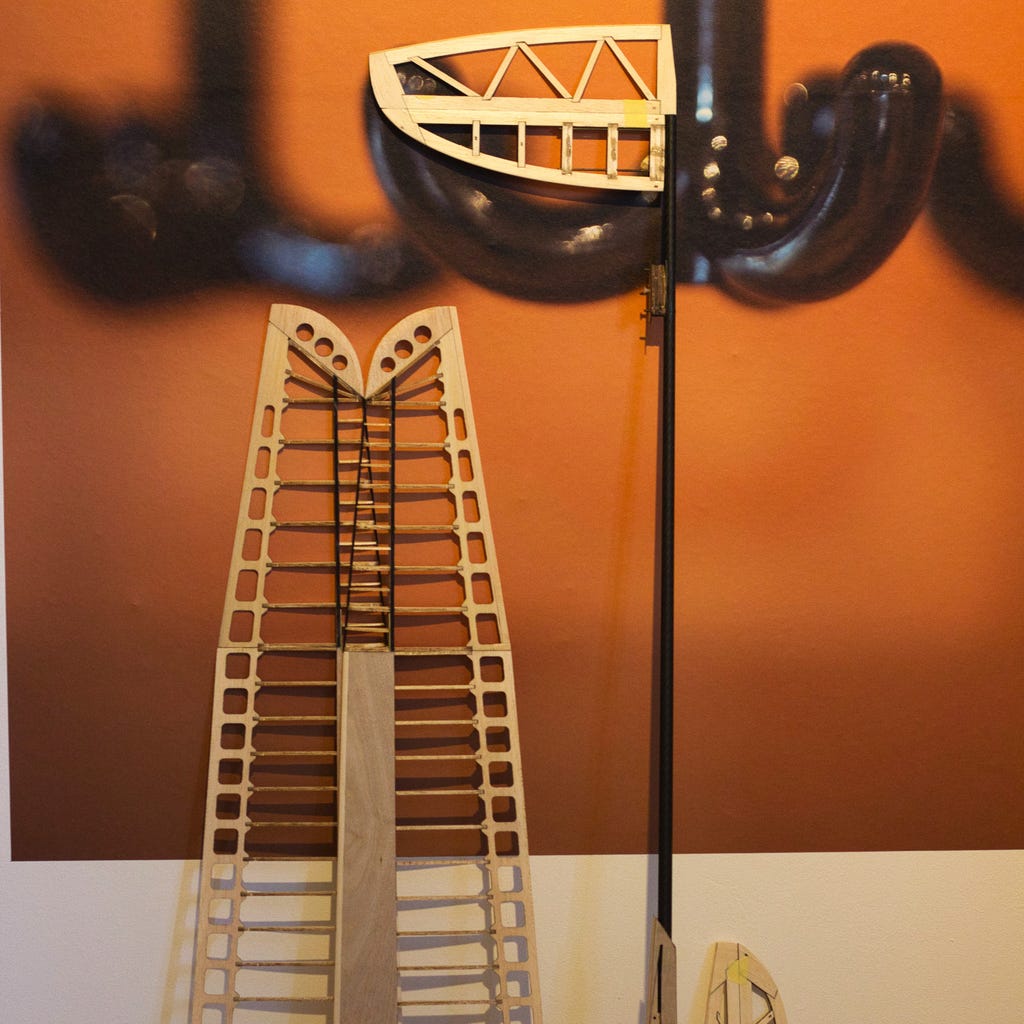

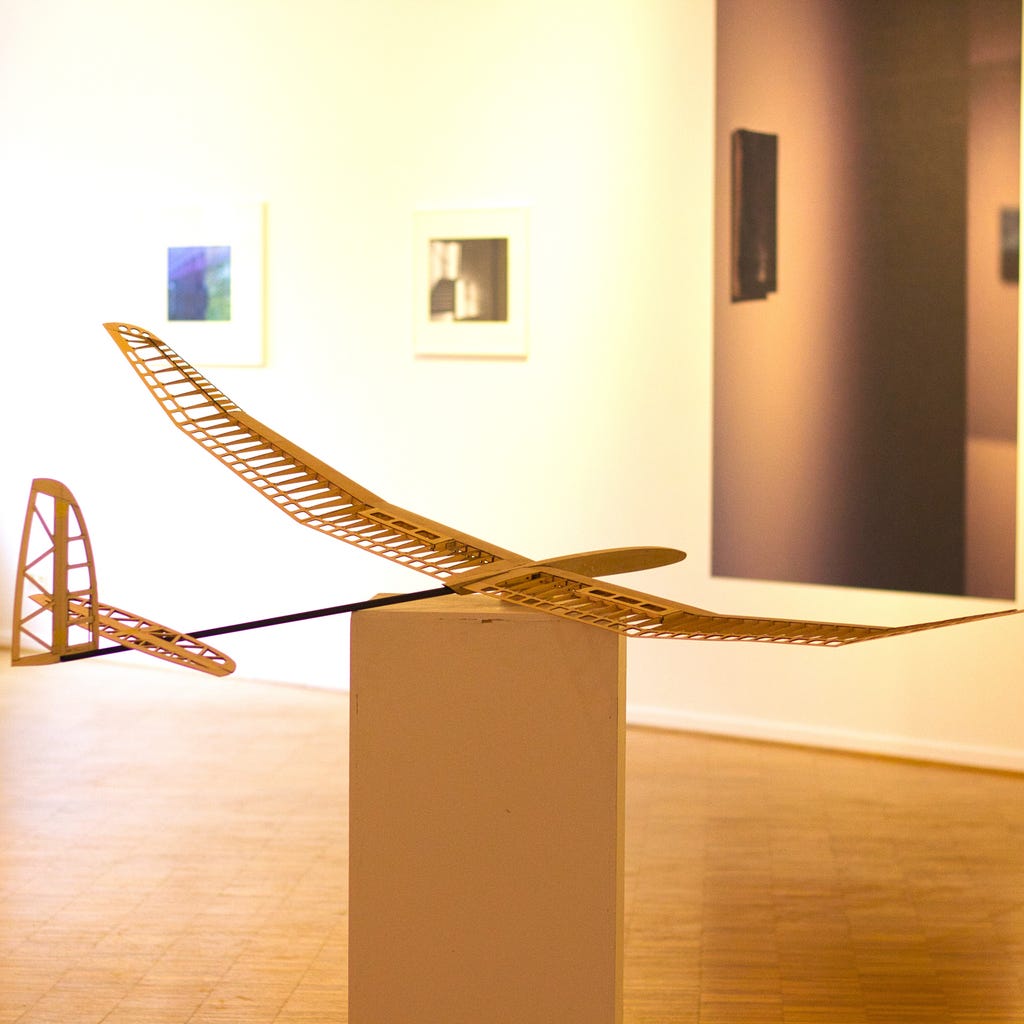

The wing is classically constructed with a D-box and a double spar chord on a balsa spar.
It is very torsionally stiff and can be loaded to the maximum without having to worry about the structure of the wing during take-off, even with a little more wind.
“Stiff as a board” and “full-load resistant” would probably describe it best.

The fuselage is also very stable thanks to its layered construction and can withstand even hard target landings thanks to targeted reinforcements in high-stress areas.

The flight behavior is extremely uncritical and suitable for beginners.
The Antares shows thermals extremely well and once circled it doesn't stop so quickly. It is a real treat to be able to watch it climb.
The enormous agility resulting from the rather high V-shape enables a high degree of maneuverability even in the tightest of spaces.
This means that the smallest thermal bubbles can be flown very well and used wonderfully as springboards for greater fun further up.

The Antares also shows its potential in windy conditions. You can easily  extremely large airspace for thermals in a short time without losing much height. Flying backwards in windy conditions is completely redefined here. Even long return flights to the landing point against strong winds suddenly seem like child's play.



Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the ANTARES F3L in particular but at least we know they do distribute HolzKlasse.

Wingspan: 1980mm (78 in)
Length: unknown

Weight: 450 g (15.9 oz)
  • Wingspan: 1980 mm
  • Surface area: 31.6 dm²
  • Weight standard (D-Box): from 450 gram
