Vortex 285 from ImmersionRC

Details

The ImmersionRC team combined a unique foldable mini-quad frame, and added the stuff that ImmersionRC does well.

An integrated full-graphic OSD, coupled directly to a flight controller pre-loaded with Cleanflight. Drive that into a custom, integrated, 5.8GHz video transmitter with a punchy 350mW output power, just right for FPV racing with friends.

Just add a compatible R/C Rx (EzUHF preferred of course), and a battery, and go fly, everything else is included, from the SpiroNET Tx antenna, to the props.

Features

  • 285-sized foldable Mini-Quad
  •  Carbon Fiber and custom injected plastic design
  •  Integrated Flight Controller, pre-loaded with Cleanflight
  •  Integrated full-graphic OSD, with on-screen control of.. everything
  •  Integrated 40 channel NexWaveRF 5.8GHz Video Tx
  •  Pro-tuning options, select your favorite pilot!
  •  Tight interface with EzUHF receivers
  •  Tiltable, Vibration-free Camera mount
  •  GoPro (3/4) and Mobius mounting options

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

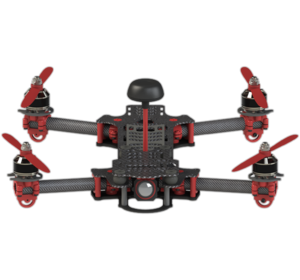

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

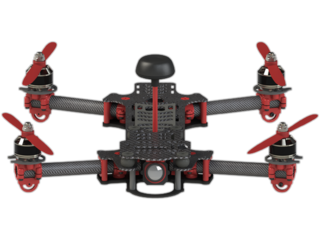

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Vortex 285 in particular but at least we know they do distribute ImmersionRC.

Wingspan: 285mm (11.2 in)
Length: 285mm (11.2 in)

Weight: 350 g (12.3 oz)
  • Weight: ~350g without battery, or HD camera
  • Power Requirements: 3s-4s LiPo (typical)
  • ESCs: Full Custom, 12A cont. 16A peak, rotorSENSE, OneShot125
  • Flight Camera: FatShark 600TVL CMOS (std), FatShark 700TVL CMOS, and 900TVL CCD optional
  • HD Camera: GoPro Hero, Hero 3/4  (Optional power from onboard BEC), Mobius, Runcam
  • Receiver Compatibility: CPPM Input, with S-Bus, and Spektrum™ Satellite converter cables optional
  • Flight Time: Highly dependent upon battery, and flying style
