AIR-RC

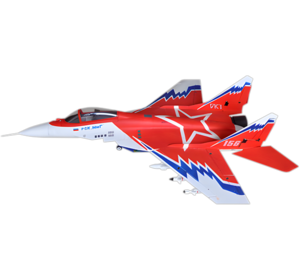

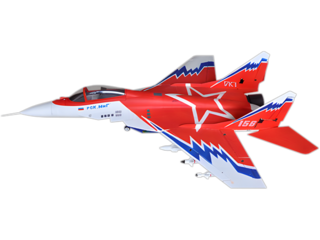

Mig-29 Red Star from LanXiang

Details

Features:

10 operable channels (ailerons, elevator, throttle, rudder, retract, thrust vectoring, airbrake flaps, cockpit ejection, brake parachute ejection, smoke actuate)
Nightflight LED lights
Dual 360 thrust vectoring nozzles
Capable of alpha maneuvers
Cockpit ejection
Controllable airbrake flaps
With color smoke function
Durable and high scale screw retract
Drag parachute
Can do all the 3D actions like real plane
With twin 70mm EDF

Pictures

Manual

If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Mig-29 Red Star in particular but at least we know they do distribute LanXiang.

Where to buy

France
Turbines RC
check web site
Ship to: Worldwide

Wingspan: 1142mm (45 in)
	Length: 1514mm (59.6 in)
Weight: 2400 g (5.3 lbs)

See Specs & Tech Details

Wingspan	1142mm / 45in
Length	1514mm / 60in
Flying weight	2400g / 85oz
CG (Center of Gravity)	Check manual
Servos	14x 17 gr metal gears digital
EDF Thrust	2x 1250gr
Direction of Rotation (EDF Rotor)	Classic Counter Clock Wize (CCW)
EDF Diameter Class	2 x 70 mm
Turbine shroud	Synthetic
EDF Rotor	Synthetic
Power System	2x 2100kV Outrunner Brushless
Motor Type:	Out-Runner
Electronic Speed Control	2x 60A Hobbywing - 5A BEC
Battery Cells	6s - 22.2v
Battery Capacity	4.000 mAh
Connection	PK 5.5mm male/female (Bullet Connector)
Surfaces	Ailerons, Elevator, Flaps, Vector thrust, Slats, Parachute system
Landing Gear	Plastic main and nose gears struts, Retractable suspended gear, Steering gear
Lights	Navigation lights
Material	EPS Foam
Radio requise	minimum 7 channels - maximum 10 channels
