Bushmaster 65 from OMP Hobby

Details

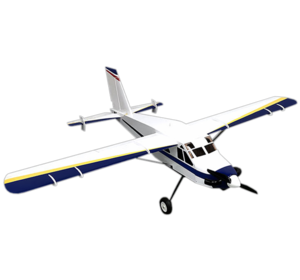

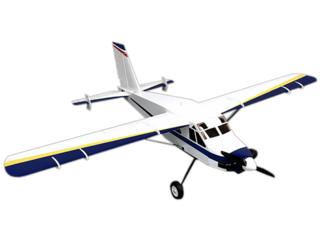

OMPHobby 65”Bushmaster this aircraft faithfully replicates the true designs of the real-life aircraft, the head of the aircraft is reinforced with composite splints, the fuselage uses carbon fiber beams, an easy-to-install Horizontal Stabilizer Elevator, and an integrated Elevator, there are also pontoon installation positions, and aluminum alloy Wing Struts.

The aircraft is made of high-quality materials such as balsa wood, composite material, aluminum alloy, carbon fiber, and covering film,it is light, strong, and exquisitely beautiful.

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 1660mm (65.4 in)
Length: 1300mm (51.2 in)

Weight: 2600 g (5.7 lbs)
  • Wingspan: 1660mm (66in)
  • Length: 1300mm (52in)
  • Weight: 2.3-2.6 kg
  • Wing Area: 34.2 dm²
  • Wing Load: 67.25-76 g/dm²
  • Wing Angle of Incidence: 0.5°
  • Motor Thrust Angles: Down 0°& Right 2.5°
  • CG : Approx. 58-65mm (measured from wing leading edge at root)


Power System

  • Motor: Sunnysky 3520
  • ESC: Sunnysky 60-80A
  • Propeller: Eolo 14x7E
  • Lipos: 6S 2200-3300mah/ 4S 2600-4000mah
  • Servo: SG5S (23x12mm)*6 (Aileron*2, Flap *2, Elevator*1, Rudder*1)


Servo

  • OMPHobby SG5S (23x12mm)*6 (Aileron*2, Flap *2, Elevator*1, Rudder*1)
  • Cord/lead: 600mm *1, 220mm*3, 450mm*2
  • Servo Arm: 2.5" Servo Arm


Recommended Settings of Dual Rates and Exponential of Control Surfaces

  • Aileron:
    • Low rate 15 deg.  30% expo
    • High rate 38 deg.  45% expo
  • Elevator:
    • Low rate 15 deg.  30% expo
    • High rate 45 deg.  45%expo
  • Rudder:
    • Low rate 15 deg.  30% expo
    • High rate 48 deg.  50% expo
