Messerschmitt Bf 109 from Phoenix Model

Details

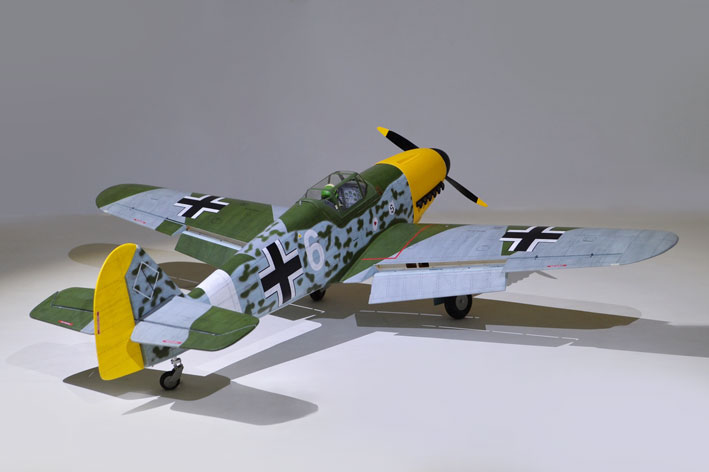

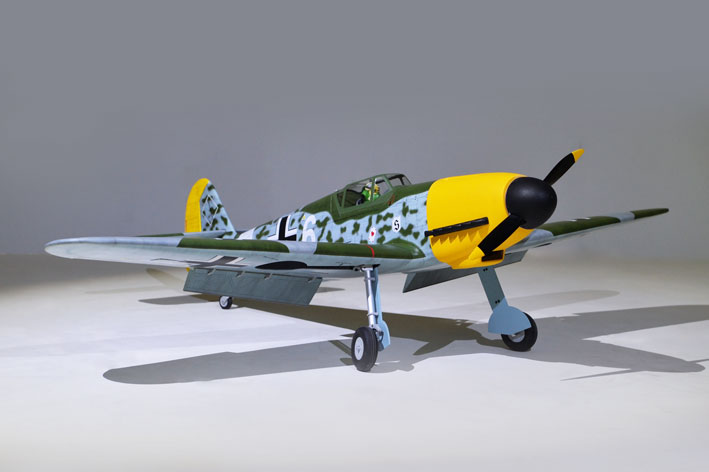

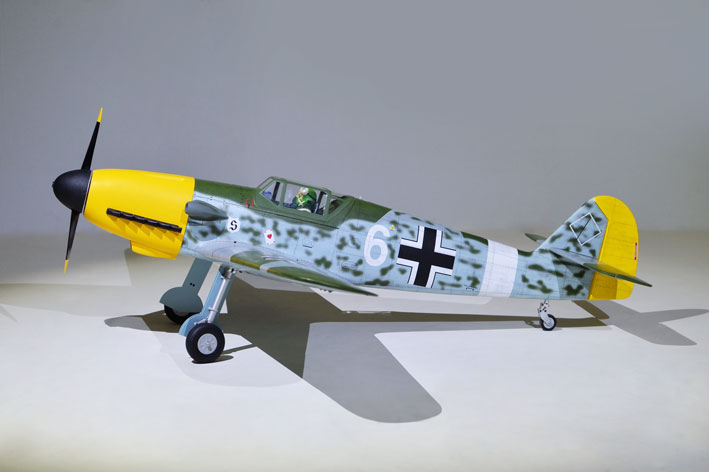

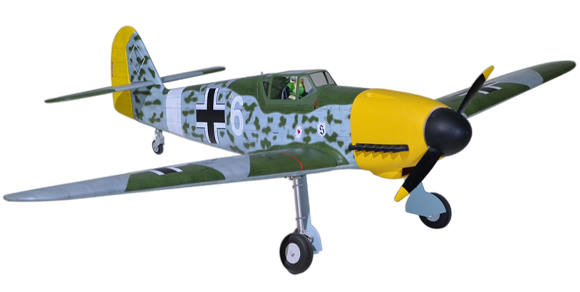

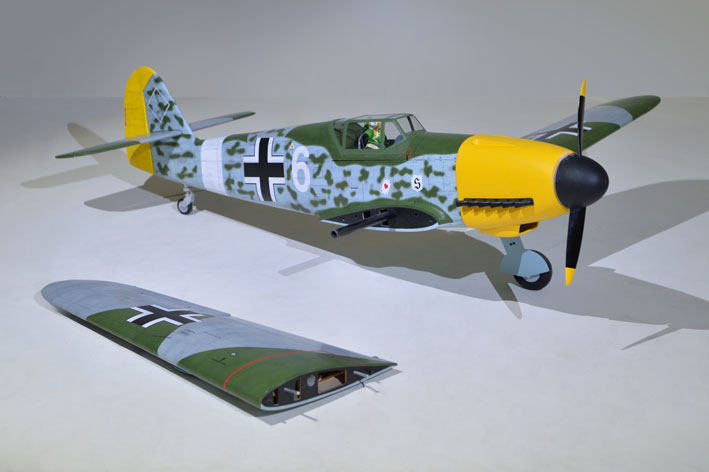

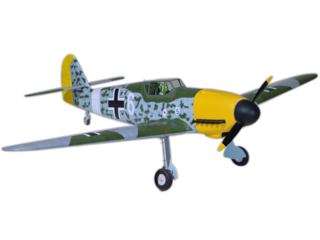

The Phoenix Model PH238 Messerschmitt Bf 109 is an Almost Ready to Fly (ARF) scale model of the iconic World War II German fighter aircraft.
The model is designed as an ARF kit, minimizing build time and allowing the user to install their preferred power system and electronics

Features:

  • Designed for compatibility with both GP and EP flight
  • Electric Retract With CNC Suspension Metal included
  • Full-depth cockpit and instrument panel and pilot included

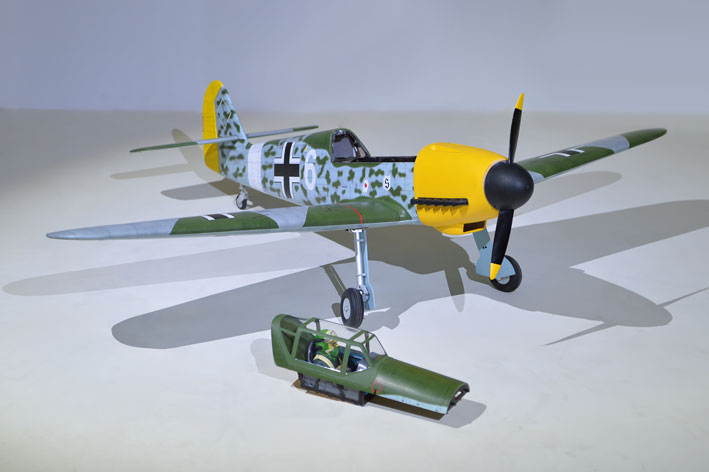

  • Removable Top Hatch Canopy for easy change lipo battery and set up radio
  • Strong Light Weight Construction
  • Superb flying characteristics, plus an accurate scale outline
  • High-quality hardware package included

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

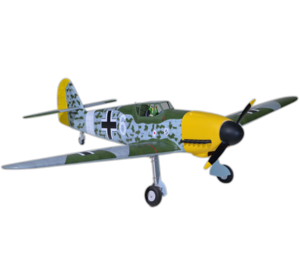

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 1820mm (71.7 in)
Length: 1609mm (63.3 in)

Weight: 5200 g (11.5 lbs)
  • Wingspan: 1820 mm (71.7 in)
  • Length: 1609 mm (63.3 in)
  • Flying Weight: 5000−5200 g
  • Construction: Extremely light and high-strength, laser-cut balsa/plywood structure.
  • Finish: Fully covered and painted with a high degree of prefabrication.
  • Power Compatibility: Designed for both Gasoline (GP) and Electric (EP) power systems.
    • Recommended Engine (Gas): 20−26 cc Gas Engine (not included)
    • Recommended Motor (Electric): Brushless Outrunner 1500−1800 W, 450 KV (not included)
    • Recommended Battery (Electric): 6S Li-Po (not included)

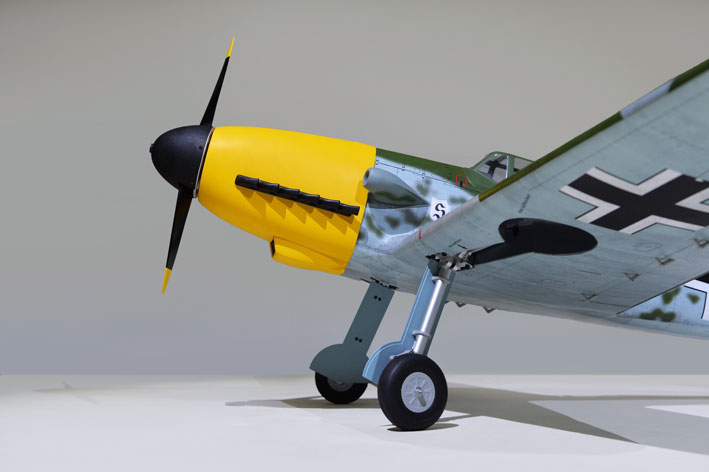

  • Landing Gear: Electric Retract Gear with CNC Suspension Metal legs (included).
  • Control Surfaces: Includes functional landing flaps.
  • Required Radio: Minimum 8 channel radio system (not included).
  • Required Servos: 8 standard servos are required for control (ailerons, flaps, elevator, rudder, and throttle for gas), 7 for electric (not included).
