P47 Thunder Bolt from Phoenix Model

Details

The Republic P-47 Thunderbolt was the largest, heaviest, and most expensive fighter aircraft in history to be powered by a single piston engine. It was heavily armed with eight .50-caliber machine guns, four per wing. When fully loaded, the P-47 weighed up to eight tons, and in the fighter-bomber ground-attack roles could carry five-inch rockets or a significant bomb load of 2,500 pounds; over half the weight the B-17 bomber  could carry on long-range missions.

Phoenix Model’s P-47 Thunderbolt ARF is a remarkably accurate rendition of America’s favorite fighter airplane. This 33cc-sized almost-ready-to-fly airplane was designed and crafted to be the most realistic sport-scale ARF on the market. 3-D computer engineering produces parts that fit with absolute precision for straight, strong assembly. Slotted flaps provide function as well as scale appearance, concealing the control horns internally to maintain scale lines. Phoenix Model has thought of just about everything to make set up convenient, including a removable, and large top hatch for battery packs or radio equipment.

Features:

  • Designed for compatibility with both GP and EP flight
  • Top quality balsa/light plywood construction
  • Heavy Duty Electric Retract included
  • Full-depth cockpit and instrument panel and pilot included
  • Eight Scale Plastic Gun included
  • Scale Lens and Mirror included
  • Removable Scale Antenna included
  • Bolt-on two-piece wing for easy transport and setup at the field
  • Removable Top Hatch for easy change lipo battery and set up radio
  • Composite material for super strong and light weight
  • Superb flying characteristics, plus an accurate scale outline
  • High-quality hardware package included

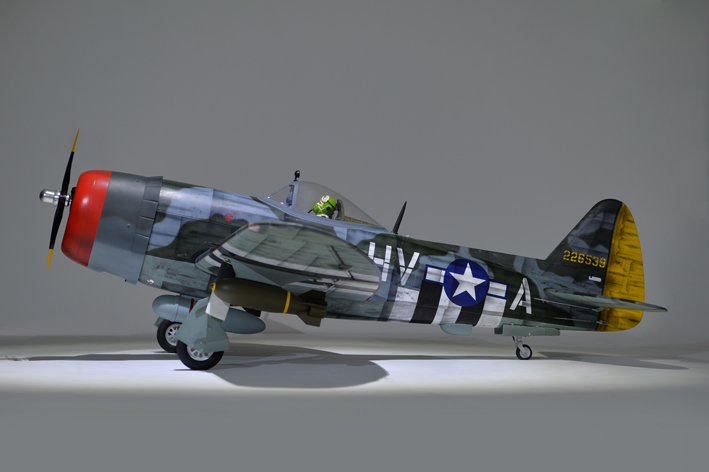

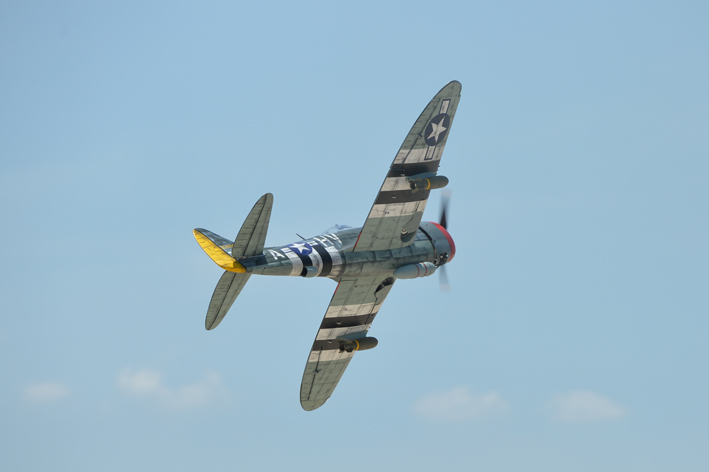

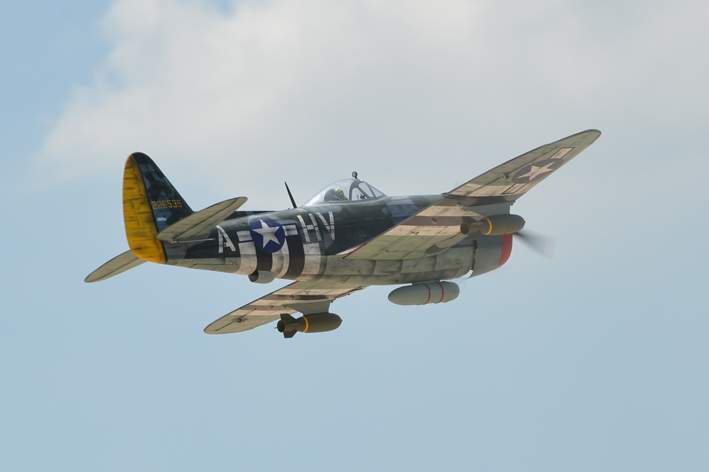

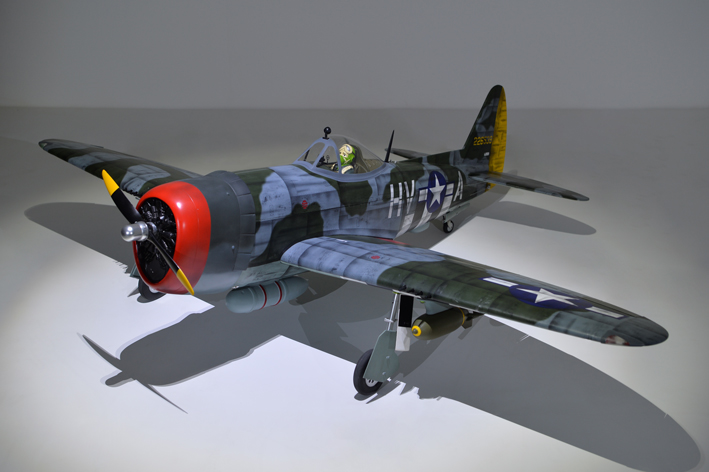

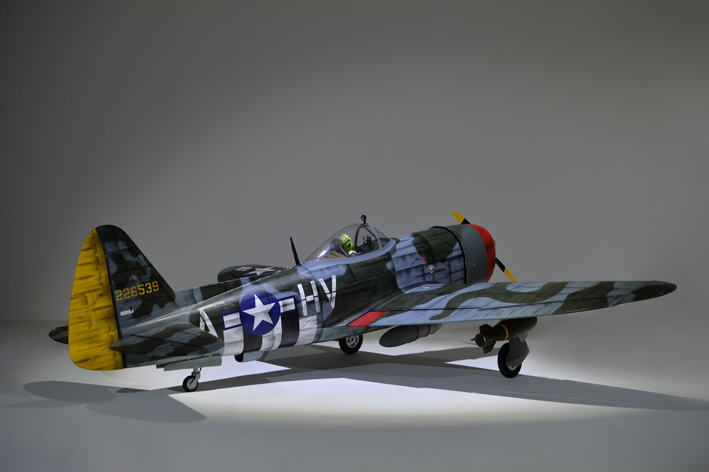

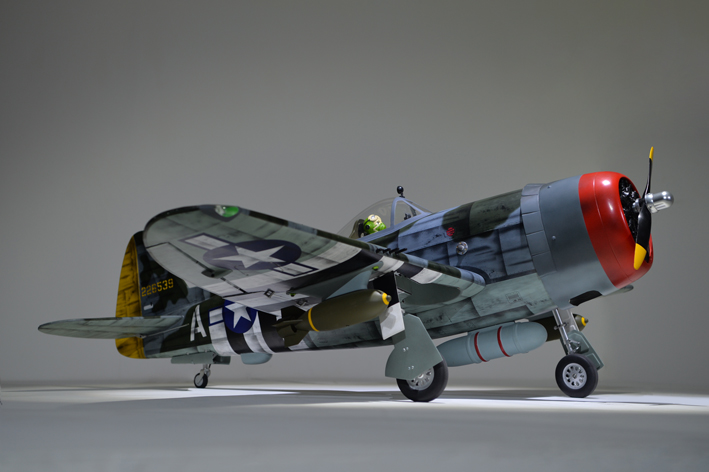

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 2011mm (79.2 in)
Length: 1737mm (68.4 in)

Weight: 9100 g (20.1 lbs)
  • Wingspan: 2011 mm (79.1 in)
  • Length: 1737 mm (68.4 in)
  • Flying Weight: 8900–9100 g
  • Wing Area: 70 dm²
  • Wing Type: NACA airfoils
  • Gear Type: Electric retract gear with CNC suspension metal struts, electric controller box (included)
  • Wheels: Plastic hub included (aluminum hub available separately)
  • Bombs: Plastic bomb not included (available separately)
  • Spinner Size: Scale type (not included)
  • Radio System: Minimum 8-channel radio
  • Servos Required (not included):
    • 2 aileron
    • 2 flap
    • 2 elevator
    • 1 rudder
    • 1 throttle
  • Engine: 35–55cc gas engine (not included)
  • Motor (electric option): Brushless outrunner, 2500 W, 250 KV (not included)
