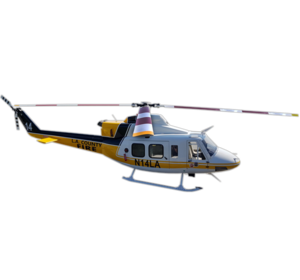

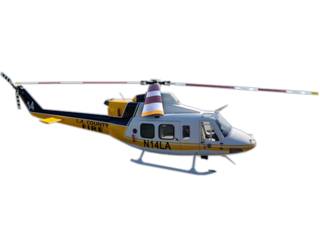

Bell 412 from ROBAN

Details


As with all superscale models, here again, of course, great the processing and the scaled details.
The model comes in the 800 Superscale version with an imposing size of about 1.76m
The proven and reliable HSM-800 mechanism is also used in this model.
This is installed in the dome area, so the rear cockpit area is completely free and is equipped with seats ex works, but can of course be modified individually by anyone.
As with the B 429, the accumulators are in the floor area in the rear cockpit which benefits the center of gravity.


Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Bell 412 in particular but at least we know they do distribute ROBAN.

Wingspan: 1660mm (65.4 in)
Length: 1960mm (77.2 in)

Weight: 8000 g (17.6 lbs)
Body length: 1765mm
Length incl. rotors: 1960mm
Width: 355mm
Height: 510mm
Main rotor diameter 1660mm
Main blade length: 750mm
Fenstron diameter: 160mm
Tail blade length: 70mm
Main shaft diameter: 12mm
Tail shaft diameter: 5mm
Spindle diameter: 8mm
Main blade count: 2
Tail blade count: 9
Drive gear ratio: 1:13.8:4.7
Motor: 1x 750MX 450KV brushless outrunner , 12S capable
Speed controller: 1x 120A brushless, 12S capable
Servo: 3x metal gear cyclic, 1x metal gear tail servo
Battery: 44.4V 5000mAh 35C
Takeoff weight: 8000g
Flight Stabilization: 3 axis flybarless gyro
