Monsun V2 from Robbe

Details

The MONSUN V2 is the successor and the further development of the famous MONSUN. It is a thermal and all-round glider in the compact 3m class with 4-flap wing. The T-tail is hinged backlash-free with a directly installed servo.
The PNP version has servos already installed, electrical connector and original multilocks as wing locks.
The flight characteristics are very good-natured. The MONSUN V2 can be flown as a slow thermal glider or as an all-rounder.
The ready-covered wings are constructed of styro core, glass fiber layers, abachi planking and a carbon fiber reinforced spar. The ratio of weight and strength has been optimally achieved.

The MONSUN V2 is suitable for advanced model pilots.

Features:

  • two-part, ready Oracovered Styro/GfK/Abachi surface with CfK connection
  • continuous sandwich spar (carbon-pine-carbon) for maximum bending stiffness
  • built-in digital Robbe servos FS-277 with ball bearings and metal gearbox (PNP only)
  • ready-made wiring of all servos with MPX 6-pin connectors between wing and fuselage (PNP only)
  • ready ironed rudder flaps with mounted rudder horns
  • painted GRP fuselage with built-in wooden formers and CfK reinforcements
  • powerful Ro-Power Torque 3526 870 K/V outrunner, optimized for 4S (PNP only)
  • large canopy for easy battery change and RC installation
  • ready hinged rudder flaps
  • prefabricated rudder linkages with linkage parts from German production
  • pre-cut servo well and linkage covers
  • anodized 38mm aluminum spinner with straight center section (PNP only)
  • high-strength carbon fiber airscrew 12x8" (PNP only)
  • modern, highly visible design

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

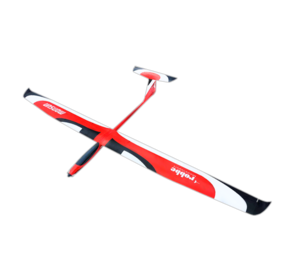

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

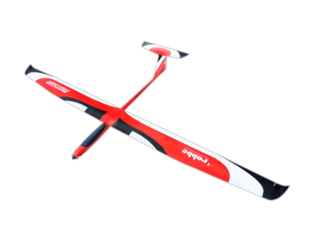

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 3000mm (118.1 in)
Length: 1480mm (58.3 in)

Weight: 2950 g (6.5 lbs)
Wingspan 3000 mm
Flight weight approx. 2950 g
Control: H,S,Q,M,WK
Length 1480 mm
Fuselage: Carbon/FiberGlass
Wings: Styro/Fiberglass/Abachi
Rec. engine: Ro-Power Torque 3526-870kv
Rec. Battery: 4S/4200mAh LiXX
Airfoil: HQ 2,5/9
Drive Type: Electric
