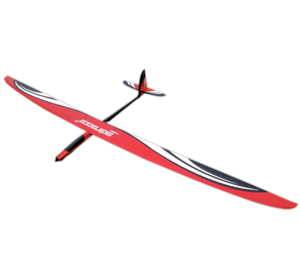

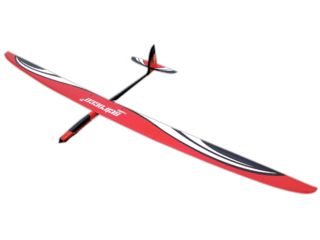

Scirocco XL from Robbe

Details



The new Scirocco "XL" is the enlarged and further developed version of our successful Scirocco "L" model.
At your request, we have developed here a larger version of our Scirocco.
With its 4.5m wingspan, it is much more suitable for thermals than its predecessors. The Scirocco XL is a high performance glider model in modern GRP/CFRP shell construction with very high strength. The H-shaped main spar in sandwich construction made of Airex as support material with laminated carbon fiber fabric has been significantly reinforced. Suitable for the hobby pilot who is looking for an all-round glider with a focus on thermal flight, but still does not want to miss out on light aerobatics like rolls, loops, turns, etc. The elaborate shapely design allows as usual excellent attitude recognition. The wing connection from the center section to the outer surfaces is force-fitted and neatly done by CFRP square spar.

The model is available in two versions (ARF/PNP) and is largely pre-assembled in the PNP version.
The Ro-Power Torque 4356 motor, spinner, Aeronaut propeller and the servos including wiring are pre-installed in the PNP version, so that the construction effort is reduced to a minimum. In the ARF version, you have the option to use individual RC components as you see fit.

Features:

  • large wingspan of 4.5m
  • 3-piece wing
  • solid sandwich CfK/Airex spar
  • significantly increased thermal characteristics
  • continuous ailerons/flaps (no web anymore)
  • Installation of black interchangeable frames for the 6-pin connectors provided in mold (already installed in PNP)
  • Molded WK linkage covers
  • separating groove for Multilock system in form

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 4500mm (177.2 in)
Length: 1710mm (67.3 in)

Weight: 3990 g (8.8 lbs)
Wingspan  4500 mm
Flight weight approx. 3990 g
Control H,S,Q,M,WK
Length 1710 mm
Fuselage Carbon/FiberGlass
Wings Fiberglass/Carbon
Rec. engine Includes
Rec. Battery 4-5S 3700-5000mAh LiXX
Airfoil: HN-354
Drive Type: Electric
