EDGEtra from SIG Mfg

Details

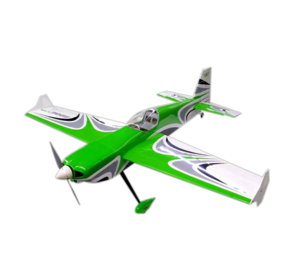

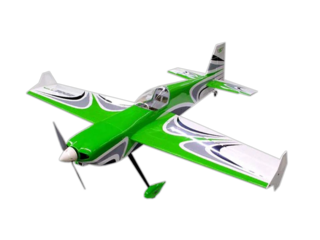

Two airframes consistently top 3D pilots' list of favorite models. Now, you can experience the best of both planes with the SIG EDGEtra EP ARF! The new EDGEtra is a hybrid aircraft that masterfully blends the fuselage of the EDGE with the wings of an Extra.

With numerous additional design enhancements, this plane offers an all-out 3D aerobatics thrill like you have never flown. For over 60 years, SIG Mfg. has made outstanding model aircraft for the RC hobby. In the last decades, SIG has designed some of the best sport aerobatic planes available. We now bring that quality in design and performance to the 3D market with the SIG EDGEtra EP ARF.

Features:

  • Handcrafted Wood ARF
  • CAD Drawn, Laser Cut, and Factory Jig Assembled
  • 2-Piece Wing Design with Aluminum Tube Joiner
  • Fiberglass Cowl and Wheel Pants
  • Carbon Fiber Main Landing Gear
  • Magnetic Battery Hatch/Canopy
  • Covered with UltraCote® (aka ORACOVER®) Premium Film
  • Complete Hardware Pack Included
  • Illustrated Assembly Manual


Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 1524mm (60 in)
Length: 1524mm (60 in)

Weight: 2722 g (6 lbs)
  • Wingspan: 1524 mm (60 in)
  • Wing Area: 43.5 dm² (675 sq. in)
  • Length: 1524 mm (60 in)
  • Flying Weight: 2495-2722 g (5.5 – 6 lbs)
  • Wing Loading: 56.4-61.5 g/dm² (18.8 – 20.5 oz/sq. ft)
  • Radio System: 4-Channel Transmitter & Receiver
  • Servos: 4x High Torque Mini Servos
  • Motor: Brushless Outrunner Motor
  • Power: 600 – 1200 Watts
  • KV Rating: 550 – 800 KV
  • ESC (Electronic Speed Control): 75A Brushless ESC
  • Battery: 4S (14.8V) LiPo (4000 – 5000 mAh)
