Goblin Kraken 580 from Sab Avio

Details

It's the first medium-sized goblin to accept rotor blades up to 600 mm!

The Kraken 580 works incredibly well with a mini cyclic servo (torque in excess of 8 kg-cm).

Kit includes servo mounts for mini-servos. Full-size servo mounts available separately.

The Kraken 580 uses the same battery plates as the Kraken 700.

The motor pulleys are series H0015-xx-S, already in production.

Minimum motor shaft length is 26 mm.

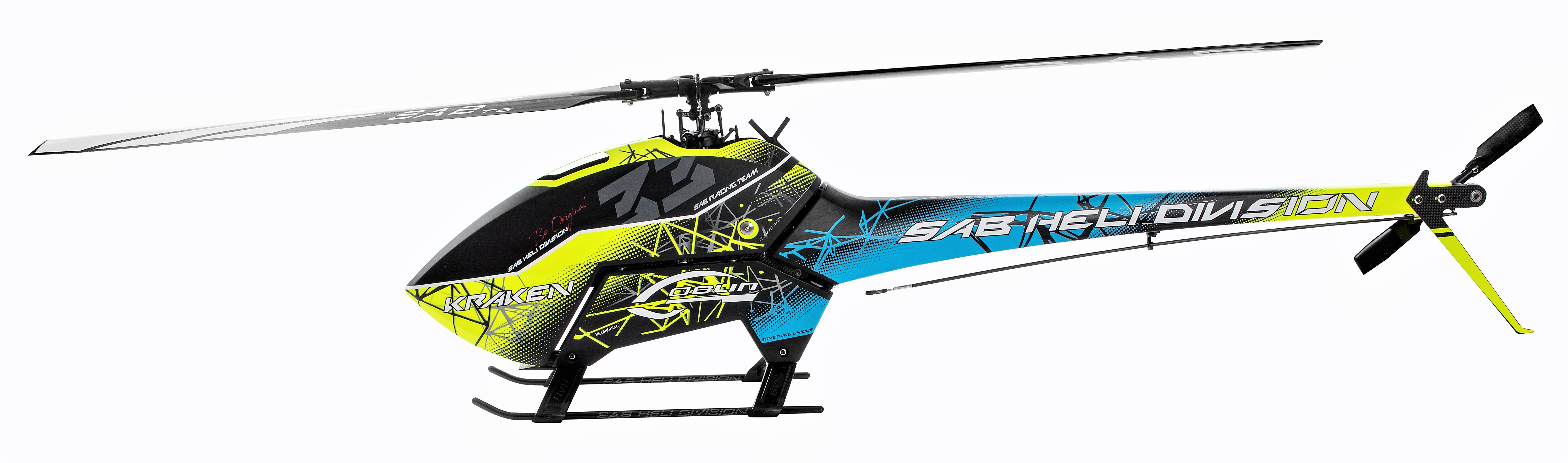

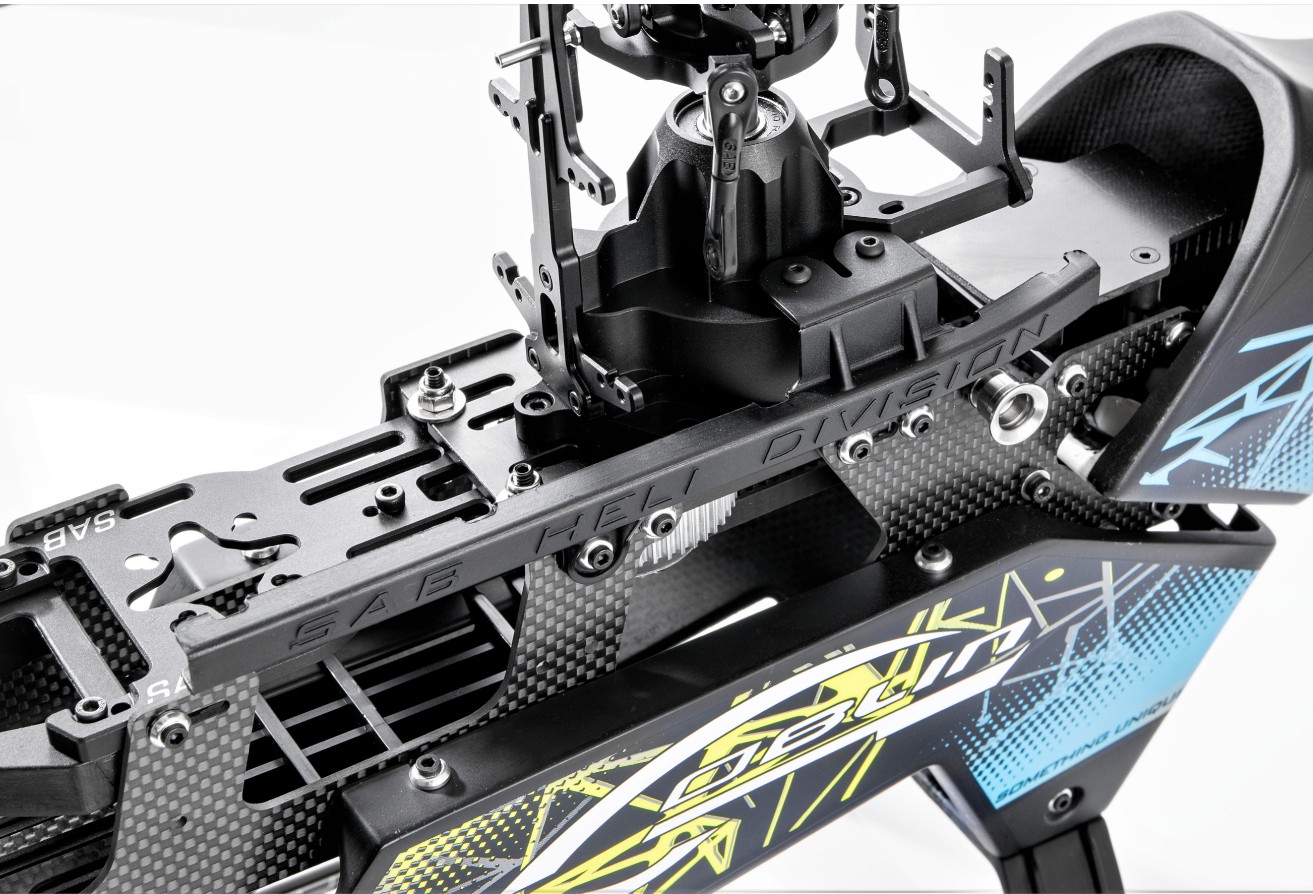

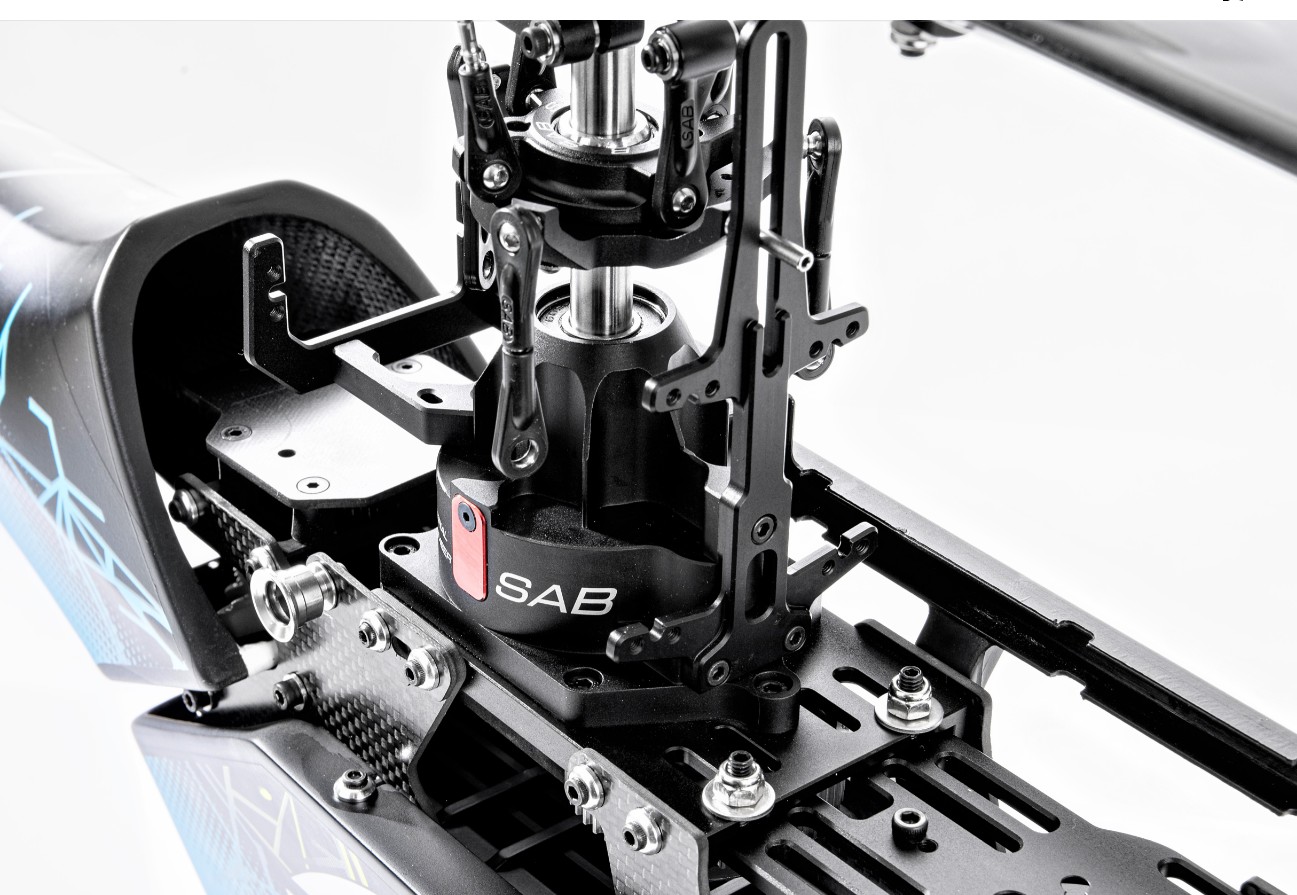

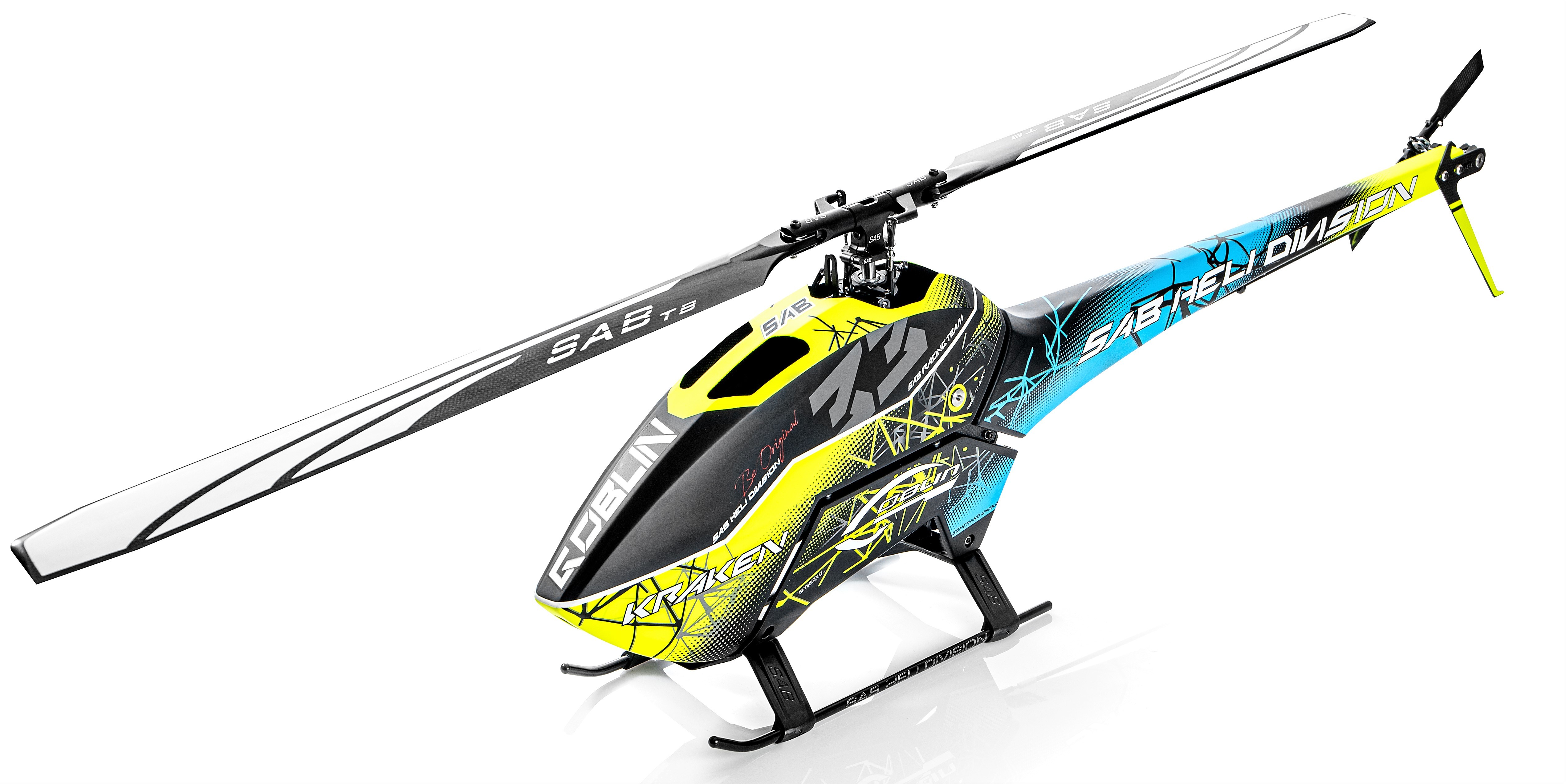

Pictures

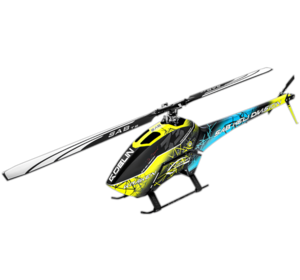

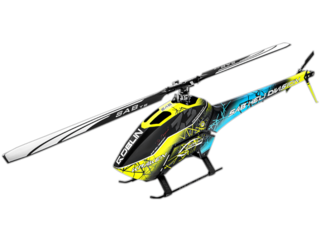

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Goblin Kraken 580 in particular but at least we know they do distribute Sab Avio.

Where to buy

USA
Helidirect
check web site
Ship to: USA

United Kingdom
Jettstreamuk
check web site
Ship to: United Kingdom

France
Turbines RC
check web site
Ship to: Worldwide

UAE
Gonzo Hobbies
check web site
Ship to: UAE

Wingspan: 1270mm (50 in)
	Length: 1270mm (50 in)
Weight: 1760 g (3.9 lbs)

See Specs & Tech Details

AIRFRAME weight: 1760gr ( with blades, no battery, no electronics )
Main blade length: 550mm to 600mm
Tail blade length: 95 to 105 mm
Main rotor diameter: 1270 mm (with 570 mm blades included)
Tail rotor diameter: 260 mm (with 95 mm tail blades included)
Cyclic Servos: mini size 35 mm (standard size 40mm option part H1217-S, H1207-S)
Tail Servo: standard size 40mm.
Main Rotor ratio : 11.5 to 8.6 :1 ( 22T included: 9.4:1)
Tail Rotor ratio : 5.3-4.9:1 ( 23T included: 4.9:1 )
Typical motor : 4025 series, 6S 1000-1200 Kv, 12S 500-600 Kv Minimum Shaft Length 26mm (Recommended 6mm Shaft Dia)
Typical speed controller: 6S 120-140 A, 12S 100-130A
Battery size: 6S 5000/5800 mAh, 12S 2600/3200 mAh.
