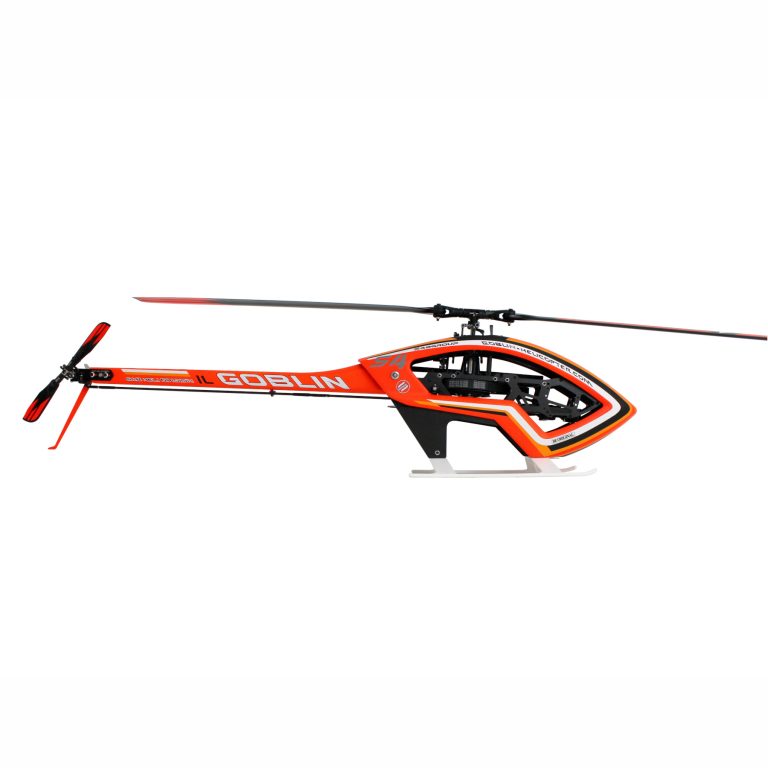

ILGoblin Pro 520 from Sab Avio

Details

SAB ILGoblin PRO 520 is based on the design of the Goblin Raw 500 with many shared spare parts, but with several important updates and improvements, including new 520 mm main blades and 82 mm tail blades.

Features:

  • ilGoblin Pro Canopy/Boom shape
  • New, stronger one way bearing
  • New, stronger motor belt transmission
  • New, smoother tail belt transmission
  • Full Size tail servo compatible
  • 520mm main blades/82mm tail blades
  • The model supports a rear-inserting battery tray, allowing you to installbatteries without ever removing the canopy.

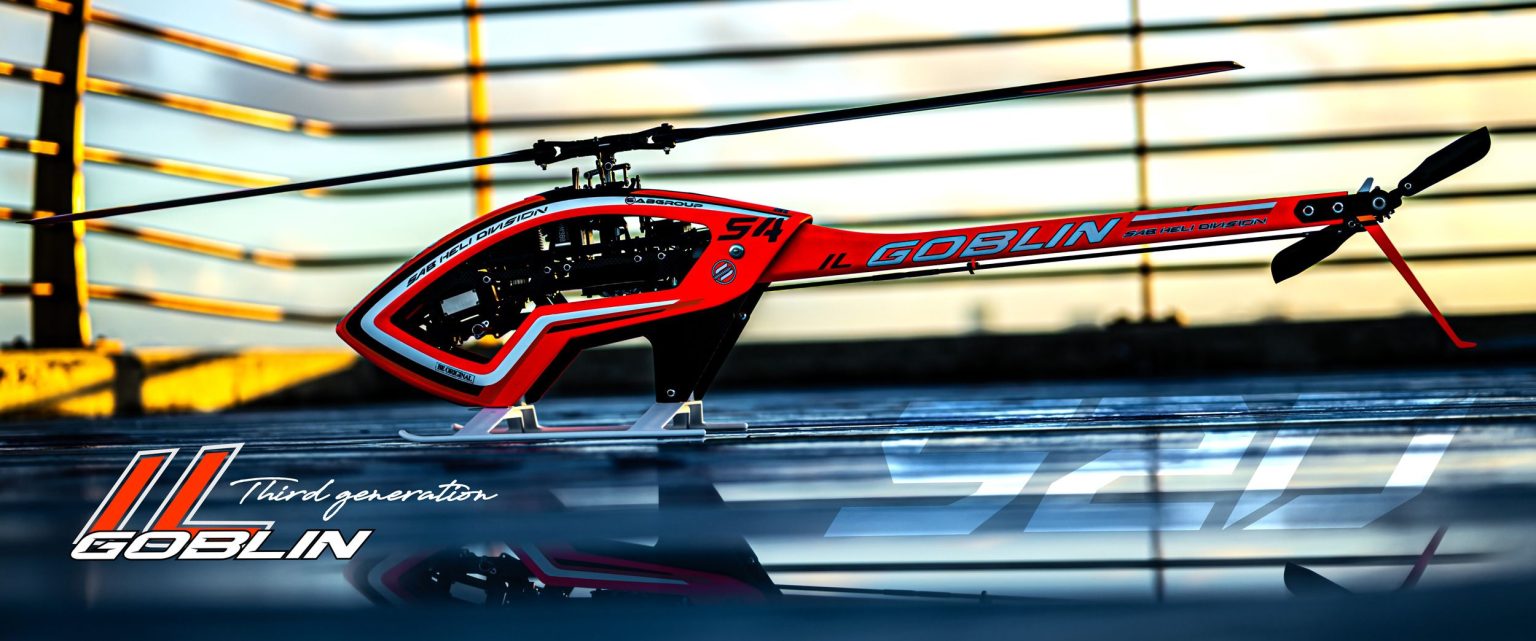

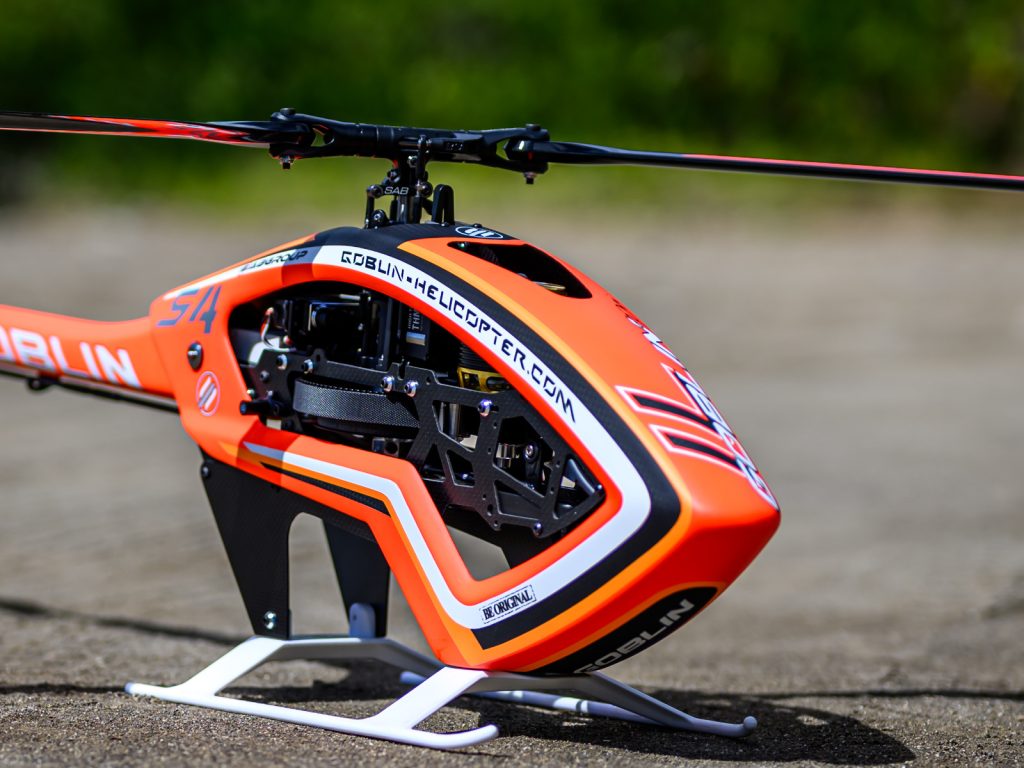

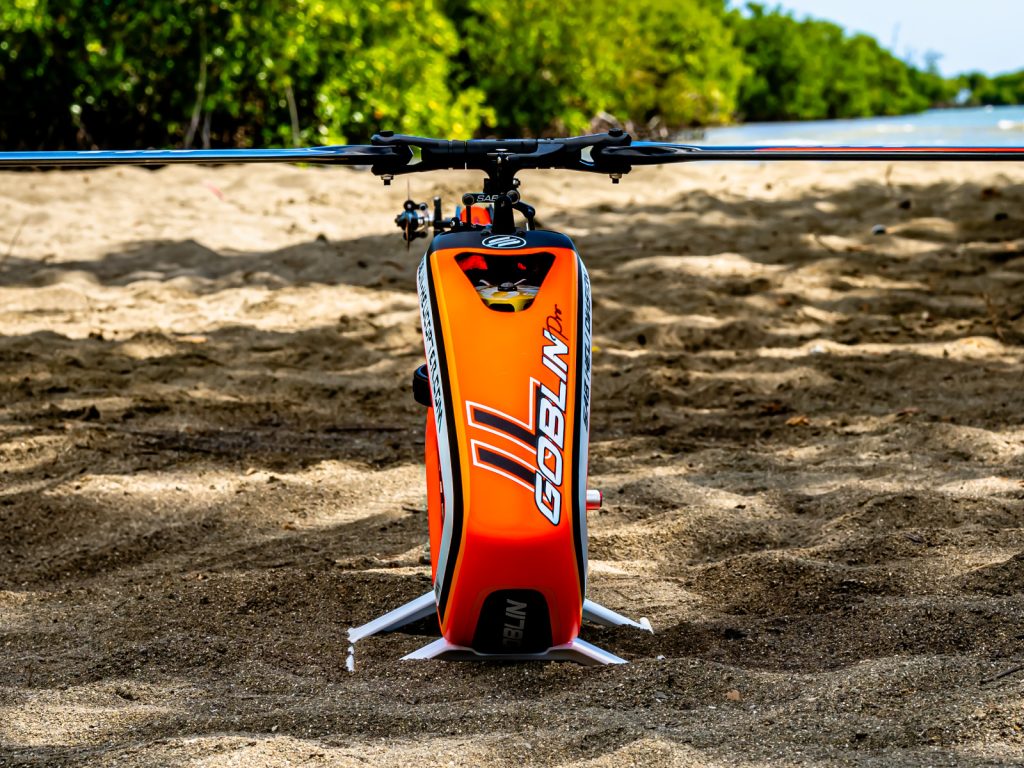

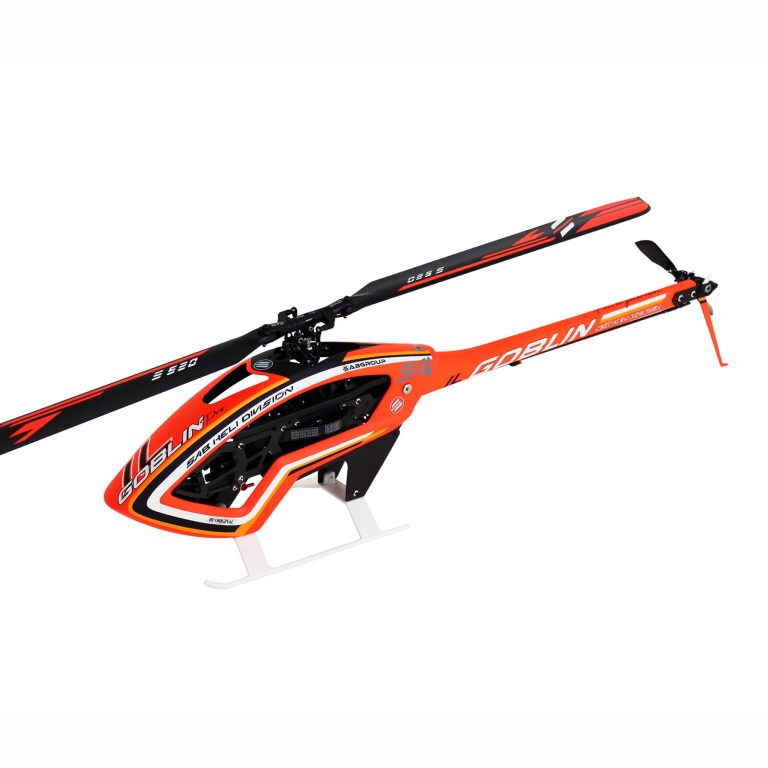

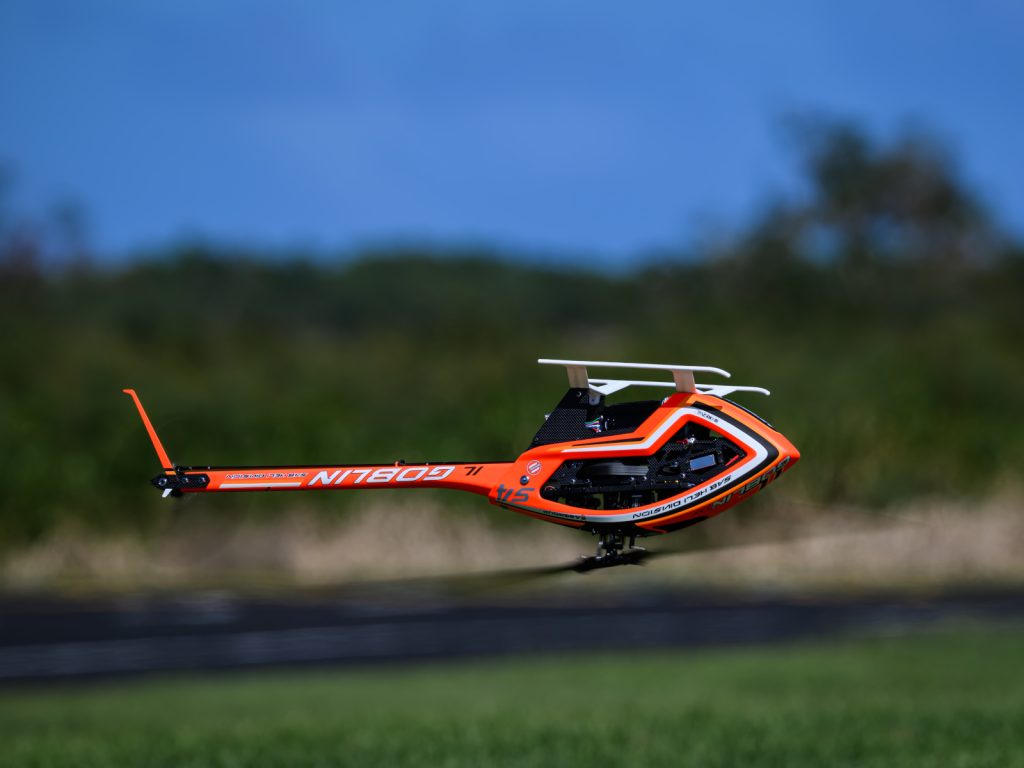

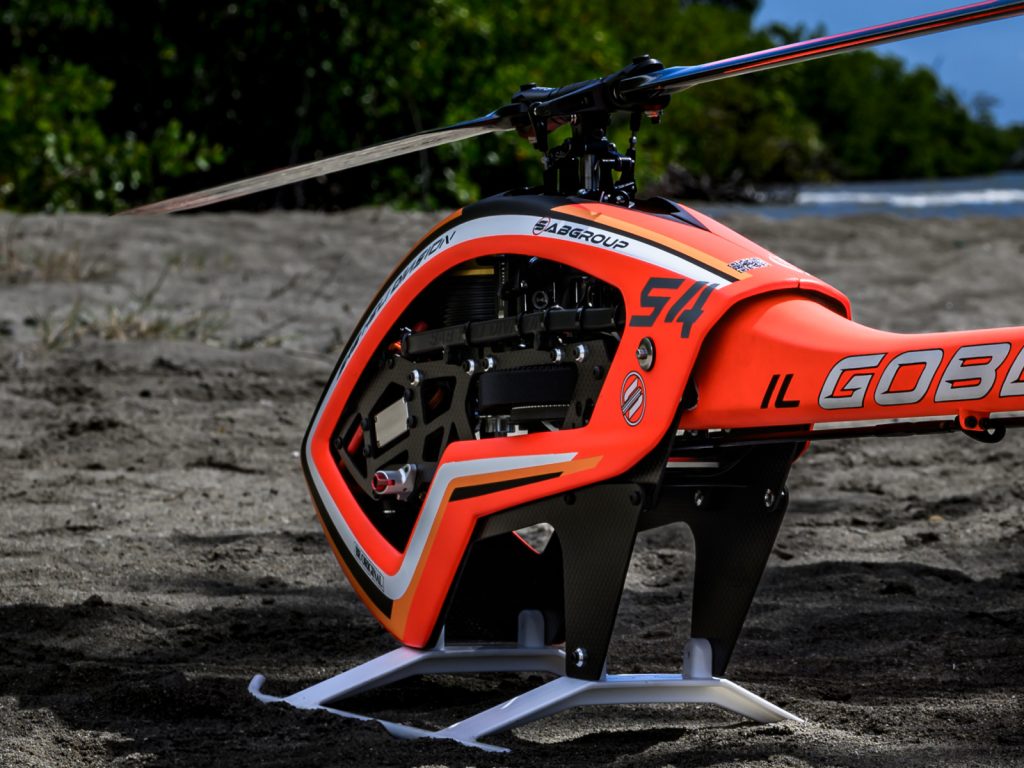

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

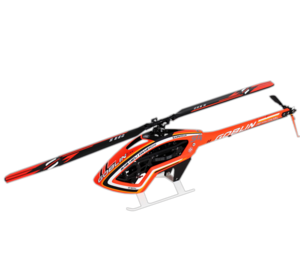

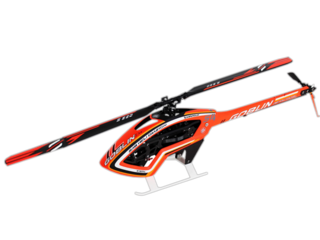

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 1220mm (48 in)
Length: 1220mm (48 in)

Weight: 1894 g (4.2 lbs)

  • Airframe weight: 1894 gr (no blades, no battery, no electronics)
  • Main rotor diameter: 1220 mm (with 520 mm main blades)
  • Main blade length: 480 to 530mm
  • Tail rotor diameter: 222 mm (with 82 mm tail blades)
  • Tail blade length: 80 to 85 mm
  • Cyclic Servos: Mini size 35mm
  • Tail Servo: Mini size 35mm/Standard size 40mm
  • Main Rotor Ratio: 1: 4.47 to 5.88 (17T Motor Pulley Includes)
  • Tail Rotor Ratio: 3.88.1
  • Main shaft: 8 mm, Tail shaft: 5 mm
  • Molded carbon tail boom
  • Typical motor: 6S, 800/900 KV
  • Battery room: 48x48x150mm

Recommended components:

  • Moteur: Scorpion HK5-4020-850kv, Xnova Lightning 4020-850kv
  • ESC: Scorpion Tribunus III 06-110A with Fan
  • Servos:
    • 3x Cyclic Servos: KST X15-1208 HV Mini Cyclic Servo ou KST X15-1809 HV Mini Cyclic Servo
    • Mini Tail Servo: KST X15-755X HV Mini Tail Servo ou KST X15-855X HV Mini Tail Servo
  • Batteriy: Gens Ace 6S 3700mAh, Gens Ace 6S 4000mAh ou Gens Ace 6S 4500mAh
