Havok Racer 1000 from Skynetic

Details

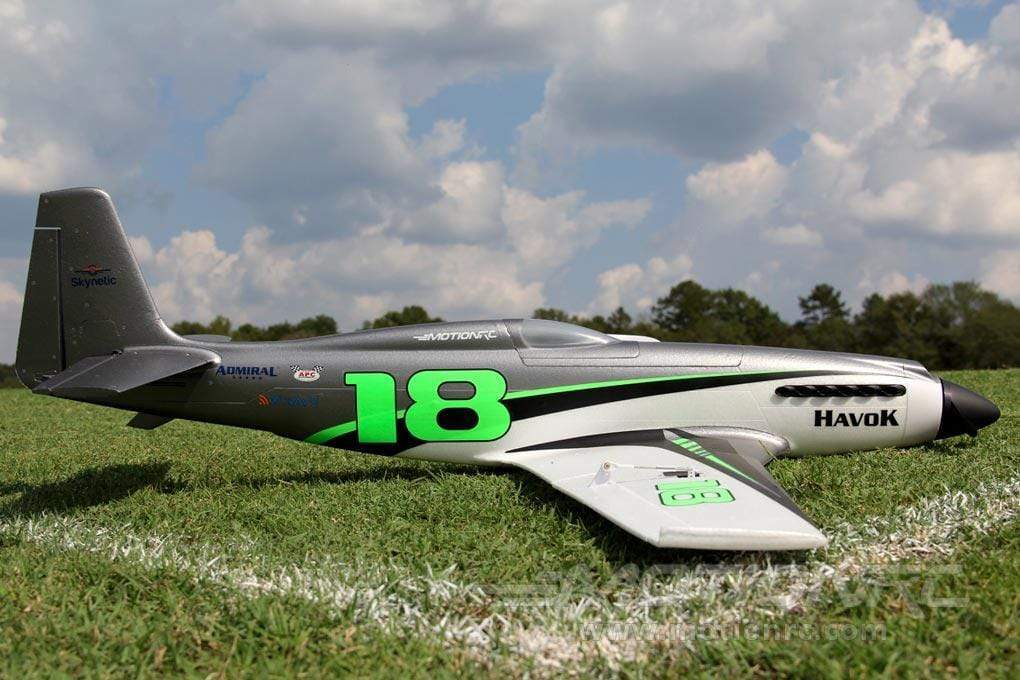

The Skynetic 1M Havok Racer is a thrilling addition to the popular parkracer category. Typified by sleek lines and lighter wing loading afforded by hand launching, parkracers often reference the Unlimited Class Reno Racers of highly modified P-51 Mustangs, Sea Furys, and other classic warbird airframes. The Skynetic 1M Havok Racer is a 100mph capable aircraft on a 4S battery for 3-7 minutes of balanced flight. Created as a well balanced aircraft for both high speed and slow speed, the Havok Racer is easy to hand launch and simple to land. Delivered in a bold graphite and green paint scheme, the Skynetic Havok Racer is an ideal club class race plane. It is the perfect platform for customization and is best enjoyed flown in groups against your friends

Rather than a lightweight straight line race plane, the Havok is adequately reinforced in necessary areas to sustain the loads of aggressive "bank and crank" flying through a racing circuit.  Carbon and fiberglass reinforcements in its one piece wing and flying surfaces provide strength, with digital metal gear servos giving positive authority while racing your friends. The Havok Racer's large rudder also rewards pilots with a wide flight envelope and precision flying. From long speed runs to short field acrobatics, the Havok Racer has the weight to penetrate stably through wind but can still be flown to a near standstill with only a mild stall.

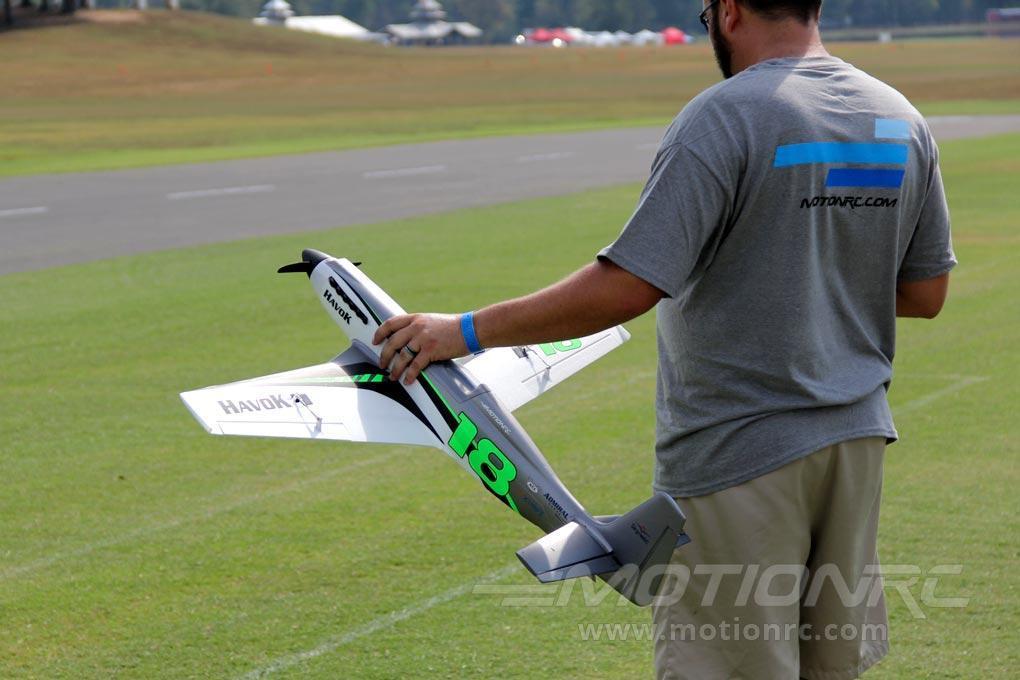

Special consideration was taken to ensure the Havok Racer is approachable for pilots new to hand launch and belly landed race planes. Hand launching can be done overhand or underhand with three quarter throttle and a firm toss. The model doesn't exhibit the scary "torque roll" usually associated with similar racers, but instead flies out straight and level from your grip. In the landing pattern, the Havok Racer's excellent slow speed threshold eliminates the characteristic snapping stall that often threatens other race planes.

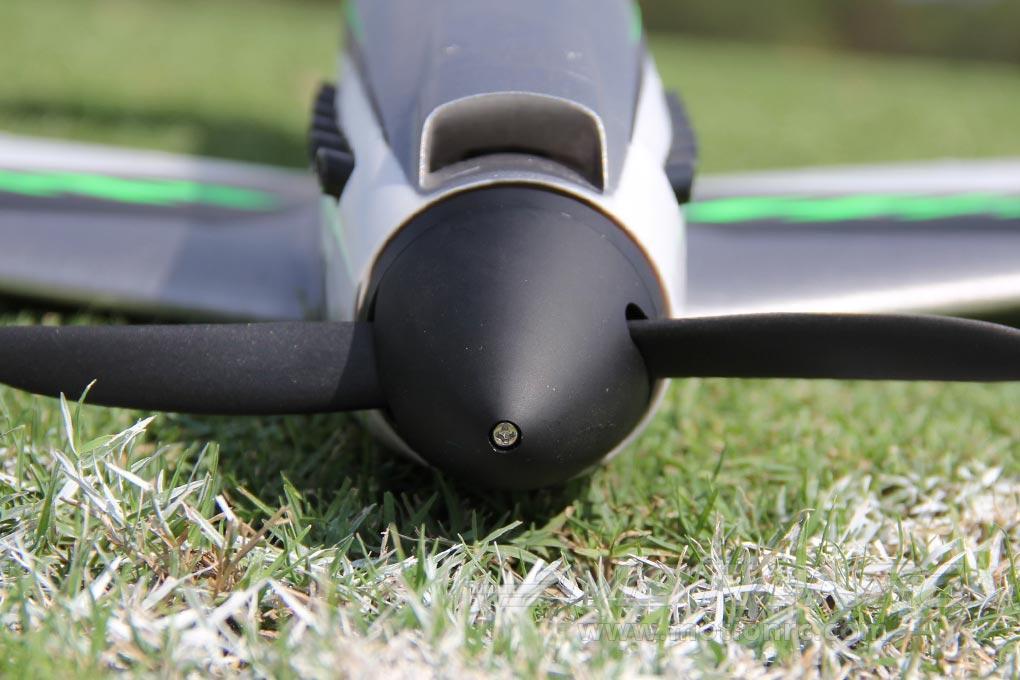

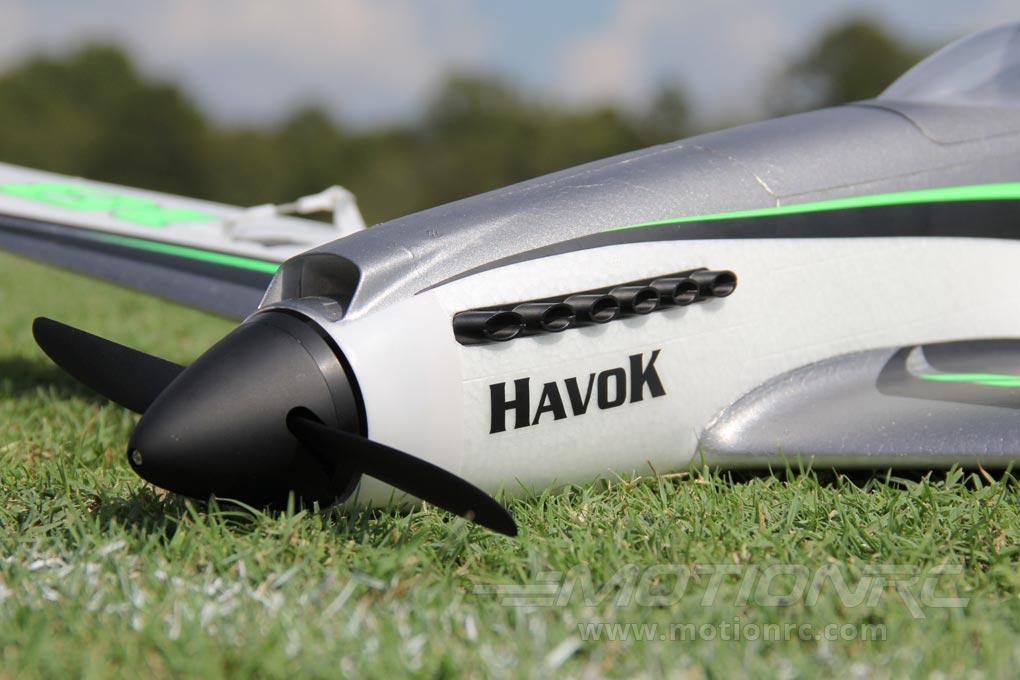

The model's upward facing aileron servo horns are protected from damage during landing, and the forward cowling and belly intake are also capped in ABS plastic to protect against scrapes during landing. The matte black anodized aluminum spinner is factory balanced for extended service life.

The Skynetic 1M Havok Racer also provides ample space for a gyro stabilized receiver, such as the Admiral RX600SP 6-Channel DSMX Compatible Receiver with Stability Plus Gyro. Pilots can opt for a lighter 4S 2200mAh battery in low wind conditions or power up with a 4s 3000mAh battery for heavier throttle usage or longer flight times.

Features

  • Clear canopy that can fit an FPV camera
  • Metallic Graphite paint with Hyper Green decal accents. High contrast scheme to aid orientation
  • Aluminum spinner
  • Capable of 100mph top speed
  • Easy to hand toss
  • All 9g metal gear servos and brass ball linkage
  • Plastic capped forward fuselage for dent resistance
  • Reinforced motor mount and main wing, in case pilots want to experiment with mods
  • No glue assembly
  • Functional forehead intake (reminiscent of certain Reno Racer Unlimited Class Mustangs)
  • Full spare parts availability

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Havok Racer 1000 in particular but at least we know they do distribute Skynetic.

Where to buy

Netherlands
Motion RC B.V.
check web site
Ship to: Europe
USA
Motion RC LLC
check web site
Ship to: USA

Wingspan: 1000mm (39.4 in)
Length: 880mm (34.6 in)

Weight: 920 g (2 lbs)
Model Scale N/A
Wingspan 1000mm / 39.37in
Length 880mm / 34.64in
Weight 920g / 32.45oz
CG (Center of Gravity) Refer to manual
Power System Admiral Brushless 3542-1600kV motor
Electronic Speed Control Admiral 80A with XT60 connector (included)
Propeller / EDF 7.8x7 2-Blade (included)
Servos 4x 9g Digital Metal Gear Standard Servos
Landing Gear None
Required Battery 4 Cell 14.8V 2200-3000 mAh LiPo battery with XT60 connector (required)
Required Radio 4+ Channel (required)

Includes

  • Skynetic Havok Racer 1000mm (39") Wingspan - PNP
  • Admiral brushless 3542-1600kV motor
  • Admiral 80A ESC with XT60 connector
  • 4x 9g digital metal gear servos

Requires:

  • 4 Channel radio - select a minimum 4 channel radio
  • 4 Channel receiver - select a minimum 4 channel receiver
  • 4 Cell 14.8V 2200-3000 mAh LiPo battery with XT60 connector

Variants

SKY1000-001
Havok Racer 1000 (White-green-grey)
