Mario Fold 8 from Speedy Bee

Details

The MARIO is an 8" foldable BNF drone with long flight time and ability to carry heavy load. The innovative front and rear folding structure design only has one-third of the original volume after folding, which improves the portability of large-size drones.

Besides the portability, the frame arm is fixed by a single M10 screw group, which is more convenient to disassemble and assemble. It has the stability of the non-folding drones' structure and avoids the virtual position between the arm and the fuselage, which might affect flight safety. The new mounting method for antenna reduces the chance of 03 damage. The extended battery position design is more friendly to large-capacity batteries and improves the flight time of the drone.

Features:

  • The innovative front and rear folding structure design of the drone significantly enhances portability by reducing its volume to one-third of its original size when folded. The high-strength 7075 aluminum alloy CNC frame head with metal side air intakes improves durability and aesthetics, while accommodating the DJI 03 Air Unit for a wide-angle field of view.

  • The camera mount is versatile, compatible with 19mm and 20mm wide cameras, and the all-in-one adjustable antenna mount secures GPS, VTX, and receiver antennas with a simple adjustment mechanism. The CNC mount for DJI 03's antennas supports both SMA and DJI installation methods, with options for extended range capabilities.

  • A large-sized GPS mount ensures fast and stable satellite acquisition, and the cleverly placed VTX antenna avoids GPS obstruction. The detachable stack side protection supports standard installations, improving flight reliability and heat dissipation. The elongated body design with non-slip silicone gel accommodates two sets of 21700 battery packs, and the flexible power cable routing reduces weight and resistance.

  • Equipped with the SpeedyBee F722 V3/BL32 50A stack, featuring direct plug connections and built-in Bluetooth tuning, maintenance and tuning are simplified. The HD version supports up to 4K/120fps recording with the DJI 03 Air Unit, offering clear and low-latency FPV footage. Powered by customized 2807 1050KV brushless motors and 8-inch three-blade propellers, it boasts a superior power-to-weight ratio.

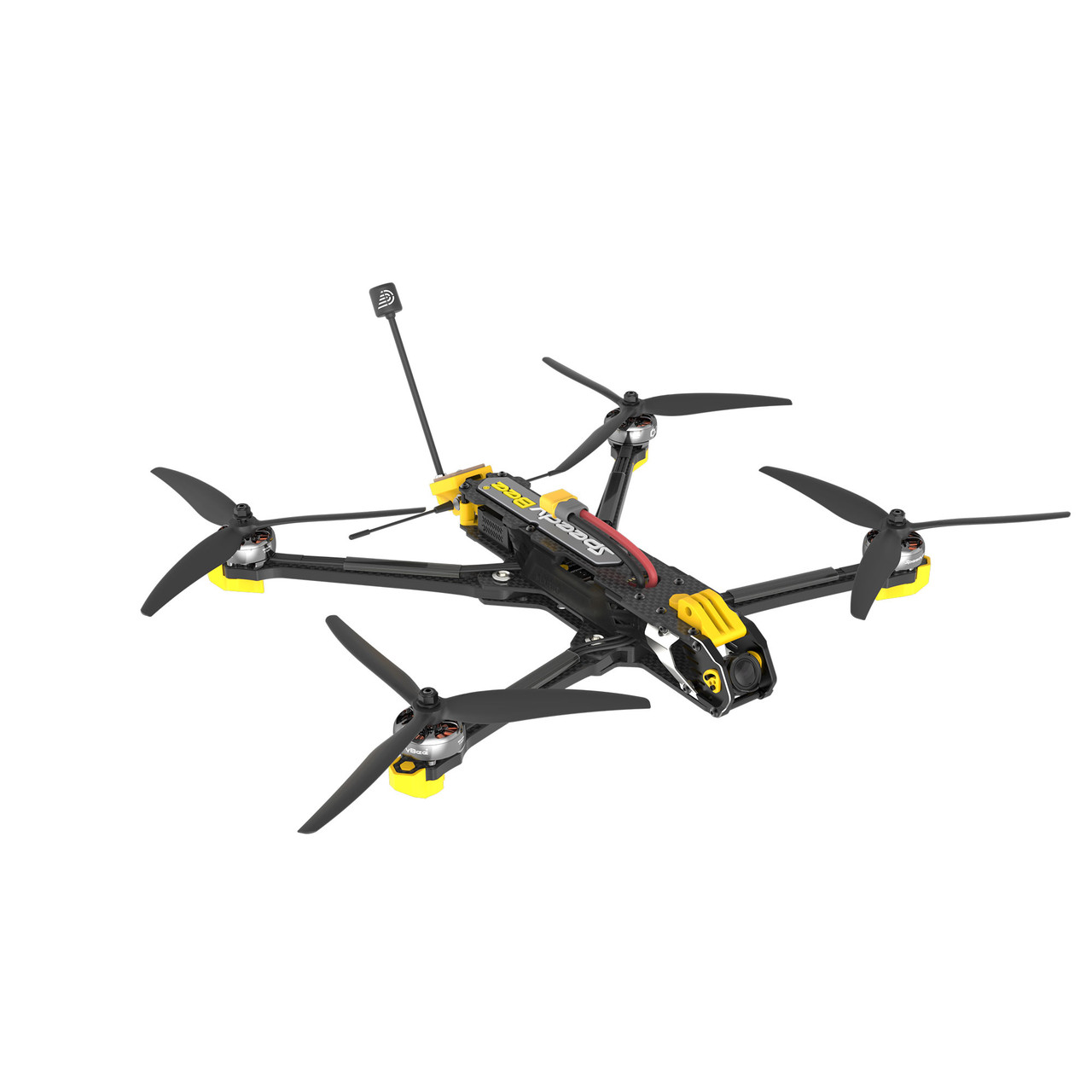

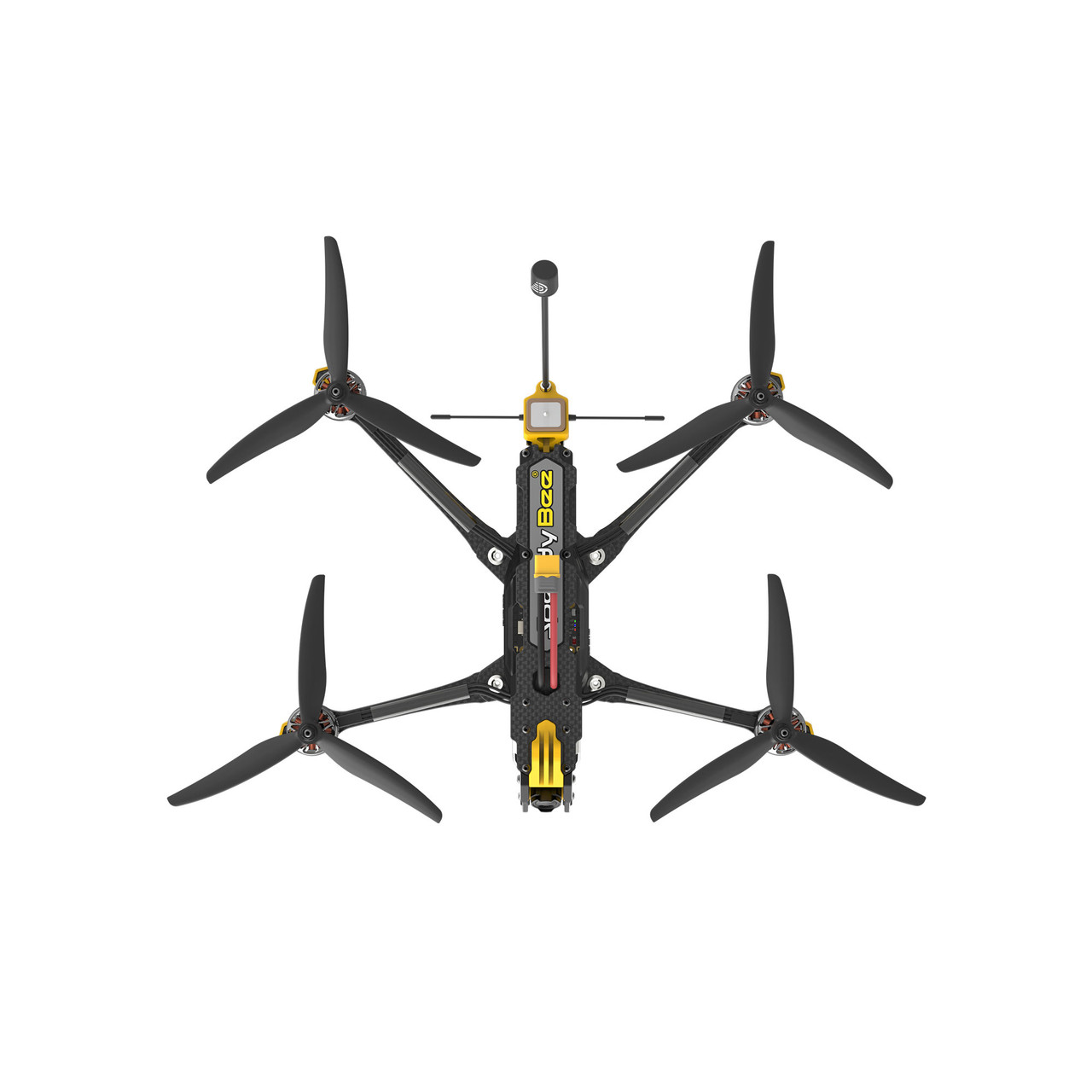

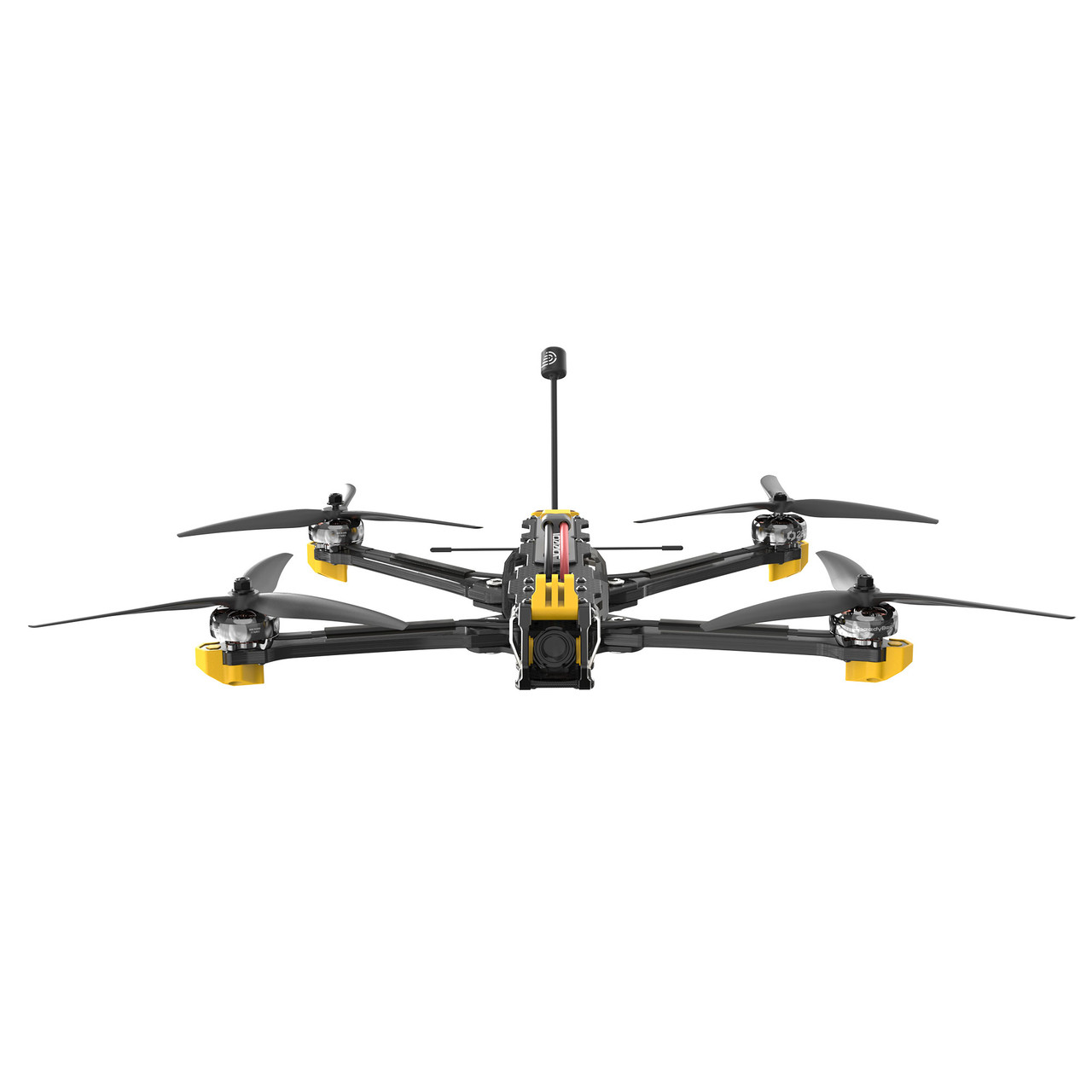

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Mario Fold 8 in particular but at least we know they do distribute Speedy Bee.

Where to buy


Wingspan: 360mm (14.2 in)
Length: 365mm (14.4 in)

Weight: 695 g (1.5 lbs)
Wheelbase DC FLOD:360mm Front:305mm Rear:272mm
Weight MARIO Fold 8 DC O3 Kit 695g
Top plate thickness 2.5mm(T300 3K)
Middle plate thickness 2.5mm(T300 3K)
Bottom plate thickness 3mm(T300 3K)
Arm thickness 7mm(T300 3K)
Camera Screw 7mm
3D printed par Yellow TPU
Stack side plate PC
Battery Anti-skid Mat Silicone Resin
Motor circlip spacing 9mm
Propellers 7-8Inch
Mounting holes for motors 19mm
FC mounting hole 30.5x30.5(M3) & 20x20mm (M3)
Drone head 7075 CNC aluminum alloy
Aluminum standoff 7075 M3*22mm (5mm&4.6mm)
Internal installation height 22-31mm
Antenna Mounting SMA OR MarioDJI O3 Ant CNC GPS:BZ251 25*25*8mm
