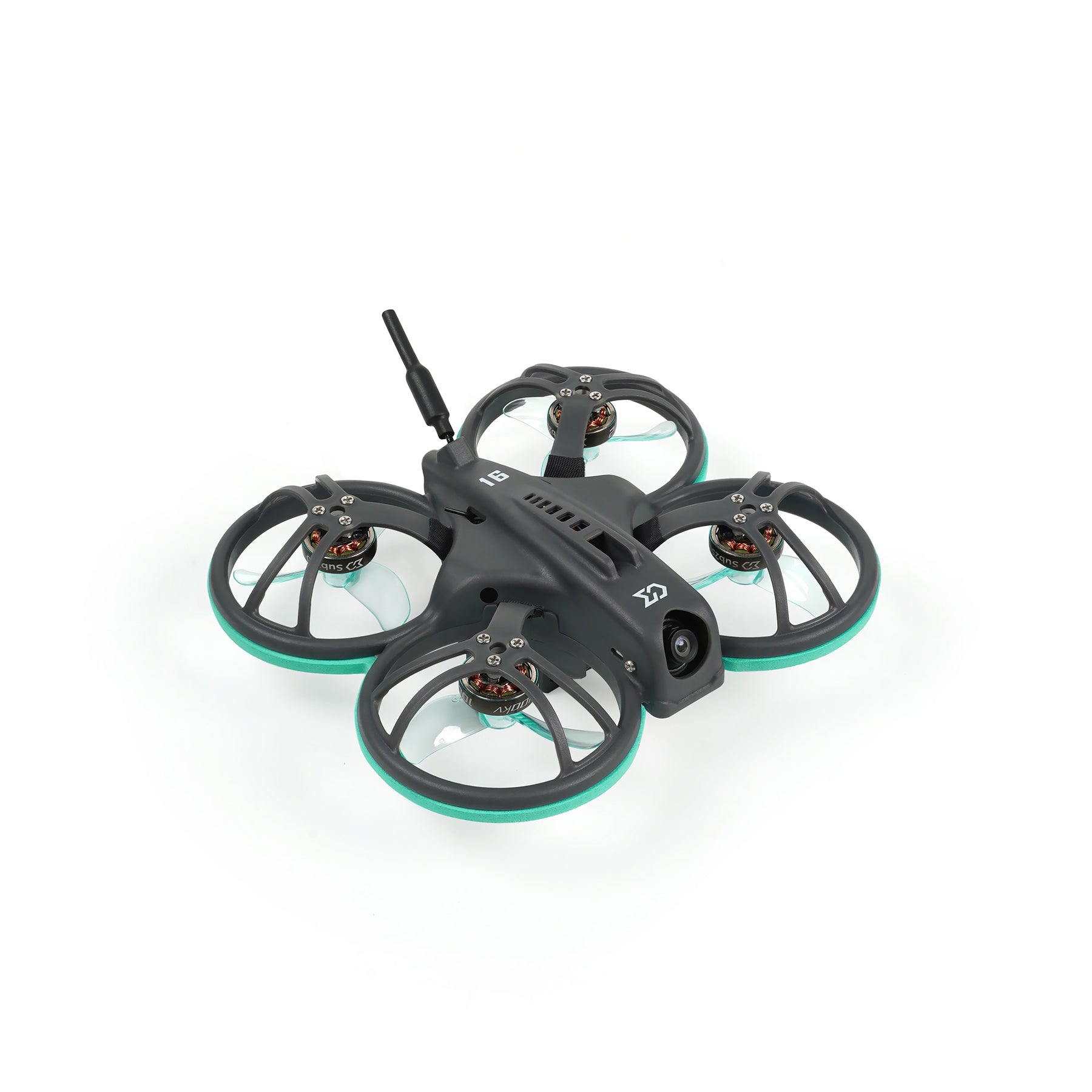

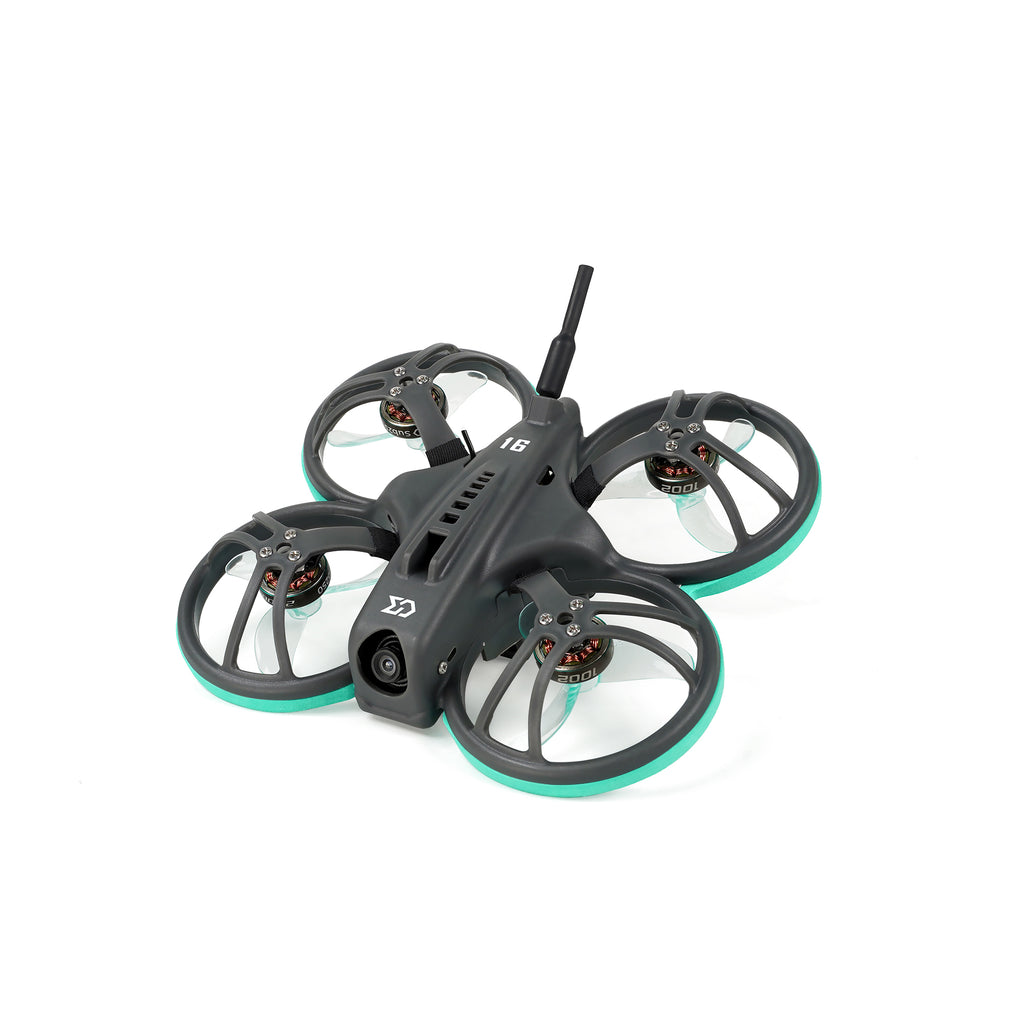

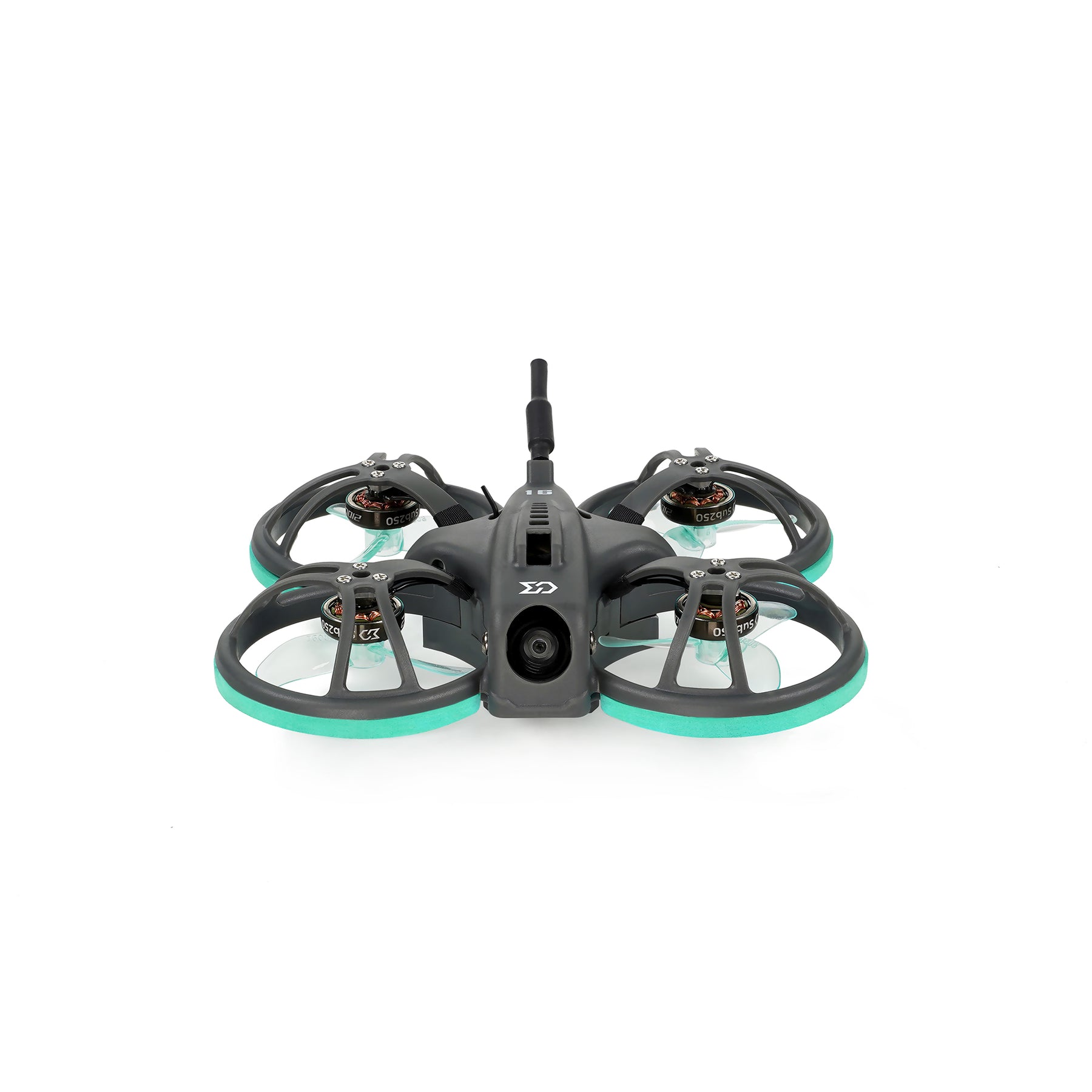

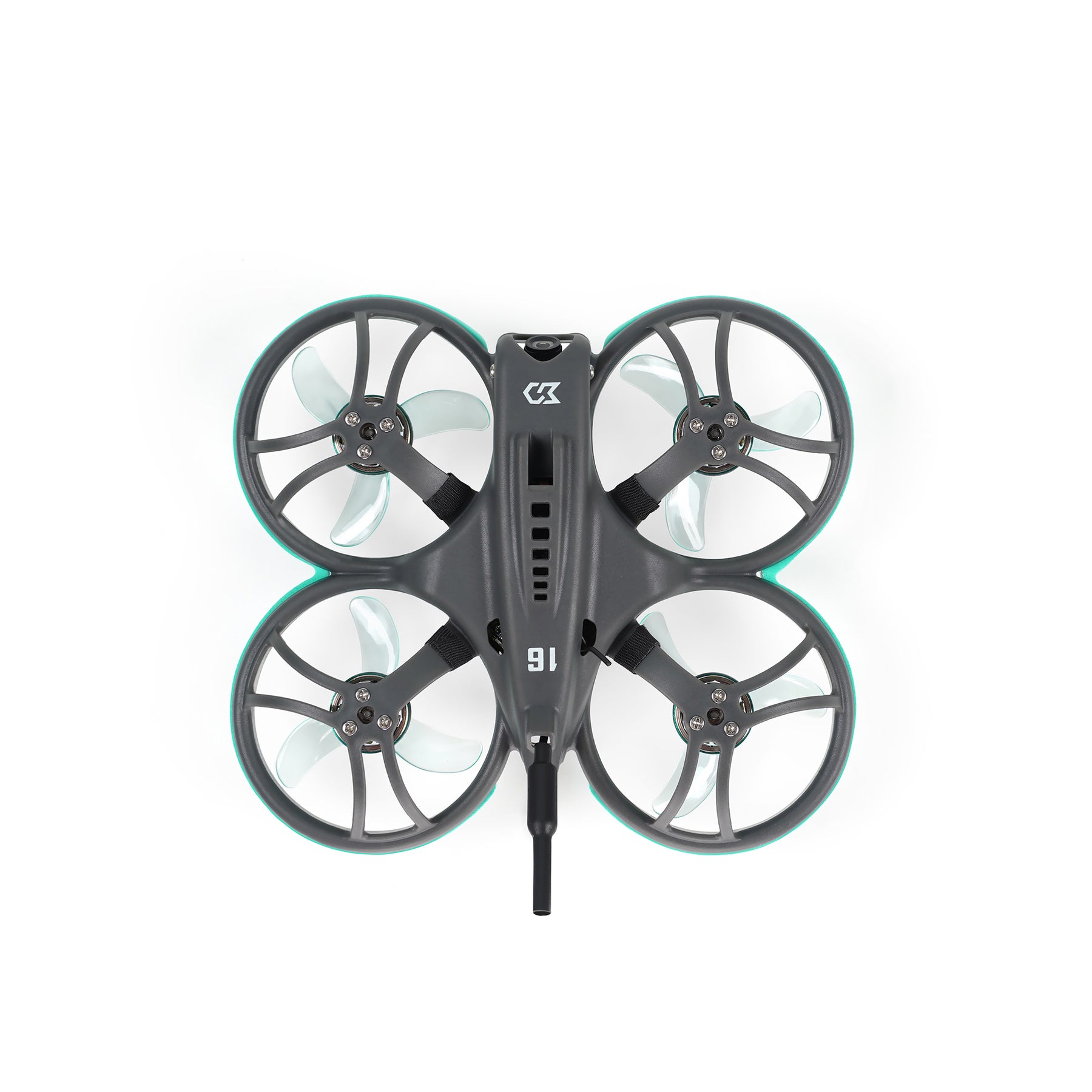

Whoopfly16 from Sub250

Details

As the name (Whoopfly16) suggests, this is an inverted pusher with a protective frame FPV drone. You will not feel unfamiliar with this layout, 2.5 inches? 3 inches? Or 3.5 inches? No! We strongly launched the 1.6-inch whoop drone. It combines the characteristics of a short wheelbase for smooth indoor flight and the protection ring has strong protection characteristics. The one-piece injection-molded protective ring frame makes it safer to fly no matter whether you are a novice or an experienced pilot. Cooperate with the popular 1002 motor to get a strong power experience. Whoopfly16 has a very high degree of integration FC/ ESC/ELRS receiver including analog video transmission, which will be integrated into one piece. Whoopfly16 can adapt to mainstream 1s image transmission (Analog, HD Zero /AVATAR). The analog video transmission will be equipped with an Ant eco lens from Caddx, and the elevation angle of the lens can be adjusted upwards by 30 degrees. With the latest 1s 530mah battery, the battery life can reach 4 minutes and 30 seconds.

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Whoopfly16 in particular but at least we know they do distribute Sub250.

Wingspan: 75mm (3 in)
Length: 75mm (3 in)

Weight: 39 g (1.4 oz)
  • Frame: WF16
  • Wheelbase size: 75mm
  • Flight control system: Redfox A1 F4 5A 4in1 1S AIO FC
  • MCU: STMF411
  • IMU: ICM42688-P
  • OSD: BetaFlight OSD w/AT7456E chip
  • ESC: Redfox A1 4IN1 5A ESC (Included )
  • VTX: Hd Zero whoop lite
  • Lens: Hd Zero nano lite camera
  • Propeller: Gemfan 1608-3
  • Antenna: 5.8g copper tube antenna 70mm
  • Weight: 39.2g
  • Receiver: ELRS (SPI) / TBS Nano RX
