Synergy 696 from Synergy R/C Helicopters

Details

Features:

  • CNC machined 6061-T6 aluminum and Delrin components
  • 2mm Carbon Fiber frame components
  • 182mm full head width
  • Extra wide head block for quick cyclic response and high stability
  • Machined Delrin helical main drive for quiet, efficient power transfer
  • Machined Delrin helical tail drive
  • One-piece aluminum front tail transmission
  • Efficient torque tube tail drive
  • 12mm main shaft with triple support radial bearings
  • 10mm head axle with pivot rocker and quad progressive dampers
  • 6mm tail shaft with HD tail hub and HD grips
  • Turnbuckle linkages for quick/precise adjustments
  • CG adjustable Quick-Change locking battery tray system

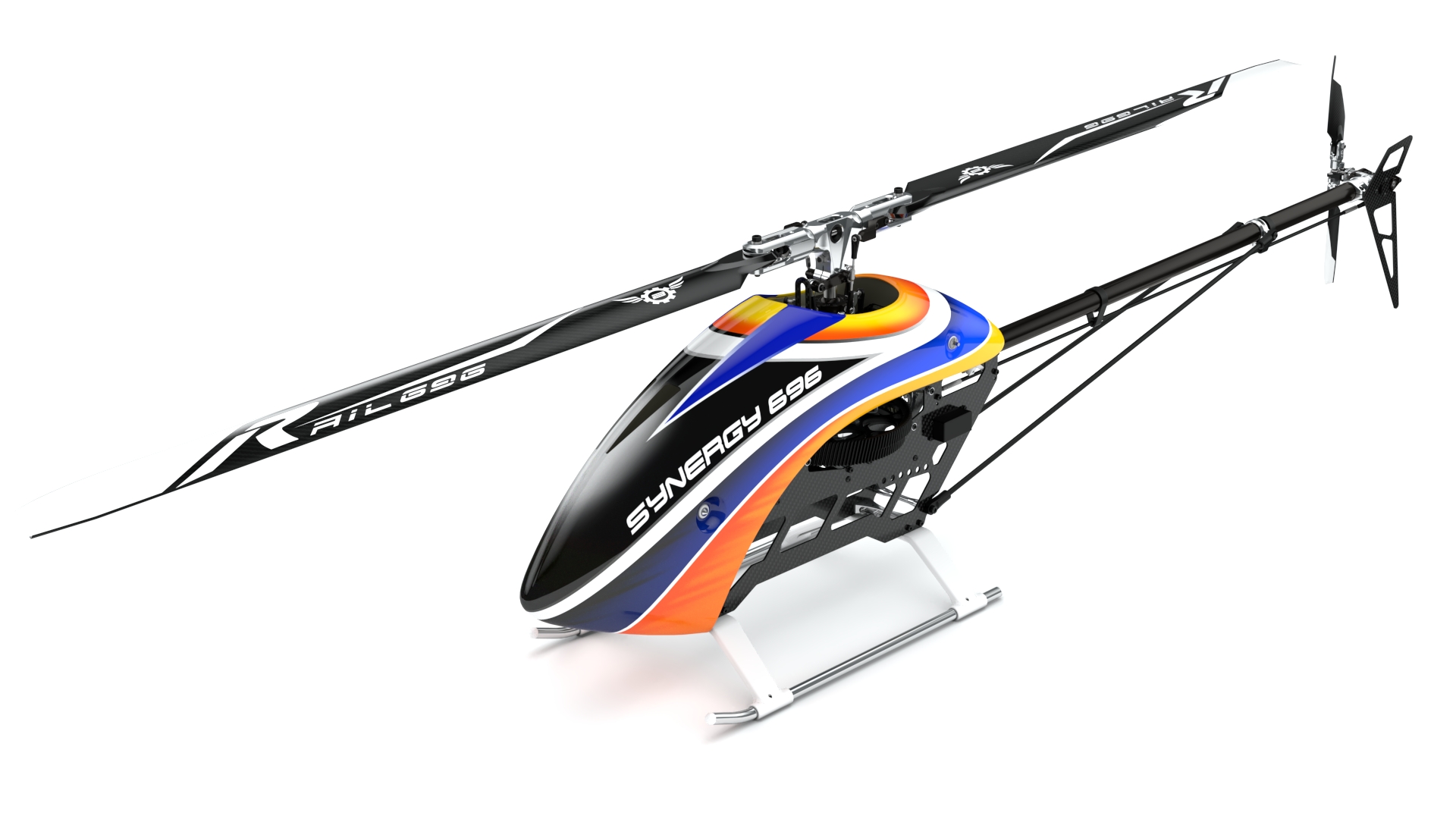

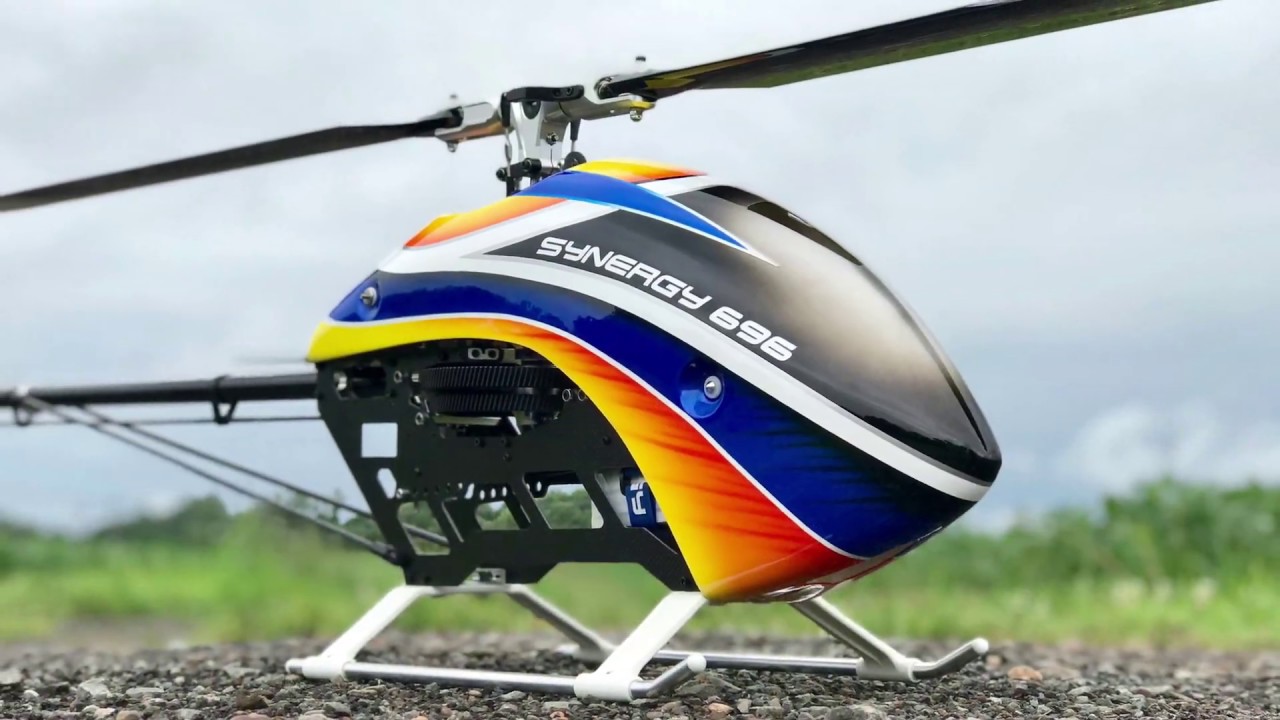

Pictures

Manual

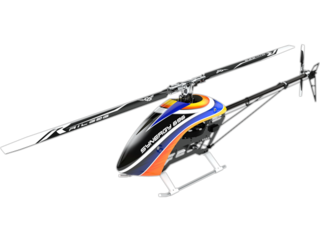

Radio icons

(Click on the icon you want to download)

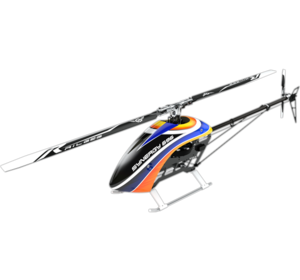

FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Synergy 696 in particular but at least we know they do distribute Synergy R/C Helicopters.

Where to buy

USA
AMain Hobbies
check web site
Ship to: USA

Wingspan: 716mm (28.2 in)
Length: 716mm (28.2 in)

Weight: unknown
  • Motor: 700 class electric
  • Main Blades: 696-716mm
  • Tail Blades: 106-116mm
  • Cyclic/Tail Servos: Full Size HV
  • Main Ratio: 9.93-11.58 (13T included; 10.69:1)
  • Tail Ratio: 4.70-5.08:1 (27T included; 4.70:1)
  • Main Rotor Diameter: 1574mm (with Rail 696mm)
  • Tail Rotor Diameter: 298mm (with Rail 116mm)

Official SYNERGY TESTED EQUIPMENT:

  • Cyclic servos: Futaba BLS273/275 and MKS X6/575SL
  • Tail servo: Futaba BLS276 and MKS HBL990 (Narrow-band, 560hz/760us)
  • Flybarless system: CGY750/760 or Vbar/NEO
  • Main blades: Rail 696mm
  • Tail blades: Rail 116mm
  • Stock 13T pinion: 1950-2150 RPM
  • Stock 27T tail drive
  • Motor: Scorpion HK4525-520 or larger
  • ESC: Scorpion 200A; Castle Edge 160HV; Hobbywing 130A Platinum
  • All high-voltage capable servos powered via internal ESC BEC
  • Flight battery pack: 4400-5000 12S

Variants

S696
Synergy 696 (Black Blue Orange)
