Bora F5J from Tomahawk Aviation

Details

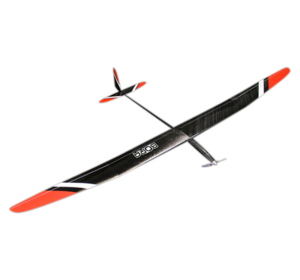

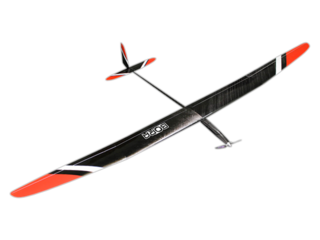

The BORA F5J PNP by Tomahawk Design is a purebred high-tech full-carbon model for the electric flight class F5J. It is extremely durable and light at the same time. This is mainly based on the elaborate carbon construction of selected materials. The fuselage is made in spread-tow carbon, which gives it tremendous rigidity at the lowest weight possible.

The two-piece carbon wing is made of biaxial carbon fabric on an Airex foam core and has an extremely high bending and torsional strength. The wing halves are connected by a carbon wing joiner and screwed to the fuselage. The flaps articulation is classic cross. The empty weight is only about 450g, the flying weight about 700-780g.


The BORA F5J PNP has an exceptionally high degree of prefabrication for this class and comes with built-in digital servos with metal gears, finished wiring and linkages. Also the wing plugs are soldered ready.

As drive we use a brushless outrunner 2826-2200kv and a 30A regulator, which is designed for 3S 850mAh LiPo batteries. The entire drive has a great weight / power ratio and is thus tuned very efficiently.

Building up the model consists only of the soldering of the sockets to the battery, the installation of the receiver, balance the center of gravity and transmitter programming!

Features:

  • Model comes assembled with electronics and linkages mounted (except battery and receiver)
  • Fuselage in Spread-Tow Carbon
  • Wing in biaxial carbon on Airex core
  • Drive, servos and linkages completely installed

The set includes wing and rudder protection bags

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Bora F5J in particular but at least we know they do distribute Tomahawk Aviation.

Where to buy

Austria
Lindinger ModellBau
check web site
Ship to: Europe
Germany
Tomahawk
check web site
Ship to: International
Switzerland
Scamora
check web site
Ship to: Switzerland
Belgium
Aerobertics
check web site
Ship to: Europe
United Kingdom
Jettstreamuk
check web site
Ship to: United Kingdom
Germany
Voltmaster
check web site
Ship to: Europe

Wingspan: 2540mm (100 in)
Length: 1350mm (53.1 in)

Weight: 780 g (1.7 lbs)
Wingspan: 2,54 m
Lenght of fuselage: 1,35 m
Weight ( empty): 450 g
Weight (all up): 700-780 g
Wing area: 42,64 dm²
Airfoil: MD AG-40, AG-41, AG-42
Wing construction: Voll-CfK, Biaxial Carbon
Fuselage construction: Voll-CfK, Spread-Tow Gewebe
