Levant F5J from Tomahawk Aviation

Details

The Levant F5J ARF+ by Tomahawk Design is a purebred high-tech full-carbon model for the electric flight class F5J. It is extremely durable and light at the same time. This is mainly based on the elaborate carbon construction of selected materials. The fuselage is made in spread-tow carbon, which gives it tremendous rigidity at the lowest weight possible.

The two-piece carbon wing is made of biaxial carbon fabric on an Airex foam core and has an extremely high bending and torsional strength. The wing halves are connected to the fuselage and will be fixed with tape.The flaps articulation is classic cross. The empty weight is only about 450g, the flying weight about 700-780g.

The Levant F5J ARF+ has an exceptionally high degree of prefabrication for this class and comes with  finished wiring and linkages, built in motormount, rudder-horns e.t.c.

As drive we use a brushless outrunner 2826-2200kv and a 30A regulator, which is designed for 3S 850mAh LiPo batteries. The entire drive has a great weight / power ratio and is thus tuned very efficiently.

Features:
• Full-carbon competition model of class F5J 400
• Model comes assembled ARF+ with wires and linkages mounted
• Fuselage in Spread-Tow Carbon
• Wing in biaxial carbon on Airex core

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

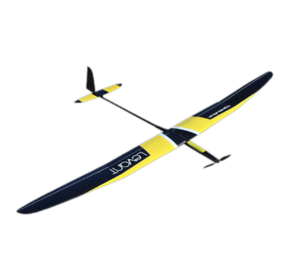

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

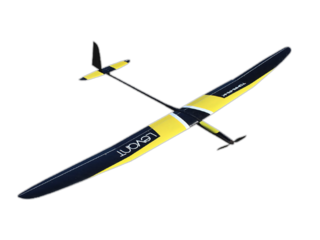

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 2550mm (100.4 in)
Length: 1350mm (53.1 in)

Weight: 780 g (1.7 lbs)

Wingspan: 2.55m
Length: 1.35 m
Weight (empty) approx .: 450 g
Weight (ready to fly) approx .: 700-780 g
Wing area: 42.64 dm²
Wing profile: Mark Drela modified
Construction / material wing: Full-CfK, XPS core
Construction / material fuselage: full CFRP, spread-tow fabric
