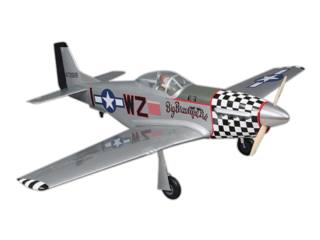

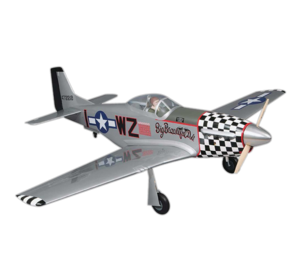

P-51D Mustang 84.5 from Top Flite

Details

Called "Little Friend" by the bomber crews it protected, the P-51 Mustang also became known as the Cadillac of the Sky – one of the finest high-speed, high-altitude fighters built during WWII. Top Flite's giant ARF version fulfills your own fighter pilot fantasies with impressive size, power and maneuverability!

Features:

  • Construction: Fully sheeted balsa and plywood with pre-painted fiberglass fillets
  • Wing: One-piece, built up wood frame which is then sheeted with wood
  • Covering: Factory applied Top Flite MonoKote in color scheme to recreate WWII's "Big Beautiful Doll" flown by Col John D Landers
  • Radio Compartment: Easily accessible, plywood reinforced
  • Cowling: Fiberglass, Pre-Painted
  • Canopy: Clear, single
  • Landing Gear: Fixed heavy duty wire (¼"), but is also set up to use optional Robart retracts with functional landing gear doors
  • Dual Wing Servos: Two servos per wing half (1 Flap, 1 Aileron)
  • Spinner: 5" (127mm) Aluminum
  • Cockpit Kit: Pre-Painted ABS plastic with decals
  • Building Time: Ready to fly in only 25-30 hours.

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the P-51D Mustang 84.5 in particular but at least we know they do distribute Top Flite.

Wingspan: 2146mm (84.5 in)
Length: 1865mm (73.4 in)

Weight: 10880 g (24 lbs)
  • Wingspan: 84.5" (2146mm)
  • Wing Area: 1245 sq in (80.3 sq dm)
  • Weight: 19 - 24 lbs (8.61 - 10.88kg)
  • Wing Loading: 32 - 35 oz/sq ft (98 - 107 g/sq dm)
  • Length: 73.5" (1865mm)
  • Airfoil: Fully-symmetrical, low-wing
  • Center of Gravity: 4-9/16" (116mm) Back from the wing's leading edge
  • Control Throws: High Rate   /   Low Rate
  • Elevator: Up & Down 9/16" (14mm) 3/8" (10mm)
  • Rudder: Right to Left 1½" (38mm) 1" (25mm)
  • Ailerons: Up & Down ¾" (19mm)up ½" (13mm)up 5/8" (16mm)down 3/8" (10mm)down
  • Flaps: 1-3/16" (30mm) 2-1/8" (55mm)
