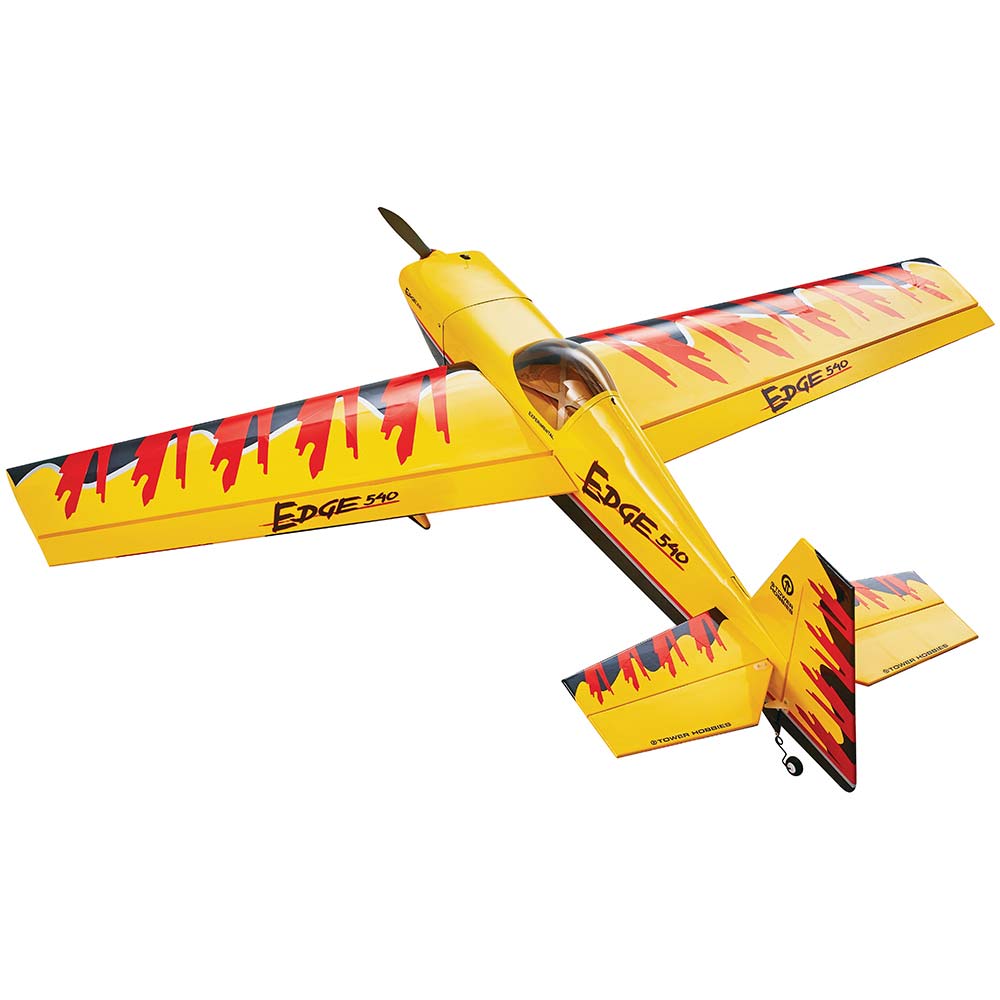

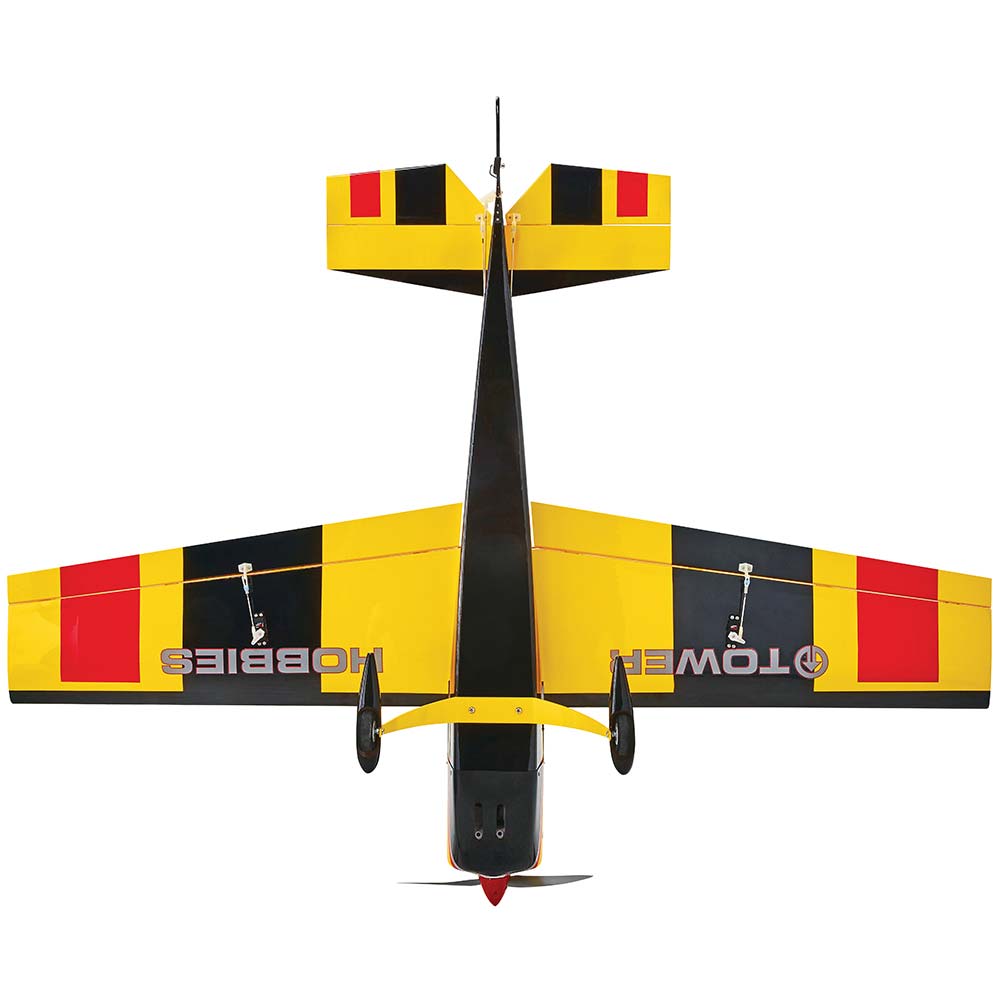

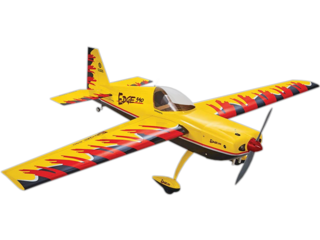

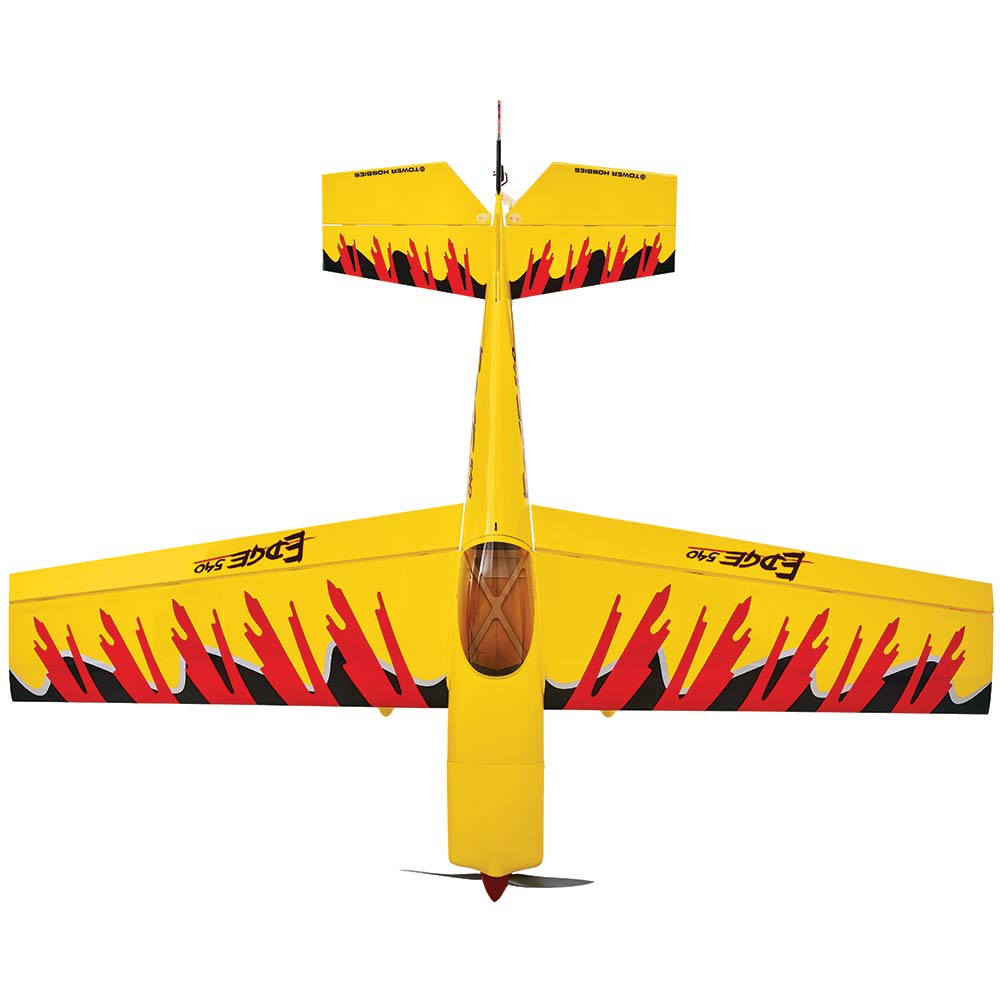

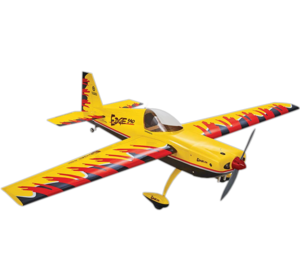

Like its full-size counterpart in ultra-exciting air racing, the easy-to-assemble Tower Hobbies Edge 540 ARF excels at outrageous aerobatics. Adding to its crowd-pleasing performance, the all-wood main structures and painted, hand-laid fiberglass cowl and wheel pants sport an eye-catching, factory-applied trim scheme. Take a flight on the wild side with the Edge 540...an exceptional value in edge-of-your-seat aerobatics.
The Zivko Edge 540 manufactured by Zivko Aeronautics is a highly aerobatic aircraft. Capable of a 420 degree per second roll rate and a 3,700 foot per minute climb rate, it has been flown to victory on the international Unlimited aerobatics circuit several times since the mid-1990s. A tandem-seat version is sold as the Edge 540T.
The Zivko Edge 540 is the most common aircraft used in the Red Bull Air Race World Series.
Some content in menu 2.
Wing Loading: 20.5 - 23.4 oz/sq ft (62.5 - 71.4 g/sq dm)
Wing Area: 590 sq in (38.0 sq dm)
Center of Gravity, (CG): 2 - 3" (51 - 76mm) from the leading edge of
the underside of the wing measured at the fuselage
Control Throws Low Rate High Rate
Elevator, Up/Down: 1/2" (13mm) 8° 3/4" (19mm) 12°
Rudder, Right/Left: 1-1/2" (38mm) 15° 1-1/2" (38mm) 15°
Ailerons, Up/Down: 3/8" (9mm) 8° 5/8" (16mm) 13°
Fuel Tank: Approximately 6oz (180cc)
Spinner: Red plastic 2" (51mm) diameter
Radio: At least 4 channel
Servos: 5-6 mini servos with at least 50 oz-in torque (2-aileron,
1-rudder, 1 or 2-elevator, 1-throttle if using glow engine
Brushless Motor: ElectriFly Rimfire .32 (42-50-800) recommended
Electronic Speed Control: 70 - 80A
LiPo Battery: 4S 3300 - 3600mAh
Battery charger and LiPo charging bag
Engine: .46 - .55 cu in (7 - 9 cc) 2-stroke OR .72 cu in (11.5 cc) 4-stroke
Glow Fuel, Glow Starter
Propeller to match selected engine
Building and field equipment
