Vista Grande EP from Tower Hobbies

Details

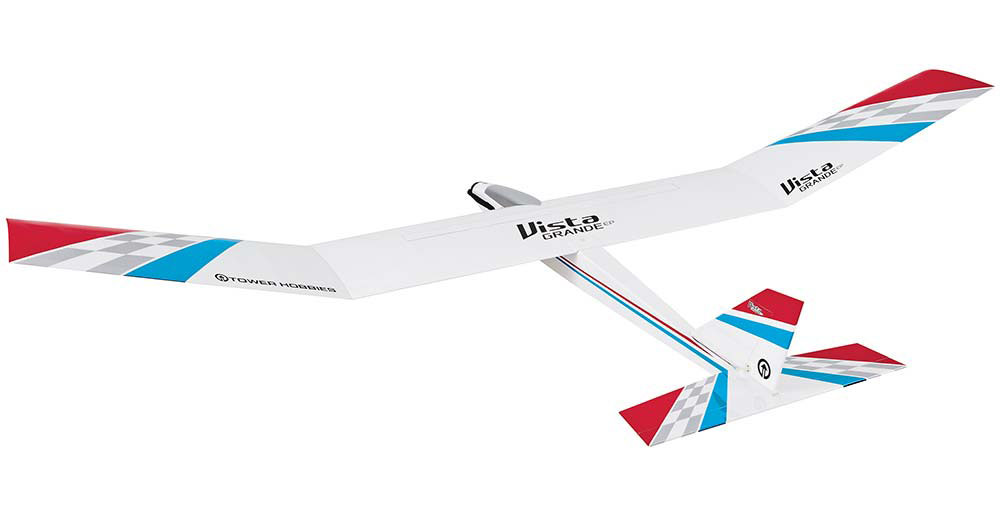

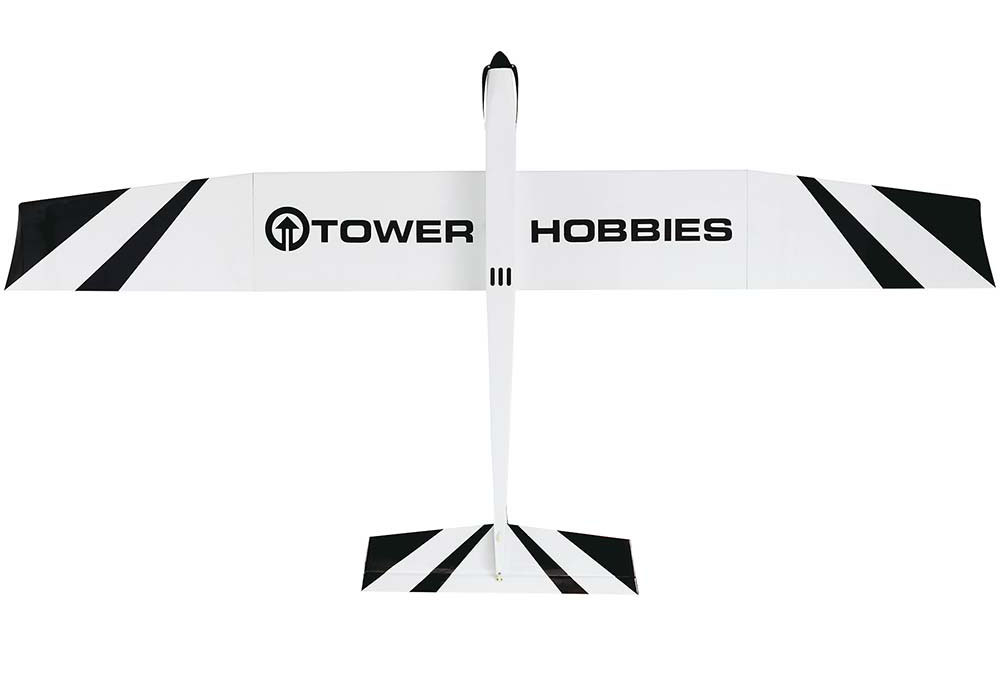

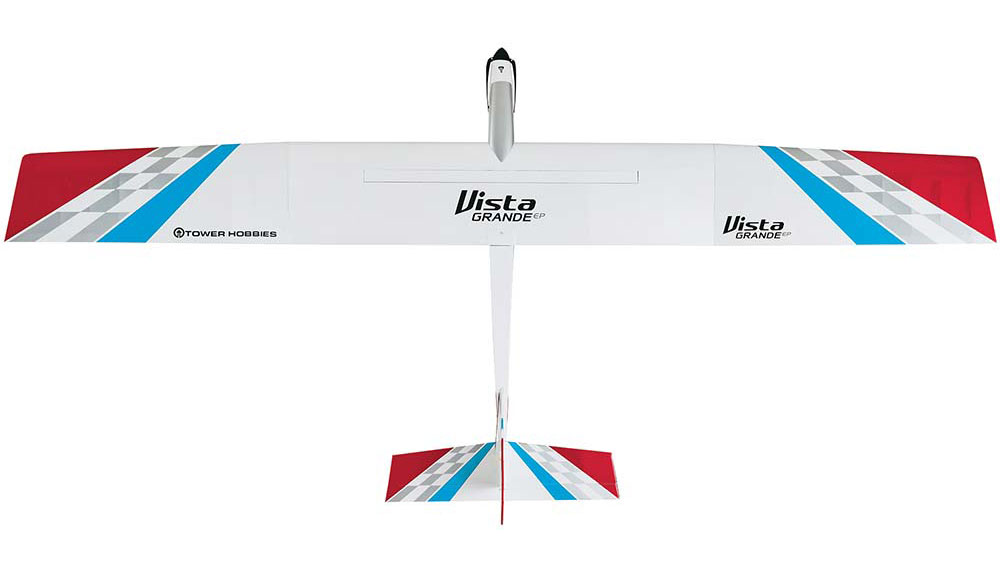

If you’ve flown 2-meter sailplanes and want to try a larger EP model, the Vista Grande has many advantages. With a 2.50m span wing it handles well in wind, responds gently to control input, and improves visibility. Bold stripes on the wing bottom also help you follow orientation. Electric power eliminates the need for a hi-start, tow plane, or large launch area. You can climb to soaring altitude quickly, coast on the thermals, come down, and do it all again — without recharging.

Features:

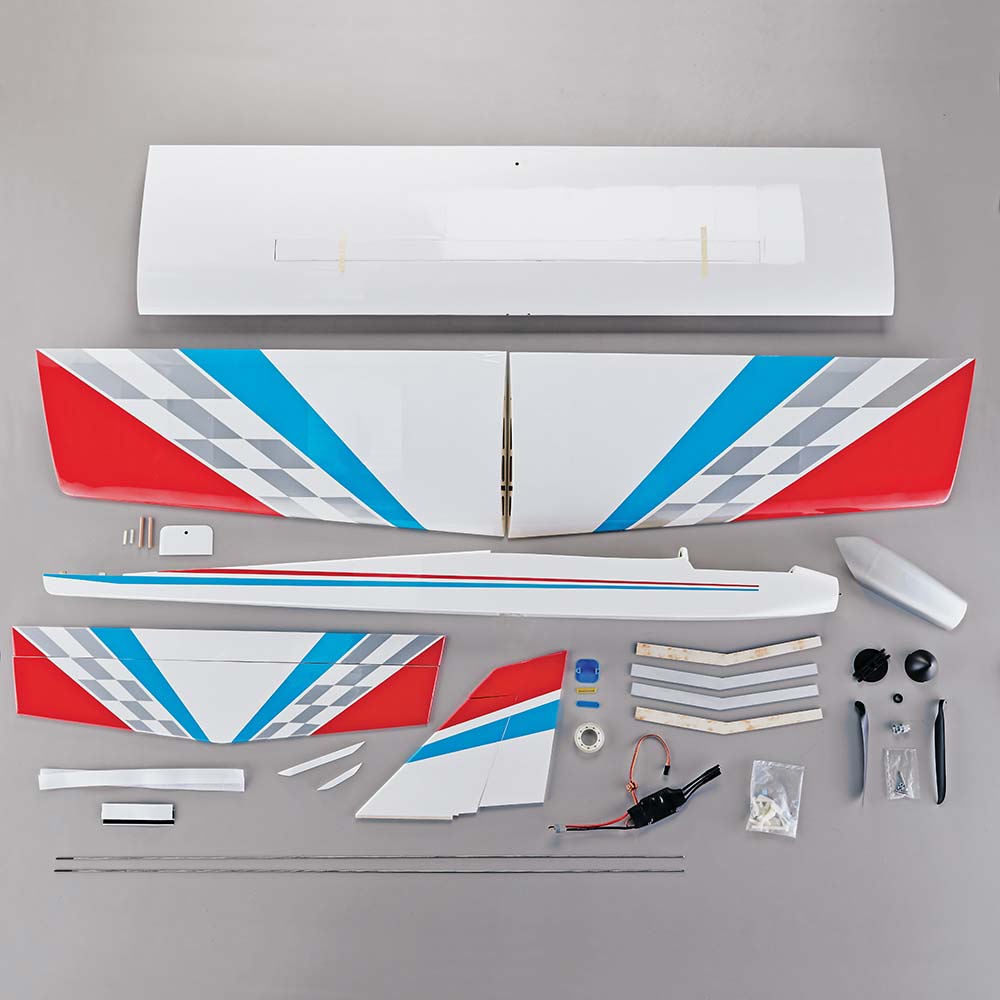

  • All-wood airframe with expertly applied film covering
  • Brushless motor, ESC, and folding propeller included
  • 3-piece, bolt-on wing for convenient transportation and storage
  • Factory-hinged rudder and elevator to shorten assembly time
  • Center wing section spoiler to reduce speed quickly
  • Large hatch/removable canopy for easy LiPo changes

Pictures

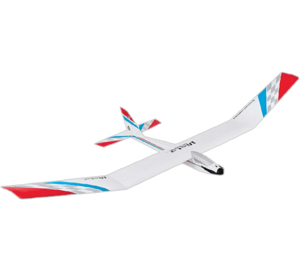

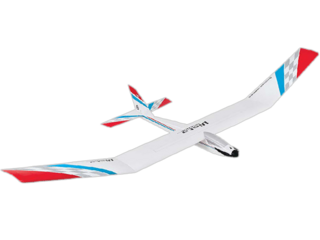

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Vista Grande EP in particular but at least we know they do distribute Tower Hobbies.

Where to buy

USA
TOWER HOBBIES
check web site
Ship to: International

Wingspan: 2540mm (100 in)
Length: 1257mm (49.5 in)

Weight: 1905 g (4.2 lbs)

Wing Area: 1044 sq in (67.3 sq dm)
Wing Loading: 8.4 - 9.3 oz/sq ft (25.6 - 28.4 g/sq dm)
Center of Gravity (CG): 3.5" (89mm) from the leading edge of the
wing measured at the fuselage.

Control Throws: Low Rate High Rate
Elevator Up/Down: 3/8" (10mm) 12° 1/2" (13mm) 17°
Rudder Right/Left: 7/8" (22mm) 13° 1-3/8" (35mm) 22°
Spoiler Half: 7/16" (11mm) Full 7/8" (22mm)

Brushless Motor: Great Planes ElectriFly RimFire .32 (42-50-800)
outrunner
Electronic Speed Control: 60A 2-6S programmable, 5V BEC with Star
battery connector
Spinner: 2" (51mm) diameter, matte black in color
Propeller: 13.5 x 7 folding
Warranty: Horizon Hobby LLC


Requirements:
Radio: At least 4 channels, Tactic TTX610 recommended
LiPo Battery: 4S 14.8V 2200 - 3600mAh recommended
Servos:

  • Two 36mm long mini servos for elevator
  • One 23mm long micro servo for spoiler
  • Charging bag, assembly and field equipment

Variants

TOWA2045
Vista Grande EP (White-blue-red)
