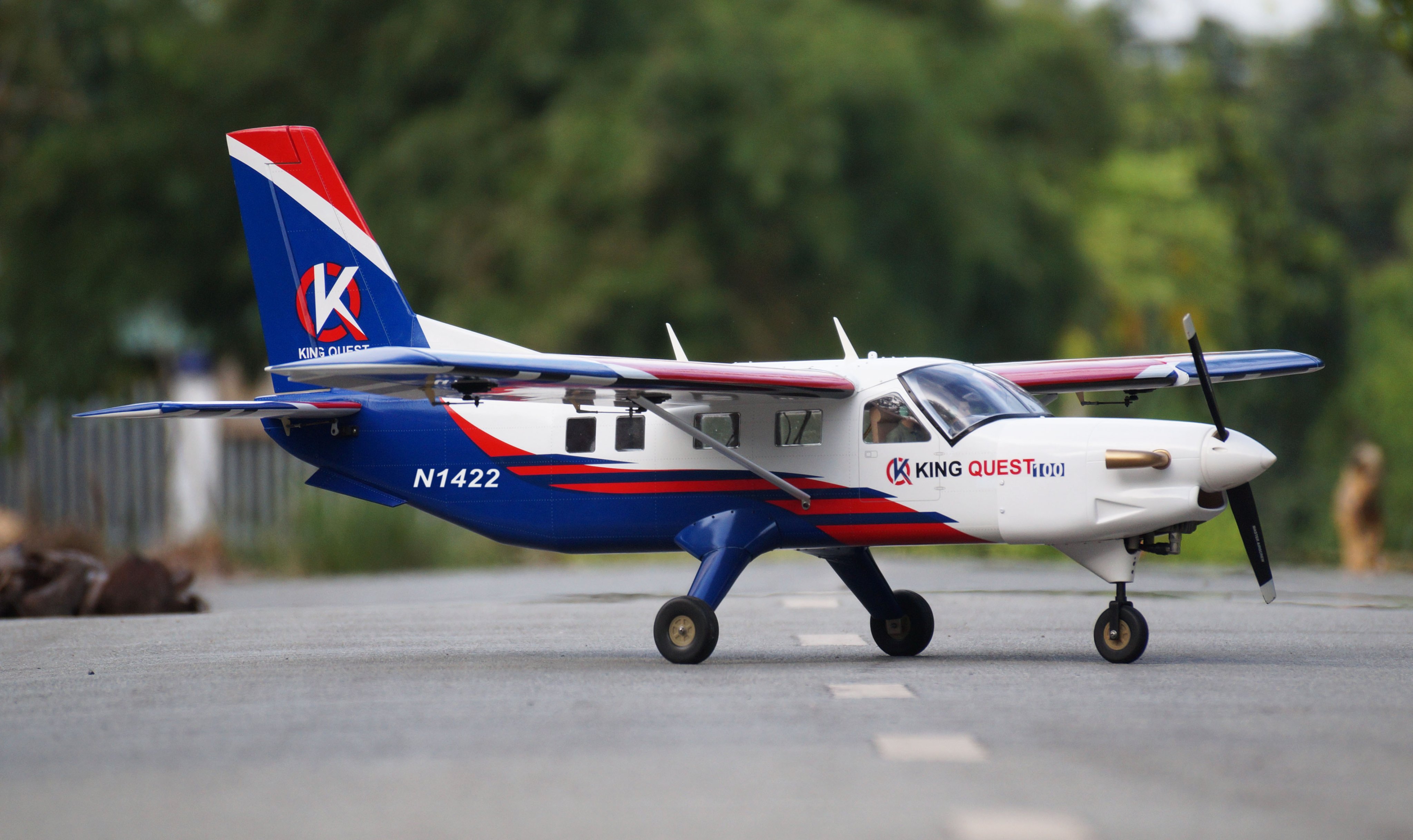

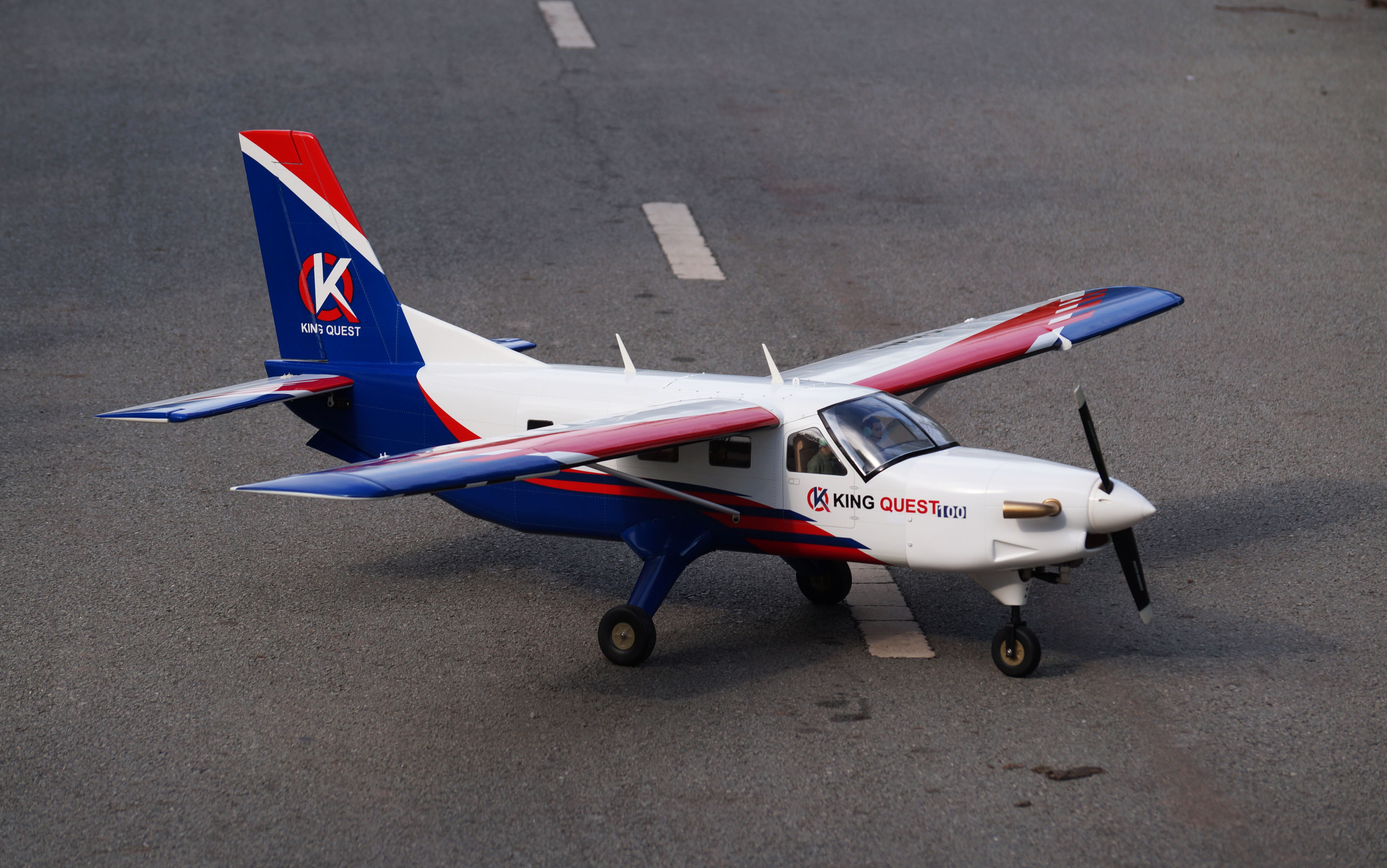

King Quest Kodiak from VQ Model

Details

The Quest Kodiak (now Daher Kodiak) is an American utility aircraft designed and built by Quest Aircraft. The high-wing, unpressurized, single- engined turboprop has a fixed tricycle landing gear and is suitable for STOL operations from unimproved airfields.

Design began in 1999, it made its maiden flight on October 16, 2004, and was certified on 31 May 2007 before first delivery in January 2008. Quest Aircraft was purchased by Daher in 2019. By 2021, 300 were delivered.
Now , VQ Introduce the King Quest Kodial 20cc size EP-GP .This Kodiak come with 2 x painted pilots and pilot seat . With the large battery hatch , you can use either an Electric motor or a Nitro engine . With a total weight of just 5,8 kilograms and large wingspan ( 2,2m ) , it will fly like a high wing trainer .

Features:

  • All Balsa and lite-ply construction
  • Fully covered in weathered detail
  • Fiberglass cowling
  • Control surfaces pre-hinged and installed
  • Two piece wing with aluminium wing joiner
  • Big battery hatch for Electric version

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 2210mm (87 in)
Length: 1580mm (62.2 in)

Weight: 6000 g (13.2 lbs)
  • Wingspan: 2210mm
  • Length: 1580mm
  • Weight (ready to fly): 5.7 -6 kg

Recommended Equipments:

  • Servos: 3 x 19 grams servo for elevator and rudder)
  • Engines
    • Nitro Engine 2 stroke from 120 (OS.120 AX)
    • Nitro Engine 4 stroke from 120 (Saito FA-125)
    • Gasoline Engine 2 Stroke from 20cc (OS.120 AX , OS GT-22)
    • Gasoline Engine 4 stroke from 21cc (Saito FG-21)
    • Electric Motor : Brushless Motor Boost 120
  • Radio: 7 channels with 8 servos
  • 5 standard servo for Aileron, Flap, Throttle and nose wheel
