Sprite from Vladimirs Model

Details

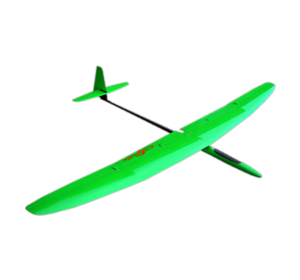

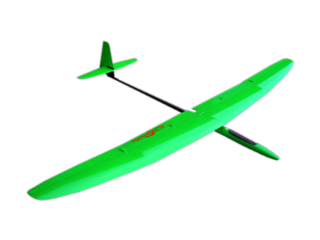

Sprite - is a new generation of 2-meter gliders from Vladimir's Model.

This model is made for experienced pilots, who can fully appreciate its unique aerodynamic characteristics calculated by Dr. Drela. Our original design delivers incredible strength with minimal weight.

Sprite is very easy to accelerate, it has an excellent penetration ability and does not lose speed in a turn.

Sprite is available in two versions of the wing construction:

Sprite HOT (wing has one kink in the middle);
Sprite Thermal (wing has three inflection on the front view);
For each wing offers a choice of three types of external cladding materials:

  • Glass;
  • Carbon;
  • Spread carbon.


Sprite HOT model has a V-shaped wing, consisting of two consoles. Angle V is 4 degrees (2 degrees on the side). The model is designed for fast flight in dynamic flux, or for those who like to drive electric version of the model. For a quick flight recommended carbon (heavier) version, and for flights to the highlands is the ballast weight to 750 grams, which increases the wing loading of 20.5 grams per dm².

Sprite Thermal has a multi-sectional wing, significantly improves the quality of soaring glider. Right and left wing have an additional 5 degree bend. Thanks to the triple V-wing corner Sprite Thermal is extremely stable and forgiving on the long-range management. At the same time, the model is extremely sensitive to the flow and mixing of perfect circles with the rudder.

 Different sets of ballast available for the model (for different weather conditions from 156gr to 750gr).

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 2000mm (78.7 in)
Length: 1318mm (51.9 in)

Weight: 850 g (1.9 lbs)
Length 1318mm (51.9")
Wing span 2000mm (78.7")
Wing area 36.5 dm² (3.92 in²)
Wing airfoils AG40, AG41, AG42, AG43
Wing aspect ratio 10.96%
Stabilizer area 3.63 dm² (56.26 in²)
Stabilizer aspect ratio 6.34%
Stabilizer airfoils HT14/HT12
Vertical Stabilizer area 2.94 dm² (45.57 in²)
Vertical Stabilizer aspect ratio 2.3%
Weight Sprite Hot Glass 860 g (30.2 oz)
Weight Sprite Hot Carbon 910 g (31.9 oz)
Weight Sprite Hot SC 780 g (27.4 oz)
Weight Sprite Thermal Glass 860 g (30.2 oz)
Weight Sprite Thermal Carbon 910 g (31.9 oz)
Weight Sprite Thermal SC 780 g (27.4 oz)
