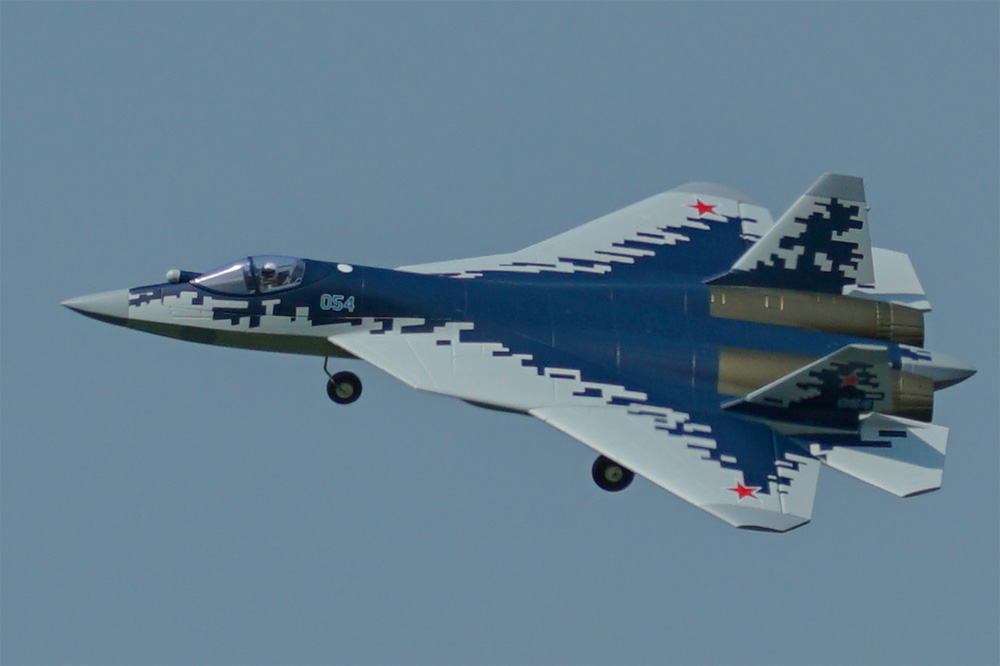

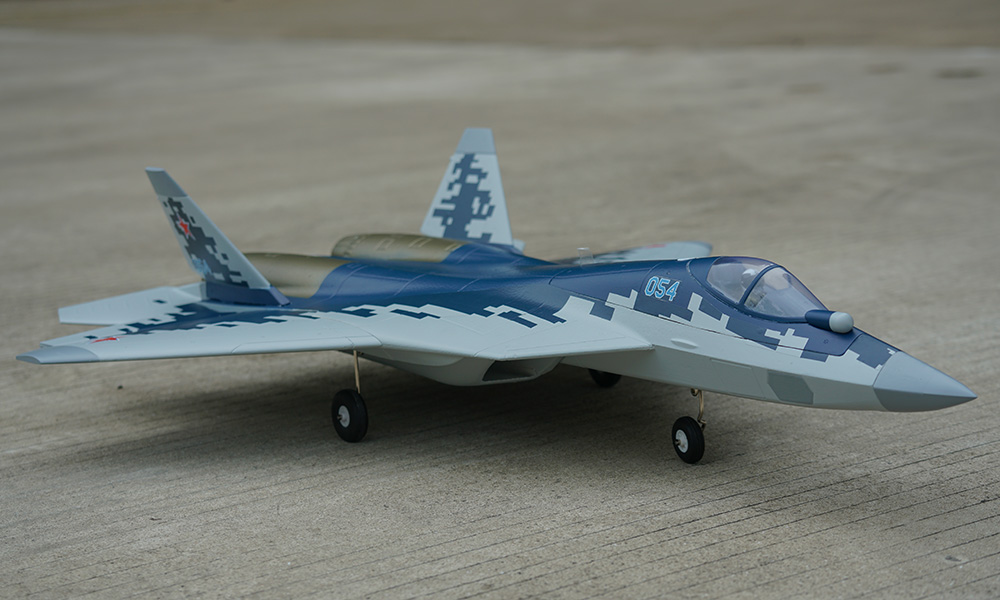

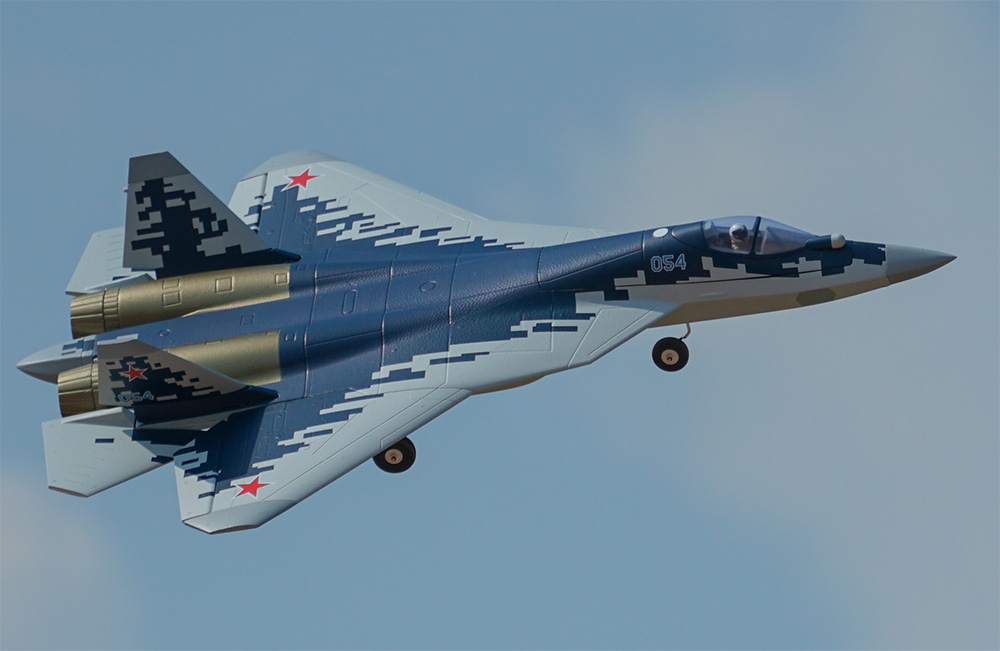

Sukhoi Su-57 Felon 40mm from XFLY Model

Details

Following the release of F-22 Raptor, F-18 Hornet and F-15 Eagle, XFly Model is continuing to expand its incredible twin 40mm EDF range with Sukhoi Su-57. The full-size Su-57 is a twin-engine stealth multirole fighter aircraft capable of aerial combat as well as ground and maritime strike. XFly's Su-57 is a scale replica that not only includes scale details in air intake, cockpit, nozzle and full-flying horizontal stabs, but also has excellent performance in power, speed and maneuverability.

The factory-installed power system, including twin 12-bladed 40mm fan units with 1413-KV5500 brushless motors and twin 20A brushless ESCs, paired with a 4S LiPo battery, delivers an abundance of thrust for fast climbs, rolls, loops and endless fun for high alpha flying. A flight time of around 3-8 mins can be achieved with proper throttle management.

Perfectly fitted landing gear design helps keep the plane lightweight and make take off & landing smooth. Landing gears can be easily removed for hand launches to get more speed and better vertical performance.

Features:

  • 4 operable channels (Aileron, Elevator, Throttle, Steering)
  • Scale replica of the Sukhoi stealth multirole fighter aircraft Su-57
  • Full flying stabs designed for excellent high alpha capability
  • Efficient twin power system setup delivering an abundance of thrust for fast climbs, rolls, loops
  • Perfectly fitted landing gear design for smooth takeoff and landing
  • Extended flight time of 3-8 mins when using recommended 4S 1800-2600mAh LiPo battery
  • All components can be assembled quickly without glue needed
  • Robust EPO construction

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 700mm (27.6 in)
Length: 960mm (37.8 in)

Weight: 980 g (2.2 lbs)
  • Wingspan: 700mm (27.5 in)
  • Length: 960mm (37.8 in)
  • Wing Load: 98g/dm²
  • Wing Area: 10dm²
  • Flying Weight: Approx 980g (2.2 lb)
  • CG (Center of Gravity): 50mm from the leading edge
  • Motors: Two 1413-KV5500 inrunner brushless motors
  • EDF Diameter: Two 40mm (12-blade impeller) Galaxy X-4
  • Landing Gears: Fixed main landing gears, steerable nose gear
  • Servos: 5x9g
  • ESC: Two 20A
  • Recommended Battery (Not Included): 4.8V 1800mAh~2600mAh ≥35C Li-Po
