Nimbus 550 nitro from XLPower

Details

The nitro version Nimbus 550 comes stock with a new upper swash plate to remove unequal cyclic and collective differential. Longer outer swash plate balls are also included to improve servo to swash plate geometry; combined with the new uoper swash plate this keens the same good control ratio proven on the Nimbus 550 electric.

The original Nimbus cyclic and collective range has been proven to work with many flight control systems. Now the rotor head keeps the same proven ratio but has no linkage differential further improving the flight feel and making bench setup easier.

The Nimbus 550 Nitro features a proven tapered clutch system adopted from the Nitro 700, making it the smoothest and easiest-to-align clutch stack available on the market.

The core of the airframe consists of a single-piece 7075 aluminum bearing block assembly and servo mount, which provides rigidity to the frame and drivetrain. The cyclic servos are arranged in a 120-degree layout for optimal control geometry.

The parts are easily removed using simple tools included in the kit. including a crank lock, clutch liner gap tool, and heavy duty Allen keys for the special tapered parts.Engine maintenance is also easy, with the ability to remove the engine from the bottom without disturbing other assemblies in a matter of minutes. The engine cooling fan shroud can be independently removed by side and without disassembly of otherparts.

With a 7.7 gear ratio, it is perfectly matched to achieve a good rotor RPM while providing enough torque for demanding maneuvers with 550-580mm blades. Optional parts are available to stretch it to a 650-Size with an 8.5 gear ratio. The main gear directly drives the head and has been designed to efficiently transmit rotor torque, producing peak power through extreme rigidity.

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

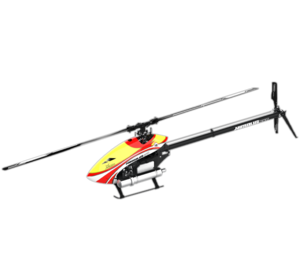

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

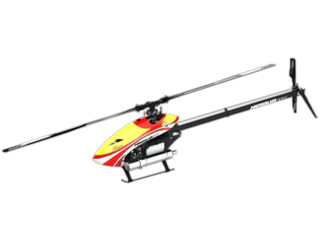

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Nimbus 550 nitro in particular but at least we know they do distribute XLPower.

Wingspan: unknown
Length: 1148mm (45.2 in)

Weight: 1500 g (3.3 lbs)
  • Length Without Main Blades: 1148mm
  • Overall Height: 315mm
  • Width:206mm
  • Main Gear:170T Pinion Gear:
  • Main Gear Ratio:22T (20T Optional)
  • Front Tail Pulley:7.7(8.5 Optional)
  • Rear Tail Pulley: 60T 13T (12T Optional)
  • Tail Ratio: 4.615(5 Optional)
  • Frame Weight:1500g
  • Main Shaft Diameter: 10mm
  • Feathering Shaft Diameter: 8mm
  • Tail Boom Diameter: 27mm
  • Tail Belt Width:  6 mm
  • Main Gear Thickness:10mm
  • Fuel tank: 345cc
