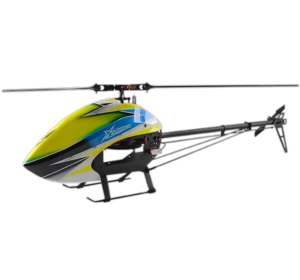

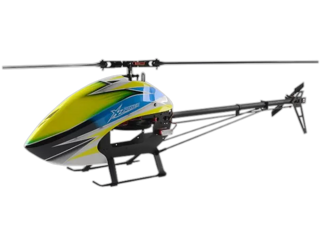

XLPower 550 from XLPower

Details

The XLPower 550 Electric Helicopter Kit provides pilots with an excellent blend of features: Low disc loading (light weight helicopter design), low cost, & great value! Paired with a set of Zeal Carbon Fiber Blades, Carbon Fiber Tail Blades, and an XL Power 4020 series motor, pilots looking to step into a new size helicopter will be hard pressed to find this level of fun to price ratio!

XL Power design features formidable elements such as: HPS (High Precision Head System), 10mm Main Shaft, 8mm Spindle Shaft, Aluminum frame stiffeners, direct to swash servo design, lightweight high visibility canopy, dampened tail rotor system, single pieces tail case unit, and a downward rake that tilts the helicopter 2.5 degrees to decrease the event of a tail strike under landing or other maneuvers.

Features



Pictures

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s/XE Ethos
FrSky X18/X18s/TWIN Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the XLPower 550 in particular but at least we know they do distribute XLPower.

Where to buy

USA
AMain Hobbies
check web site
Ship to: USA
Hong-Kong
Banggood
check web site
Ship to: International

Wingspan: 570mm (22.4 in)
Length: 1080mm (42.5 in)

Weight: 2800 g (6.2 lbs)
  • Length: 1080mm
  • Height: 310mm
  • Width: 160mm
  • Main blade size: 430mm - 570mm
  • Tail blade size: 72mm - 86mm
  • Motor pinion: 12t included;13t optional
  • Helical CNC Main gear: 106t
  • Tail pinion: 13T
  • Autorotation Gear: 60T
  • Main to Tail Gear Ratio: 4.615
  • RTF weight: 2500g-2800g
  • Main Shaft Diameter: 10mm
  • Feathering Shaft Diameter: 8mm
  • Tail Boom Diameter: 20mm
  • Max Battery Size: 220mm*48mm*55mm (6S)

Variants

XL55K01
XLPower 550 (Blue Yellow Black)
