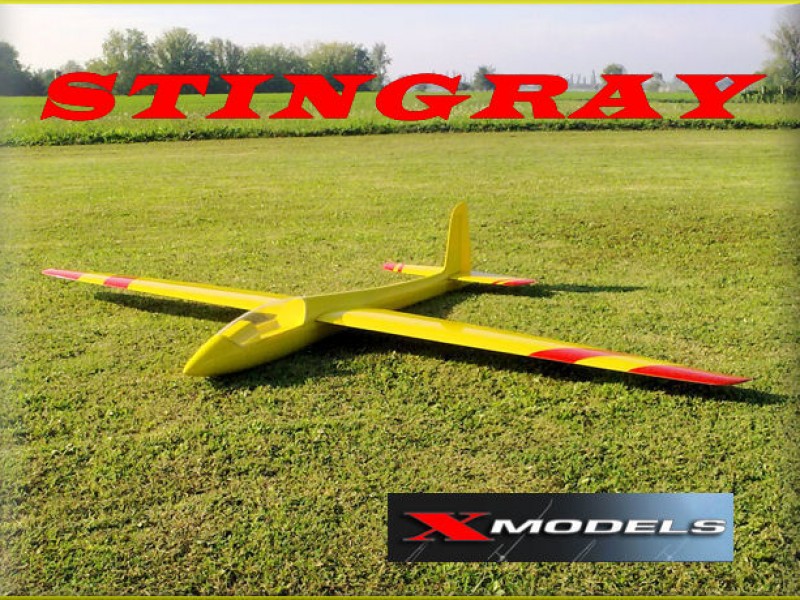

Stingray from Xmodels

Details

This model is the ultimate aerobatic machine crated for all those who like speed and a scale look. it is built with the best quality carbon, kevlar and fibreglass to get the best structure for holding in flight extreme loads. Flight properties are really awesome and extremely precise in aerobatic manouvres,  it also has great energy retention.

The speed of the Stingray is just as unbelievable as the precision with which the model can do aerobatics in the sky.
Owing to large curving flaps and ailerons the Stingray can fly amazingly slowly using the Butterfly setup, this also enables it to be landed with great precision.Want to fly it in lighter wind conditions, simply fit the Prismaray wings on to the same fuselage
As a result of the large surface wing area and profile, standard servos can be used.
The servo for the all moving stabiliser is mounted the servo in the back in the fuselage.
The rudder is linked by a closed loop and so the servo sits in the front in the fuselage.

Pictures

Radio icons

(Click on the icon you want to download)

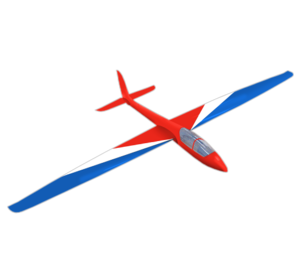

FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ

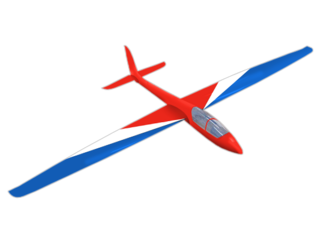

Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Stingray in particular but at least we know they do distribute Xmodels.

Where to buy

France
Plane Expert
check web site
Ship to: Europe

Wingspan: 2900mm (114.2 in)
Length: 1750mm (68.9 in)

Weight: 5600 g (12.3 lbs)

Wingspan: 2.9metres
Wing area: 66dmq(not including elevator)
Wing profile: S6061 modified 9% thickness & 1.75% camber
Length: 1.75m
Weight empty 3.5kg
Flying weight 5.6kg
CG: 105-110mm



  • Butterfly: +/- 10mm, +/- 20mm( exponential 40-50%)
  • Ailerons: 15mm up, 6mm down
  • Elevator: +/- 10% to +/- 20m
  • Rudder: +/- 40 to +/- 45mm
  • Launching: flaps 3mm down
  • Speed setting: ailerons & flaps 2mm up
  • Thermal setting: ailerons 2mm up, flaps 6mm down, rudder +/- 32mm

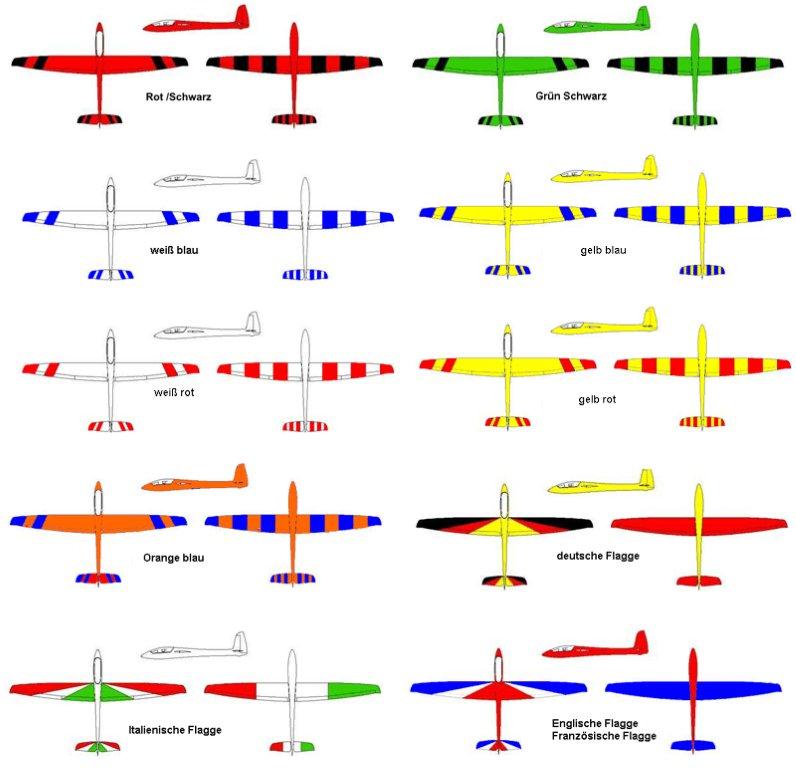

Variants

stingray
Stingray (Red White Blue)
