Prometheus from ZBROY Drones

Details

The Prometheus frame is ready to give you a completely new experience of using the FPV drone. Made of titanium, it is extremely strong and maintainable from the bottom to the top. The head of a frame protects FPV camera reliably and also is a steady mounting plate for the HD camera. Besides, the design of the head allows you to adjust the angle of your recording device from 30 up to 45 degrees.

The original vertical arm design reduces drag to an absolute minimum and makes free-styling more comfortable and controlled. And don’t forget about how extremely attractive and unique the design of Prometheus is. The look of the frame speaks to how easy and enjoyable flying can be.

The frame is DJI-friendly and can be used with the DJI Digital FPV System.

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

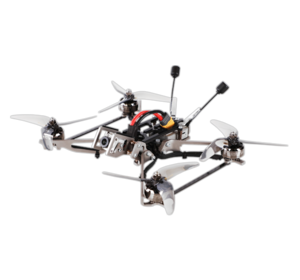

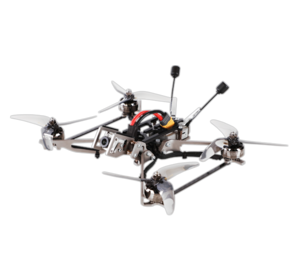

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

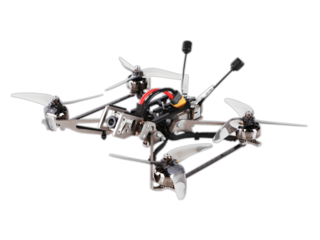

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Prometheus in particular but at least we know they do distribute ZBROY Drones.

Where to buy


Wingspan: 230mm (9.1 in)
Length: 230mm (9.1 in)

Weight: 186 g (6.6 oz)
  • Wheelbase: 230mm
  • Frame shape: Compressed X
  • Prop size: 5"
  • Weight: 186g
  • Type: Freestyle
  • Thickness:
    • 3mm on all titanium details,
    • 3mm on all carbonfiber details
  • Stack height: up to 20mm
  • FPV Camera mounting: 21.1mm for DJI HD camera
  • FC mounting: 20x20mm and 30.5x30.5 holes are provided
  • Motor mounting: slots for 16x16, 16x19 and 19x19mm
  • Motor mount pattern: 22xx
  • Hardware:10.9 grade steel bolts, aluminum standoffs
