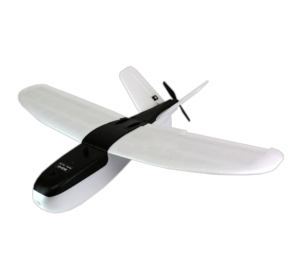

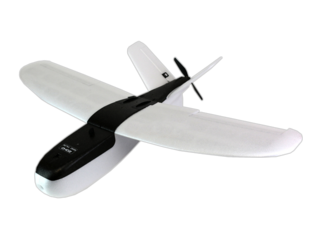

Nano Talon from ZOHD

Details

This 860mm Wingspan Nano Talon is a portable edition of the Talon Airframe series. It is super easy to hand-launch and fly because of the gyro, This Nano Talon is very convenient to carry with because the detachable mainwing and tail wing can be detached easily by plugs and magnets. The built-in servo structure makes the airfoil more aerodynamic, and avoid damage even in a crash. The inside room and extra bottom hatch are also huge for more FPV gear.

Features

  • Built-in Gyro make the Nano Talon flys super stable, and easy to control.
  • Autonomous fly directly after hand-launch, never crash when take-off.
  • EPP molded wing, pre-built-in Carbon Fiber spar for enhancement, light and flexible plus crash resistence.
  • Detachable mainwing and tailwing for easy transport, and easy to change wing by simple plug.
  • Mainwing connected to fuselage by buckle, will be disconnect and release during crash.
  • “NACA”air-intake in nose and air-outlet in tail for better cooling on FPV gear.
  • Extra rooms in canopy and cabin for FPV gear, bottom hatch provide bonus rooms for more FPV equipment
  • Self tighten prop nuts for secure prop mounting

Pictures

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Nano Talon in particular but at least we know they do distribute ZOHD.

Where to buy

Hong-Kong
Banggood
check web site
Ship to: International

Wingspan: 860mm (33.9 in)
Length: 570mm (22.4 in)

Weight: 700 g (1.5 lbs)
  • Wingspan: 860mm/33.85in
  • Length: 570mm/22.44in
  • Flying Weight: 361g(w/o FPV gear)
  • Material: Crash Resistable EPP
  • Weight: 700g
  • CG: 3.5cm from the wing leading edge(mark under the wing)
  • Motor: ZOHD 2204 1870KV BL
  • Motor Shaft Diameter: 5mm
  • ESC: 30A W/1A BEC(XT60 connector)
  • Servos: 3pcs 8g digital servo
  • Propeller: 6x3 Inch

Variants

2030
Nano Talon ()
