Laser 230z 105" from AJ Aircraft

Details

This aircraft is engineered for pilots who demand strength, precision, and ease of assembly in a high-performance airframe. Built using an all carbon-Kevlar composite structure, it delivers exceptional rigidity and durability while maintaining a lightweight design optimized for aggressive aerobatic flight.

The airframe features pre-hinged, glued, and sealed ailerons and elevators, ensuring accurate control response and reduced airflow leakage. Structural integrity is further enhanced with a carbon fiber main wing tube, dual carbon fiber stabilizer tubes, and a carbon fiber main landing gear, all designed to handle high loads with confidence. Aluminum-reinforced firewall and landing gear mounts, along with aluminum engine standoffs, provide a solid foundation for gas engine installations.

Designed with convenience in mind, the model includes quick-release wings, stabilizers, and canopy, as well as a removable rudder, making transport, assembly, and maintenance fast and straightforward. A canister tunnel is integrated into the fuselage for clean exhaust installations, while the finished foam cockpit adds a refined scale appearance straight out of the box.

Ground handling and durability are addressed with heavy-duty foam wheels featuring aluminum hubs, steel axles, a premium tail wheel assembly, and pre-drilled wheel pants with rubber-lined landing gear cuffs. Control hardware includes G10 fiberglass control horns, high-quality ball links and turnbuckles, and pre-run rudder pull-pull cables, with additional hardware provided for spares and alternative setups.

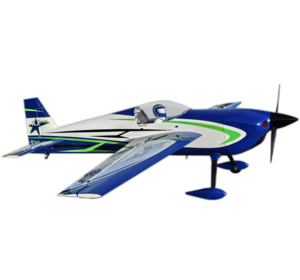

Available in Orange & White or Dark Blue & White color schemes, this airframe delivers a robust, thoughtfully engineered platform ready for high-performance flying with minimal setup time.

Pictures

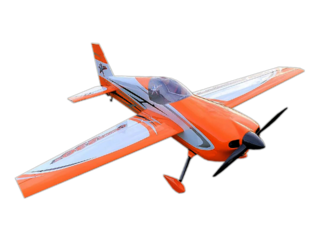

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Laser 230z 105" in particular but at least we know they do distribute AJ Aircraft.

Wingspan: 2667mm (105 in)
Length: 2591mm (102 in)

Weight: 12700 g (28 lbs)
  • Wingspan: 2667 mm (105")
  • Length: 2591 mm (102")
  • AUW (Dry): 11.8–12.7 kg (26–28 lb)
  • Power Requirement: 100–120 cc gas engine (6.1–7.3 cu in)
  • Radio Requirement: 9-channel system
  • Servo Requirement:
    • 8 × high-torque servos, minimum 28.8 kg·cm (400 oz·in)
    • 1 × throttle servo
  • Competition Class: IMAC Legal
