RV-8 70cc G2 FLS from Flex Innovations

Details

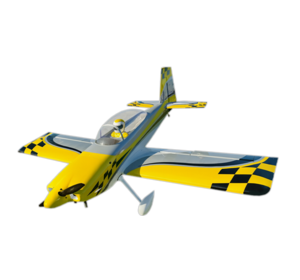

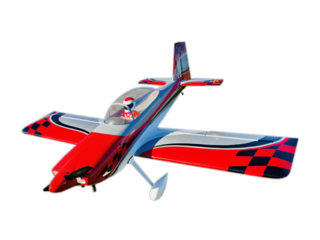

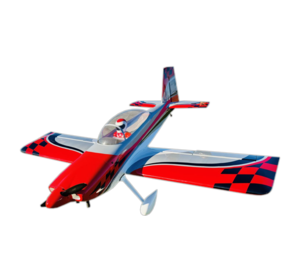

he RV-8 70cc G2 FLS (FeatherLite Series) is a 35% scale model of the famous experimental Van’s Aircraft RV-8. Designer and World Champion Quique Somenzini has taken a completely new approach with the design of the RV-8 70cc FLS. A massive airframe, with over 2000 square inches (130 sq. dm.) of wing area, that comes in at 23 pounds (10.4 kg) flying weight, offers such an incredibly lightly loaded airframe, it feels like you are flying something lighter than air. Couple the extremely light wing loading with key design and geometric details from the master himself, and you get an aircraft that has a incredible flight envelope.

Along with the incredible airframe design of the RV-8 70cc FLS, it is also designed to accept multiple power systems, including 60cc electric setups that allow you to fly anywhere from 5 to 8 minutes on a typical 12S Li-Po setup! We also can’t forget about its float-ready airframe either! The optional RV-8 70cc FLS Float Set includes everything needed to get it on the water, and is also available to match your RV-8 70cc FLS’ color scheme.

This is an airplane that you need to truly experience for yourself, and once you have, you’ll quickly add one to your hangar! From its insane stability at walking speeds with the flaps down, to classic 3D and precision aerobatic maneuvers, the RV-8 70cc FLS has the flight performance and versatility that is for every pilot, of virtually every skill level.

G2 Improvments:

  • Flex Speed-Lock system for wings, stabs, and canopy
  • Removeable vertical fin with Flex Speed-lock, for easy transport
  • Removeable rudder via hinge wire for easy transport
  • MPX Connector Ready wings and fuselage
  • Carbon Fiber tail gear assembly
  • Painted Fiberglass Landing Gear Fairings
  • Optional pre-formed Fiberglass engine baffling
  • Two NEW distinctive Clint Sweet Designs color schemes

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 2540mm (100 in)
Length: 2288mm (90.1 in)

Weight: 11300 g (24.9 lbs)
  • Wingspan: 2540 mm (100 in)
  • Length: 2288 mm (90 in)
  • Length (without V-Fin/Rudder): 2108 mm (83 in)
  • Gas Weight: 10.5 kg (23 lb 3 oz)
  • Electric Weight: 11.3 kg (24 lb 15 oz) – Potenza 65cc w/12S 6200 mAh
  • Engine/Motor Size: 60–70 cc
  • Exhaust Recommendation (for DA-70): Slimline Stock Muffler Set; 1 × MTW TDH 110 Canister with KS 60 mm Drop 2-to-1 Header
  • Servos Required:
    • Electric setups: Minimum 7 servos
    • Gas setups: Minimum 8 servos
  • Torque requirements: Min. 14 kg·cm (200 oz·in) for ailerons, elevator, flaps; Min. 28 kg·cm (400 oz·in) for rudder

Other Variant(s)
