Pitts V2 from fms

Details

The Pitts Special is a light aerobatic biplane designed by Curtis Pitts. It has accumulated many competitions wins since its first flight in 1944. The Pitts biplanes dominated world aerobatic competition in the 1960s and 1970s and, even today, remain a potent competition aircraft in the lower categories.

Built upon the successful V1 Pitts biplane, FMS is proud to announce the brand-new Pitts V2. Redesigned with a massive 1400mm wingspan, the Pitts V2 is constructed of lightweight and robust EPO foam material. Proprietary connector plugs built into the wing structure means that the wings can be attached to and detached from the fuselage using just a few screws. The slide-fit wing struts are just as simple, slide them on in just a few seconds and the wing is securely braced!

An oversized battery bay accommodates most 6S packs with ease- giving the pilot ample power to attempt all aerobatic maneuvers. Hobbywing 50A ESC provides bulletproof performance!

While ensuring that the Pitts Special is faithfully recreated, FMS has worked hard to minimize its profit margins in the hopes that pilots who love the Pitts V2 will find it affordable.

Features

  • 4258 brushless motor, 50A Hobbywing-sourced ESC, 17g servos
  • Realistic trim scheme, rivets, panel lines and pilot figure

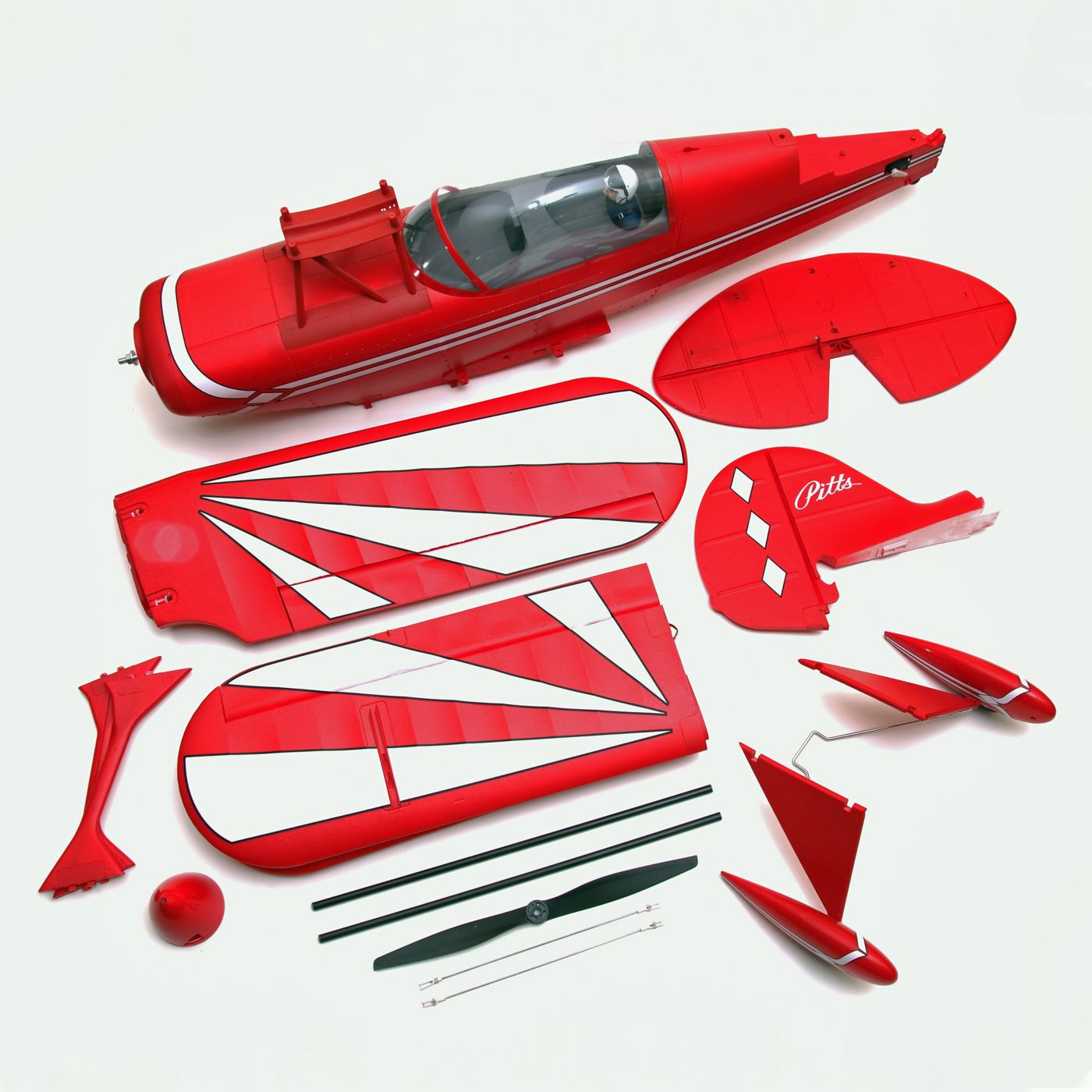

  • Screw-together assembly greatly reduces assembly time
  • Oversized battery compartment for larger, more powerful 6S packs
  • Robust and durable EPO construction

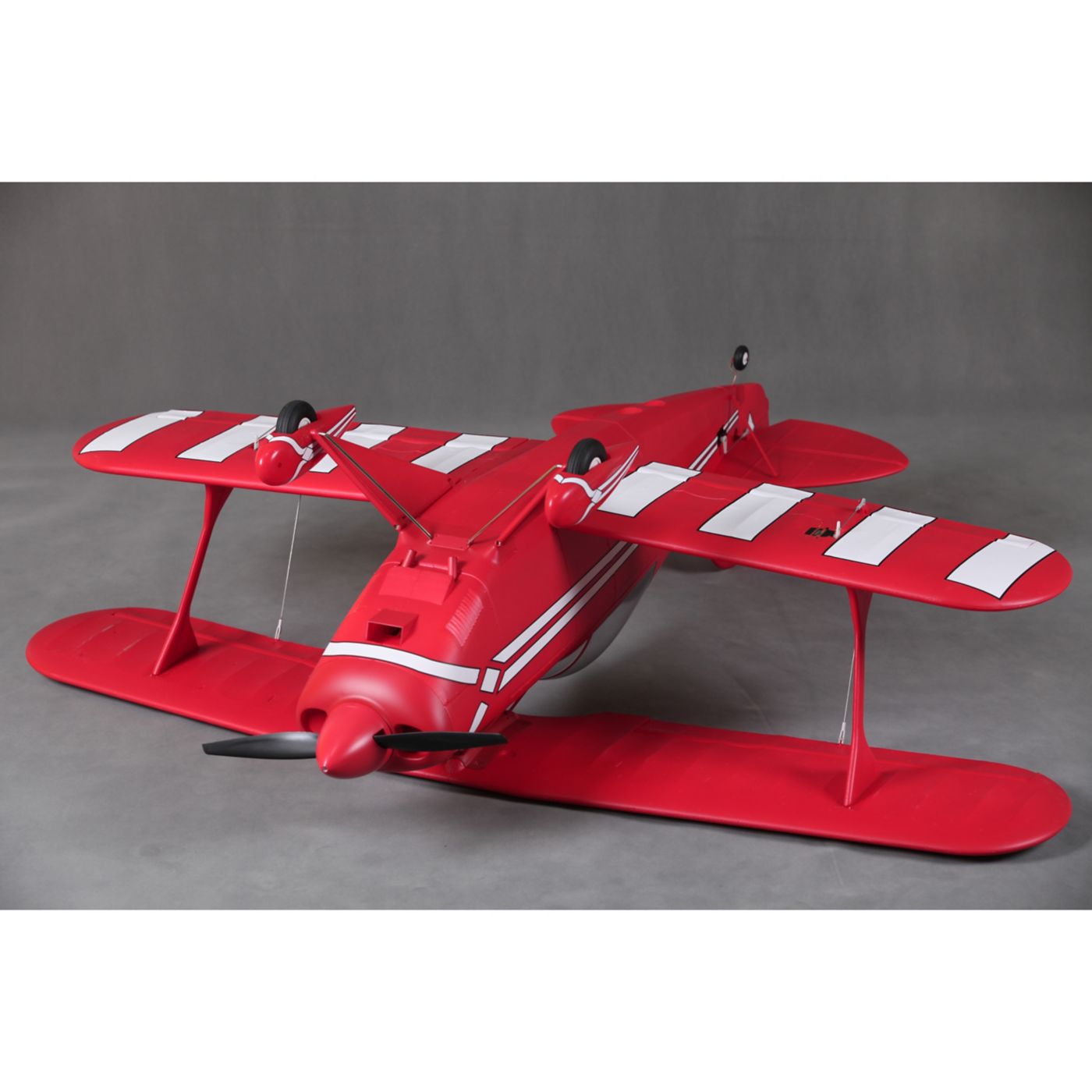

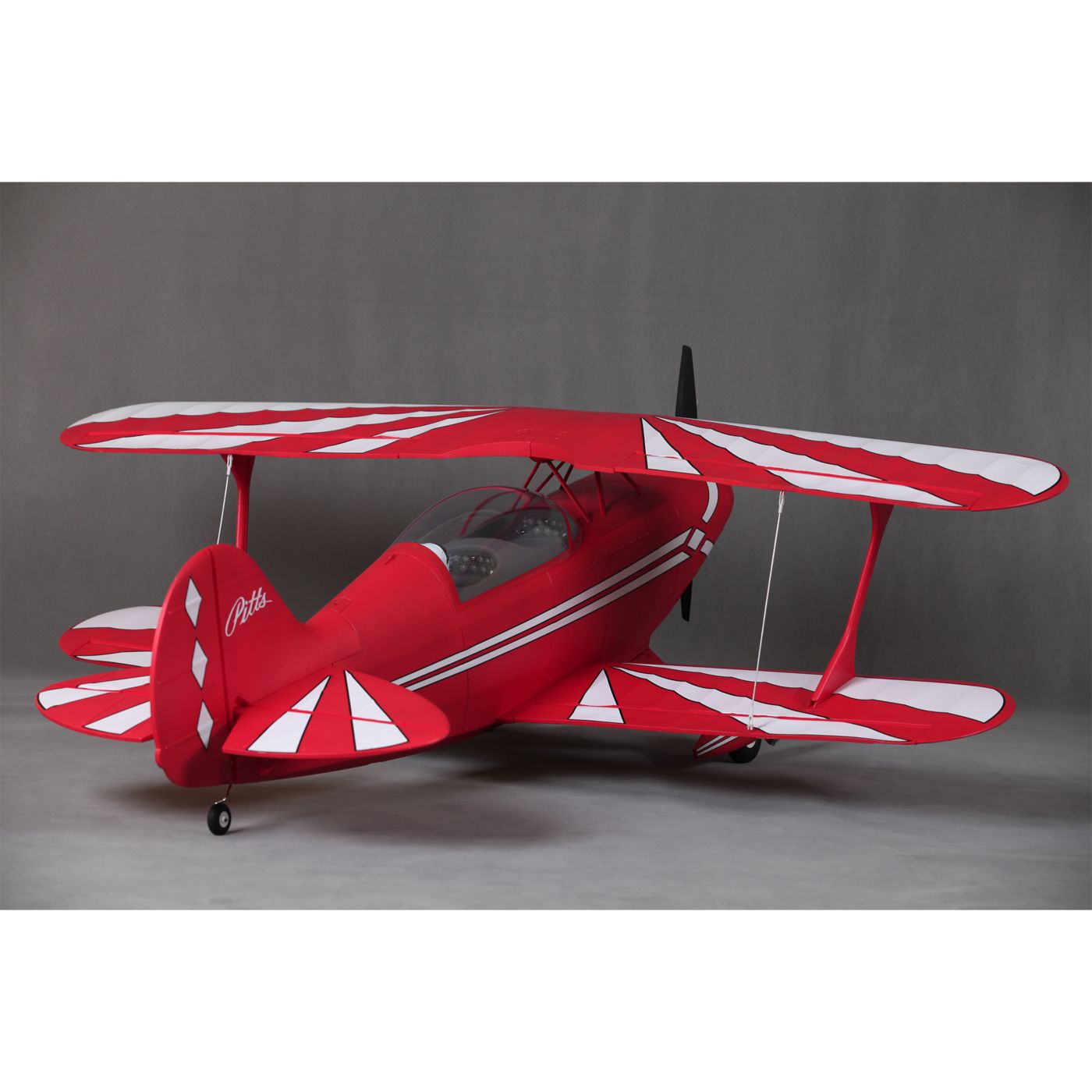

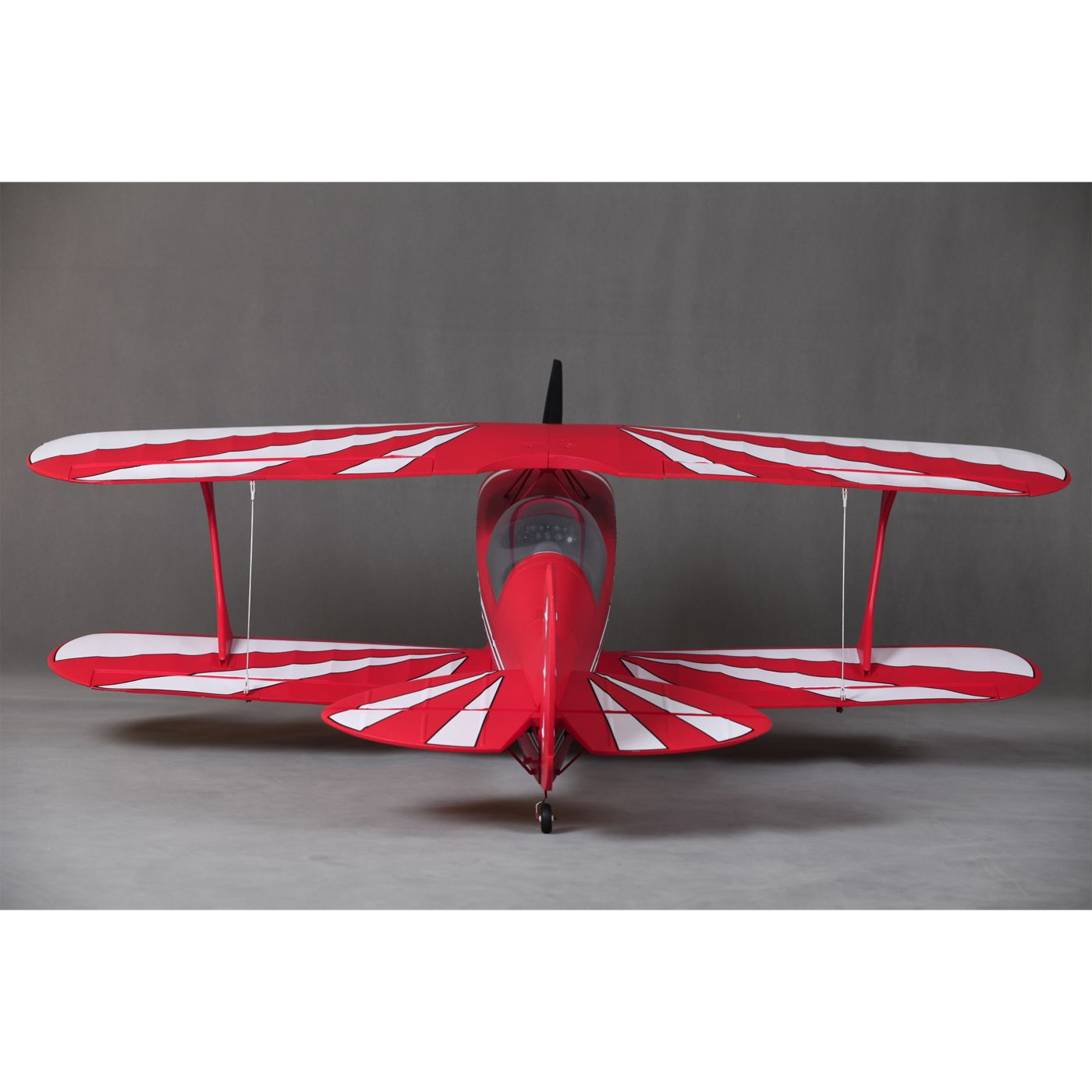

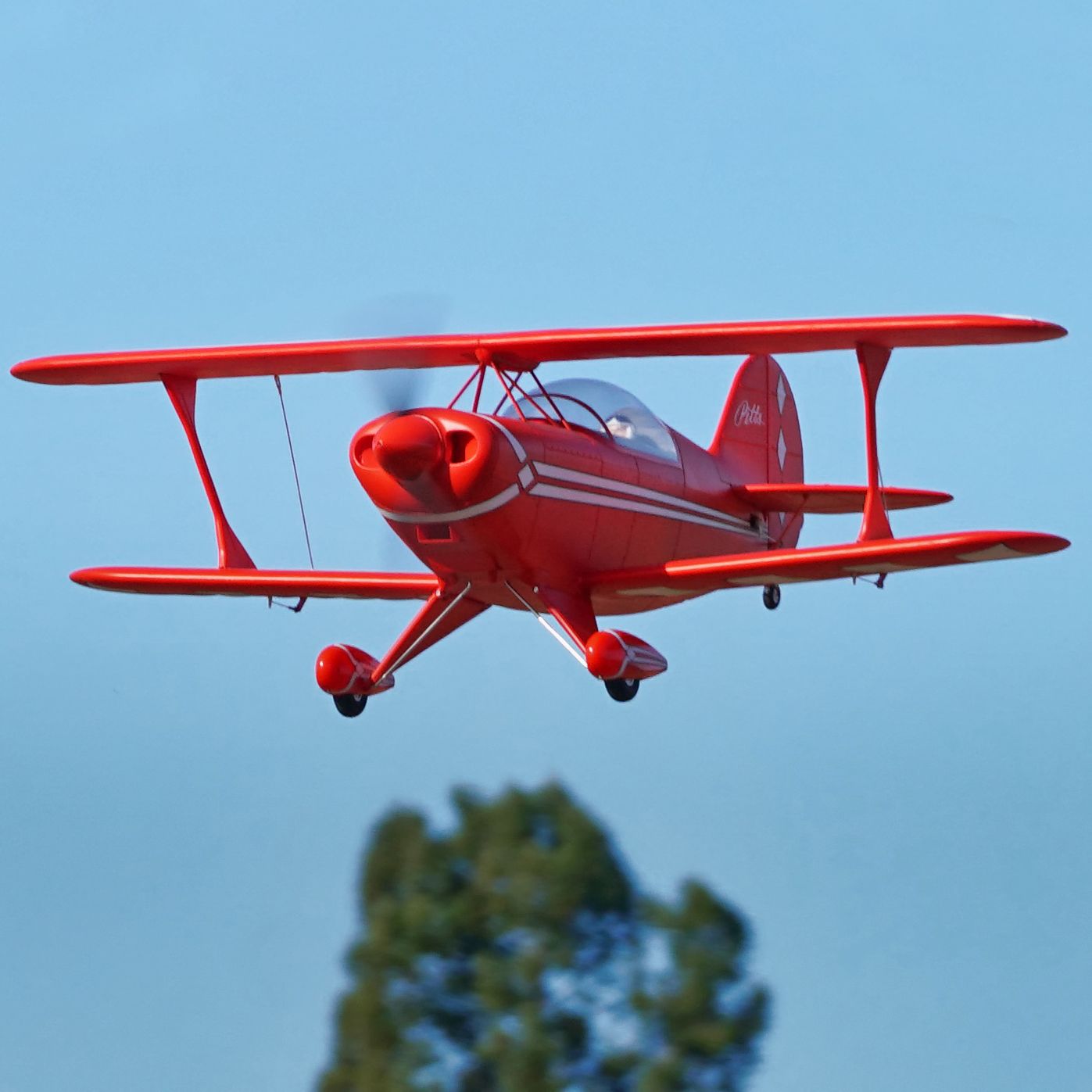

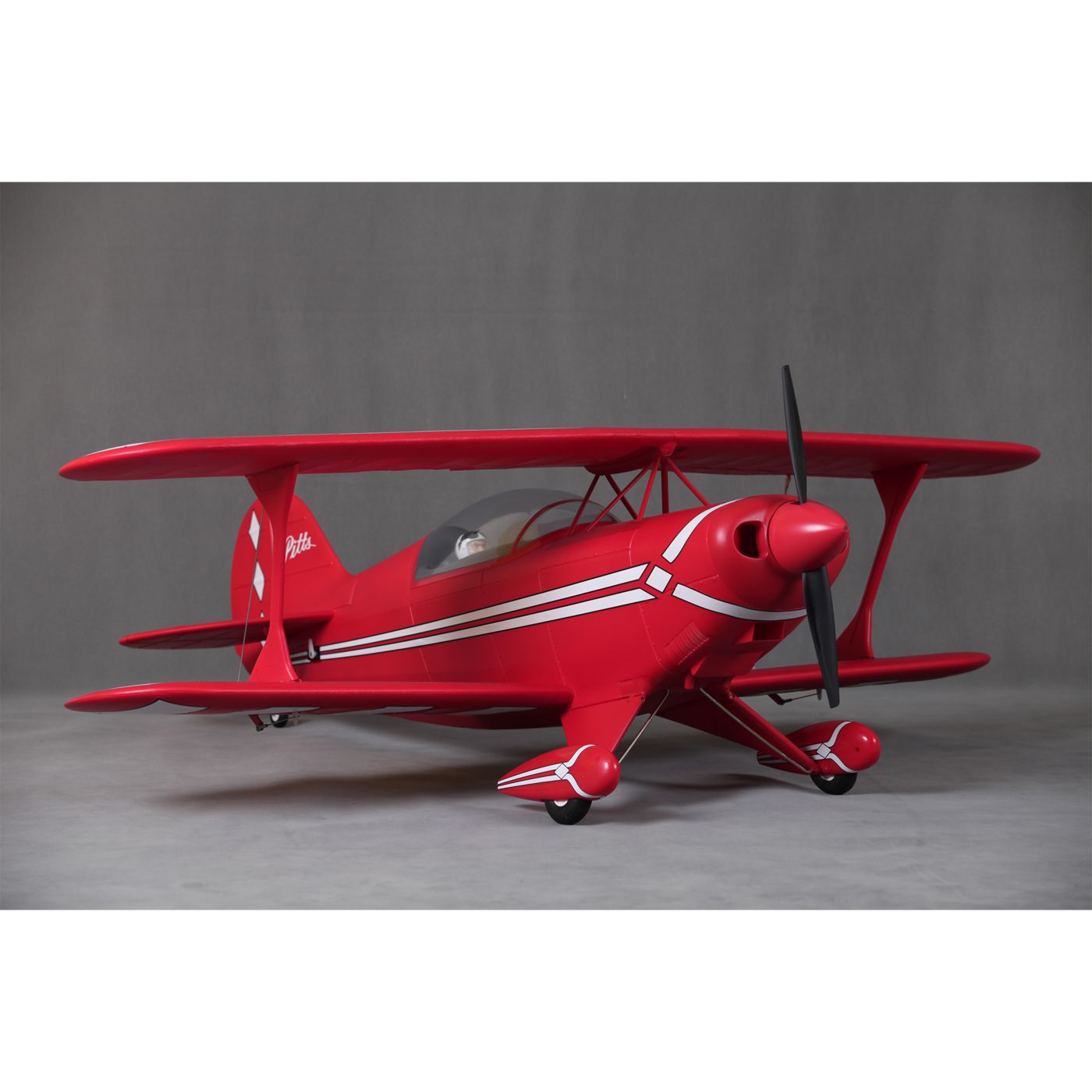

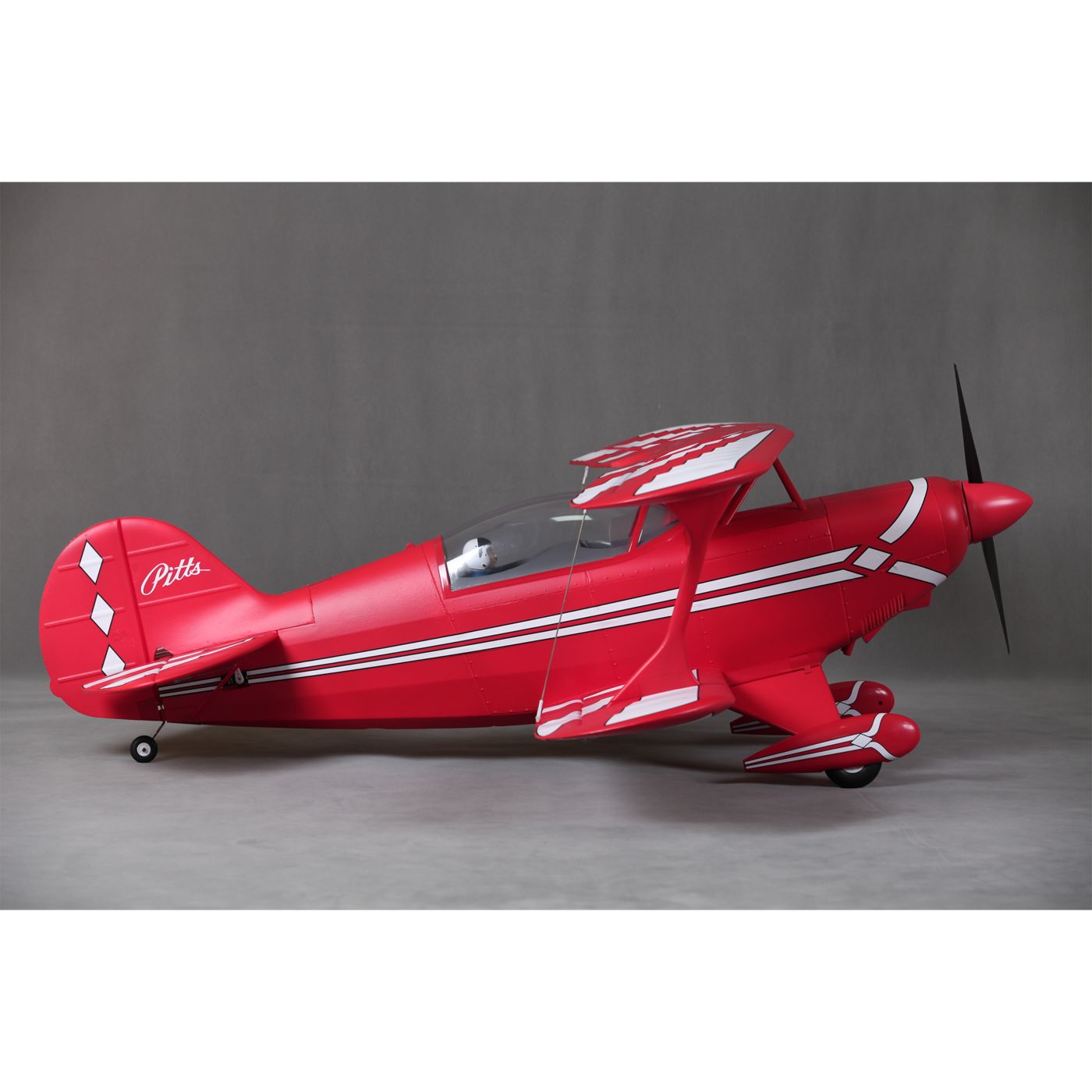

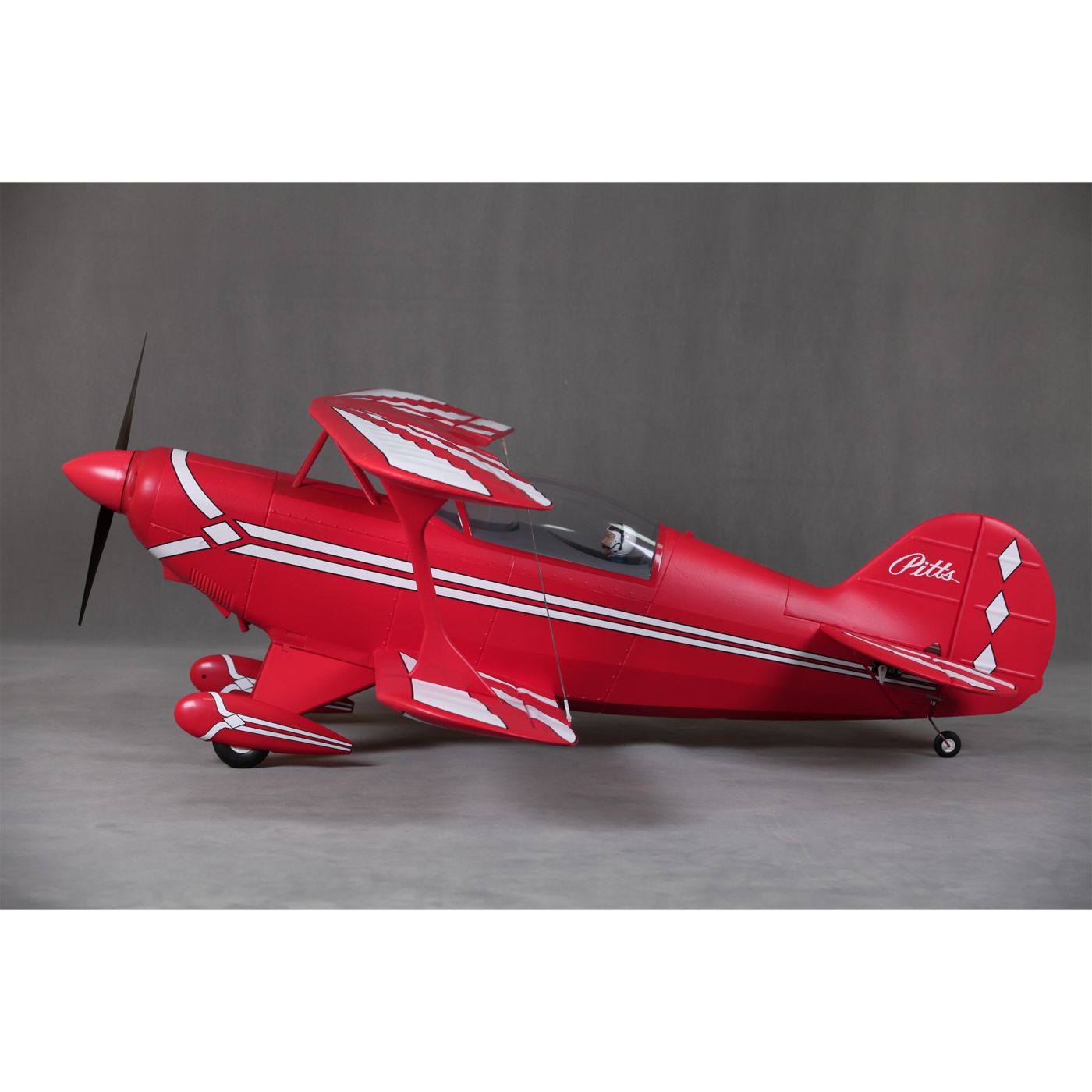

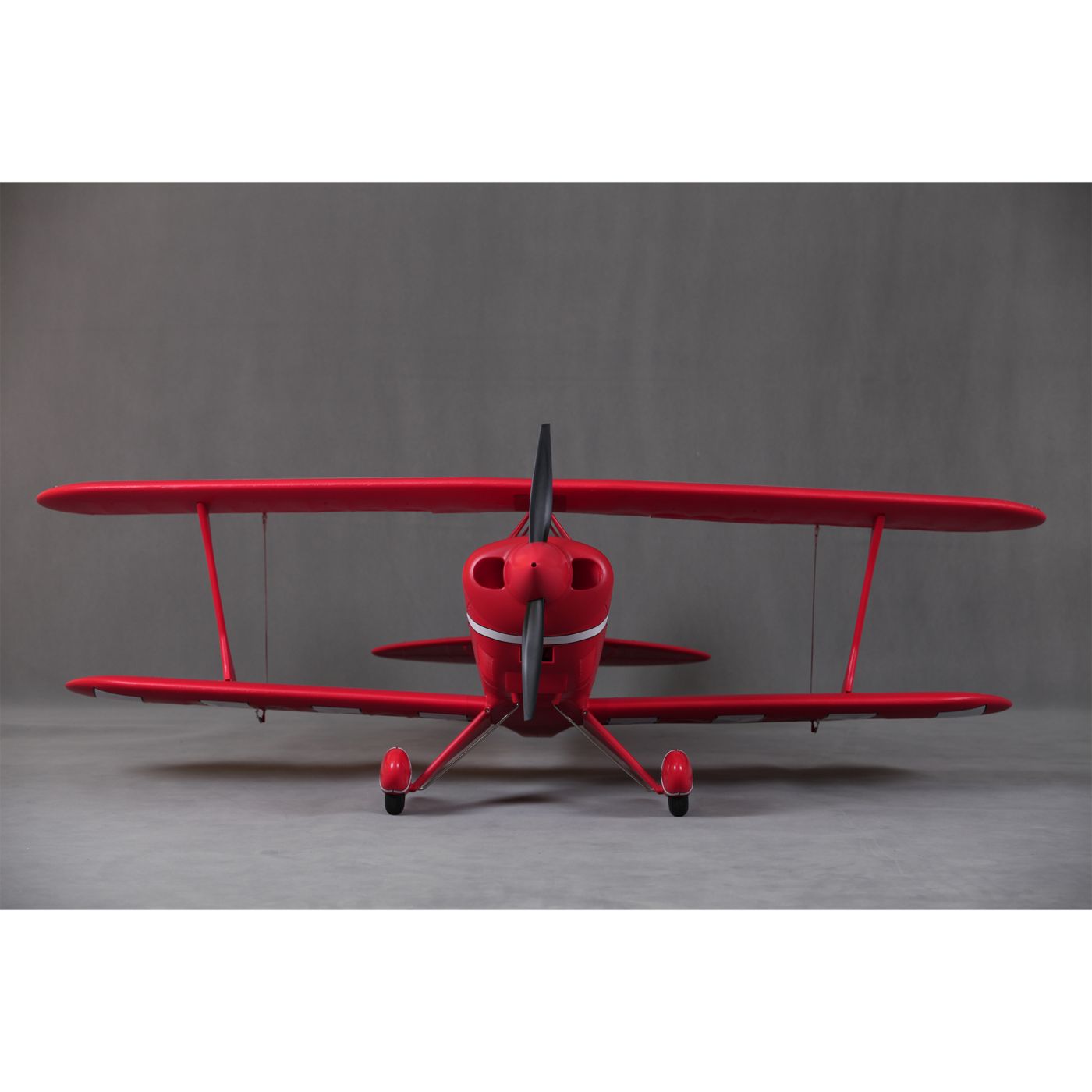

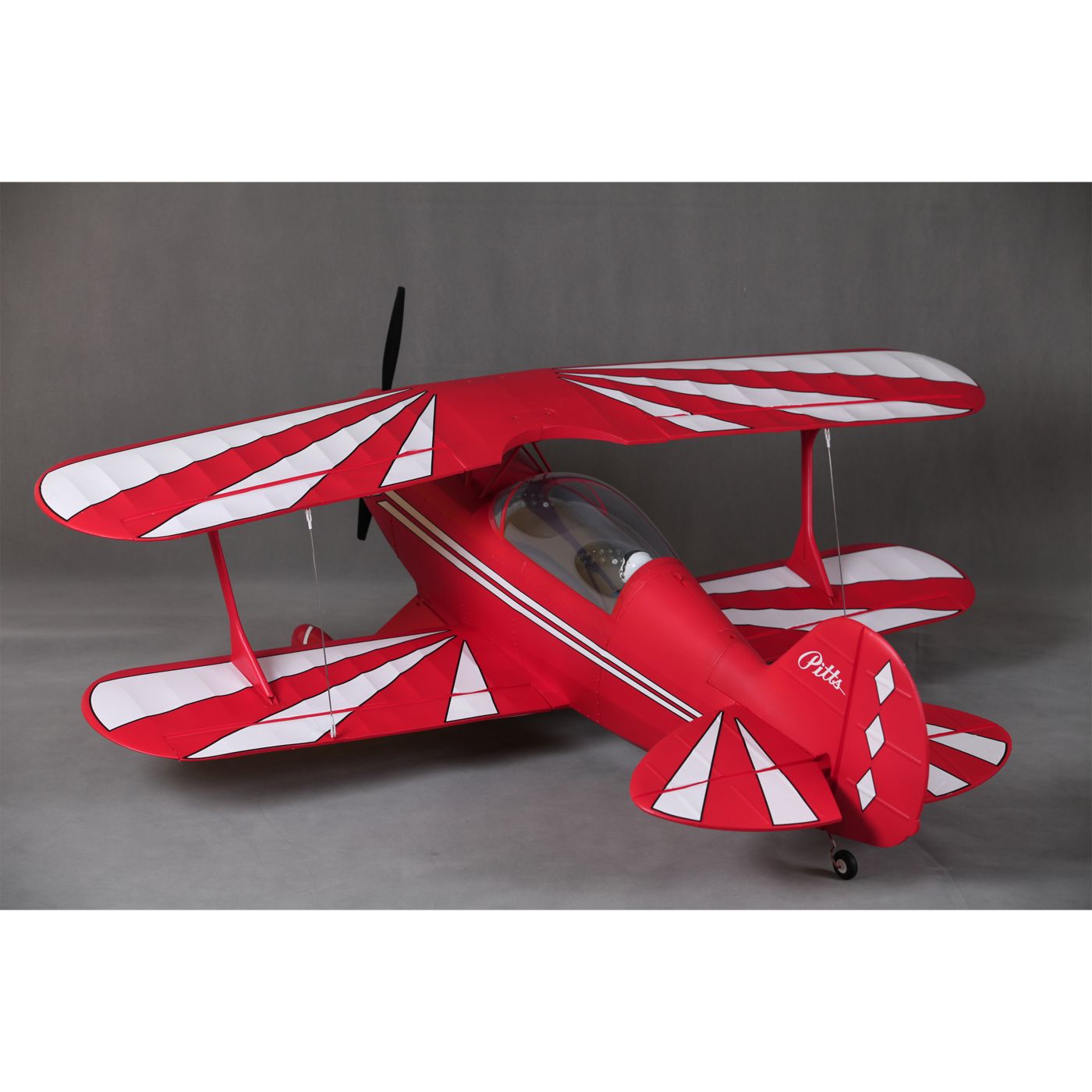

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

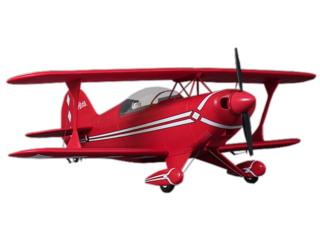

Radio icons

(Click on the icon you want to download)

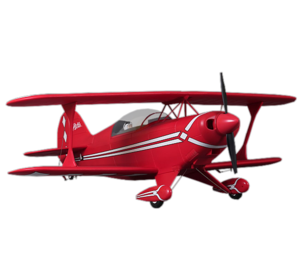

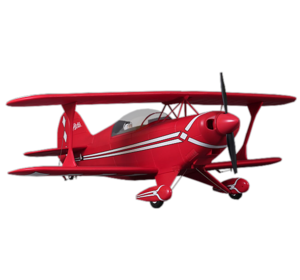

FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Pitts V2 in particular but at least we know they do distribute fms.

Where to buy

Ireland
Model Heli Service
check web site
Ship to: Ireland
France
Flash RC
check web site
Ship to: Europe
France
interModel
check web site
Ship to: France
USA
TOWER HOBBIES
check web site
Ship to: International
Usa
Horizon Hobby USA
check web site
Ship to: USA
Germany
Modellbau Berlinski
check web site
Ship to: International
Switzerland
Grischa Modellbau
check web site
Ship to: Switzerland
Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland
France
Absolu Modélisme
check web site
Ship to: France
United Kingdom
Als Hobbies
check web site
Ship to: United Kingdom
Belgium
Aerobertics
check web site
Ship to: Europe
USA
Atlanta Hobby
check web site
Ship to: USA
USA
AMain Hobbies
check web site
Ship to: USA
USA
Hobby Zone
check web site
Ship to: USA
USA
Graves RC
check web site
Ship to: USA
Netherlands
RC webshop
check web site
Ship to: Europe
United Kingdom
Model Shop Leeds
check web site
Ship to: United Kingdom
Austria
DMT
check web site
Ship to: Europe
United Kingdom
Arrow Models
check web site
Ship to: Europe
USA
Flite Test Store
check web site
Ship to: Worldwire
France
Turbines RC
check web site
Ship to: Worldwide
United Kingdom
tjd Models
check web site
Ship to: United Kingdom
Germany
Voltmaster
check web site
Ship to: Europe
France
miniplanes
check web site
Ship to: France

Wingspan: 1400mm (55.1 in)
Length: 1298mm (51.1 in)

Weight: 3500 g (7.7 lbs)
CG (Center of Gravity): 6.1 - 6.5" (155 - 165mm) back from leading edge of wing at fuselage side
Charger: Sold separately
Completion Level: Plug-N-Play
Landing Gear: Fixed main LG with steerable tail wheel
Length: 51.1 in (1298 mm)
Material: EPO foam
Minimum Required Radio: 6-channel
Minimum Speed Control: 50A with 5A BEC included
Motor Size: 4258
Propeller Size: 15x9
Recommended Motor Battery: 22.2V 4000mAh 35C
Servos: Four 17g
Wing Area: 748.5 sq in (48.3 sq dm)
Wing Loading: 0.15 oz-sq in (72.5 g-sq dm)
Wingspan: 55.1 in (1400 mm)

Variants

FMM126P
Pitts V2 (Red)
