Ranger 1800 from fms

Details

The FMS Ranger has quickly become well known amongst R/C pilots. Beginners love it for the simple assembly as well as its stable and predictable handling characteristics while experts love the Ranger as a weekend flyer with mild aerobatic capabilities. The screw-together assembly is very straight-forward and easy to put together.

So what could be better than the 1200mm Ranger? Well, a 50% larger 1800mm Ranger, of course! While quite a bit bigger, the 1800mm Ranger is still true to its roots – take off within 10ft and cruise at 1/3 throttle with the flaps down. STOL is in its DNA.

With a patented spring–cushioned nose gear and robust metal main landing gears, the 1800mm Ranger will absorb just about any landing impact. The durable, oversized wheels are designed specifically for rough field operations.

With landing lights, nav lights and strobes, the 1800mm Ranger is realistic and could fly well into the dusk. Optional floats add to the all-terrain fun of the Ranger.

Features

  • Power: Brushless 3541-750KV outrunner provides ample power, while the high quality 45A ESC has the output to match.
  • CNC metal landing gear absorbs even the hardest landings
  • Oversized wheels for all-terrain operations
  • STOL capable flight characteristics and excellent low speed handling
  • Realistic light set- Navigation lights, landing lights and strobes
  • Screw-together assembly
  • Optional floats
  • Functional flaps



Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

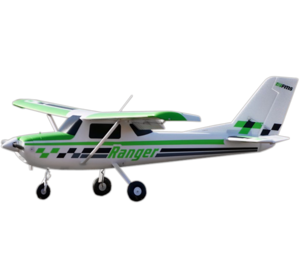

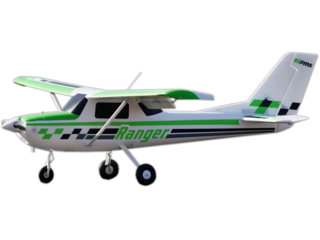

Radio icons

(Click on the icon you want to download)
FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ
Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Ranger 1800 in particular but at least we know they do distribute fms.

Where to buy

Ireland
Model Heli Service
check web site
Ship to: Ireland
France
Flash RC
check web site
Ship to: Europe
France
interModel
check web site
Ship to: France
USA
TOWER HOBBIES
check web site
Ship to: International
Usa
Horizon Hobby USA
check web site
Ship to: USA
Germany
Modellbau Berlinski
check web site
Ship to: International
Switzerland
Grischa Modellbau
check web site
Ship to: Switzerland
Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland
France
Absolu Modélisme
check web site
Ship to: France
United Kingdom
Als Hobbies
check web site
Ship to: United Kingdom
Belgium
Aerobertics
check web site
Ship to: Europe
USA
Atlanta Hobby
check web site
Ship to: USA
USA
AMain Hobbies
check web site
Ship to: USA
USA
Hobby Zone
check web site
Ship to: USA
USA
Graves RC
check web site
Ship to: USA
Netherlands
RC webshop
check web site
Ship to: Europe
United Kingdom
Model Shop Leeds
check web site
Ship to: United Kingdom
Austria
DMT
check web site
Ship to: Europe
United Kingdom
Arrow Models
check web site
Ship to: Europe
USA
Flite Test Store
check web site
Ship to: Worldwire
France
Turbines RC
check web site
Ship to: Worldwide
United Kingdom
tjd Models
check web site
Ship to: United Kingdom
Germany
Voltmaster
check web site
Ship to: Europe
France
miniplanes
check web site
Ship to: France

Wingspan: 1800mm (70.9 in)
Length: 1300mm (51.2 in)

Weight: 2400 g (5.3 lbs)
CG (Center of Gravity): 3.1-3.5 (80-90mm) back from leading edge of wing measured at the fuselage
Flying Weight: 5.3lbs (2400g) with floats
Landing Gear: Prebent wire, tricycle configuration
Length: 52" (1300mm)
Material: EPO foam
Minimum Required Radio: 4-channel
Minimum Speed Control: 45A
Motor Size: 3541-750Kv
Propeller Size: 12x7.5 2-blade
Recommended Motor Battery: 4S 3300-4000mAh 25C
Transmitter Range: Full
Trim Scheme Colors: Green,black and gray
Wing Area: 706.7 sq in (45.6 sq dm)
Wing Loading: 15.66 oz/sq in (47.8 g/sq dm)
Wingspan: 70.9" (1800mm)

Variants

FMS124P
Ranger 1800 (White Green)
