D.H. 88 Comet from glattCAD

Details

For the development of the glattCAD D.H. 88 Comet, a number of important parameters were analyzed and determined by software. They were incorporated in the construction. The Reynolds effect was counteracted with the implementation of a moderatet wist from the root ribs towards the tips at the expense of aerobatic capability. Fow slow loops, this causes the glattCAD Comet to fall out of the figure at the apex.

This can also happen during inverted flight. That these maneuvers do not really want to succeed is the price paid for more aileron effectiveness and safety. You can live with that, because the original Comet was not intended for such maneuvers either. In order to improve the dynamic stability around the z-axis, the tail surfaces have been slightly enlarged to improve the chance to react on an engine failure (combustion engine).

The theory´s correctness has been confirmed in practice with excellent results !

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

(Click on the icon you want to download)

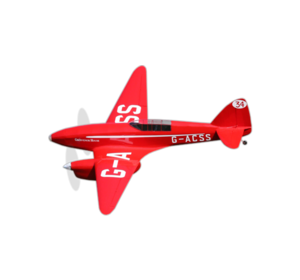

FrSky X20/X20s/XE Ethos
FrSky X18/X18s/TWIN Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ

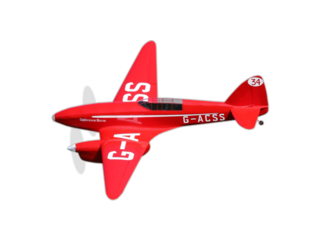

Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the D.H. 88 Comet in particular but at least we know they do distribute glattCAD.

Where to buy


Wingspan: 2680mm (105.5 in)
Length: 1770mm (69.7 in)

Weight: 11000 g (24.3 lbs)
  • Scale: 20%
  • Wingspan: 2680 mm
  • Length: 1770 mm
  • Take-off weight: 7000 to 11000 g

Variants

DH88
D.H. 88 Comet (Red)
