Carbon Cub FX-3 from hangar 9

Details

For the giant scale sport, scale and sailplane pilot, the new Hangar 9® Carbon Cub FX-3 100-200cc is the largest Cub we've ever created and one of the largest in the market featuring superb scale details with the incredible flight performance Hangar 9 customers expect. Featuring a 165-inch wingspan, this massive model is the embodiment of giant scale, yet is practical enough to fly every day. The two-piece wings with folding wing struts and removable stabs allow for convenient transportation and set up. It comes with multiple scale details including a scale, sprung undercarriage that uses a solid machined damper with heavy duty springs as per the full scale aircraft, cockpit panel, tow release, super scale tail wheel assembly, and more meaning this Carbon Cub will turn heads everywhere you fly it. Like the full-size Cub, shock-absorbing 8.5" inch tires with aluminum hubs take most of the bounce out of tough terrain. The two-piece fiberglass cowl allows for easy access to engine and fuel system while the high-density 3S Lipo compatible LED landing and navigation lights shine bright for added realism. Designed to accept 100 – 200cc gasoline engines, the complete hardware kit is included and makes mounting the power system quick and easy. The optional-use, included operational tow release lets this Cub be the perfect companion for your sailplane needs. The Hangar 9 Carbon Cub FX-3 100-200cc is a one-of-a-kind model delivering an authentic in-flight experience.

Features:

  • Expertly constructed with lightweight, laser-cut balsa and plywood
  • Large 8.5" inch tires with aluminum hubs makes for smooth landing even in tough terrains
  • Two-piece fiberglass cowl allows for easy access to engine and fuel system
  • Operational flaps for STOL capabilities
  • Functional high-density 3S Lipo compatible LED landing and navigation lights
  • Designed to accept 100 - 200cc gasoline engines
  • Functional tail flying wires
  • Removable stabilizer with just 4 screws
  • Functional side double doors with working scale locking mechanism and alloy handle
  • Cockpit details include seats and scale dash panel
  • Durable transportation bags included to protect the wings and tails.
  • Sprung landing gear with metal shock struts and scale suspension system
  • Pre-hinged, scale-type aileron and flap hinges help you save on build time
  • Two-piece plug in wings for easier transportation and field assembly
  • Folding airfoil-shaped wing struts with matching paint finish
  • Optional-use operational tow release
  • Heavy duty, and super scale tail wheel assembly with included tail wheel
  • Built-in exhaust tunnel supports a variety of canister and pipe options
  • Complete hardware kit with engine and motor mounting hardware
  • Covered in genuine Hangar 9 UltraCote® film
  • Optional-use operational tow release included in each kit.

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

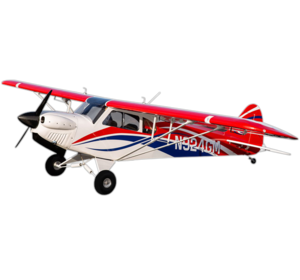

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

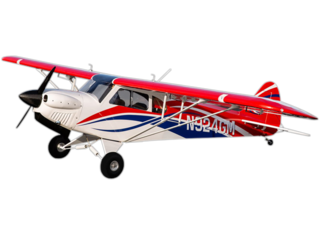

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Carbon Cub FX-3 in particular but at least we know they do distribute hangar 9.

Wingspan: 4200mm (165.4 in)
Length: 2920mm (115 in)

Weight: 27000 g (59.5 lbs)
CG (Center of Gravity): 6-8 in (152.4-203mm) measured from leading edge of wing at the fuselage side
Control Throw (Flaps): Take off: 1-9/16 in (40mm), Landing: 3-1/8 in (80mm)
Control Throw - High (Ailerons): Up: 3-1/8 in (80mm), Down: 2-5/16 in (60mm)
Control Throw - High (Elevator): Up and Down: 1-15/16 in (50mm)
Control Throw - High (Rudder): Left and Right: 5-1/8 in (130mm)
Control Throw - Low (Ailerons): Up: 1-15/16 in (50mm), Down: 1-9/16 in (40mm)
Control Throw - Low (Elevator): 1-3/16 in (30mm)
Control Throw - Low (Rudder): Left and Right: 3-1/8 in (80mm)
Engine Size: 100 - 200cc gasoline
Expo (Ailerons): High: 30%, Low: 20%
Expo (Elevator): High: 30%, Low: 20%
Expo (Rudder): High: 30%, Low: 20%
Flying Weight: 55 -61lbs (25-27kg)
Landing Gear: Fixed main LG with steerable tail wheel
Length: 115 in (292cm)
Material: Balsa and ply
Minimum Required Radio: 8-channel
Recommended Receiver Battery: 4000mAh 2S 7.4V
Scale: Giant
Servos: 8 required
Spinner Size: 6" (152mm)
Stabilizer Tube Length: 23" (58cm)
Stabilizer Tube OD: 1/2" (12mm)
Wing Area: 3979 sq in (256.7sq dm)
Wing Loading: 37.74 oz /sq. ft (11.52 kg / sq. m)
Wing Tube Length: 53 in (135cm)
Wing Tube OD: 1-5/8 in (41mm)
Wingspan: 165 in (4.2m)
