Jackal 50 from hangar 9

Details

The Jackal 50 was created to give sport pilots all the speed and excitement of a jet without the complexity, costs or precocious flying manners of one. Its sleek, swept-wing design makes it possible to achieve scorching speeds using nothing more than Evolution’s economical .60NX engine and a high-performance tuned muffler. It also gives you the option of pushing the speed envelope even further with optional mechanical or pneumatic retracts (HAN501 or HAN502 –sold separately).

Assembling the Jackal 50 is as simple as any other Hangar 9 sport plane. Its low parts count and innovative assembly features, like the bolt-on horizontal stab and elevator servo tray, make it possible to have yours flying in a few evenings. Even the flaps are cut and hinged for you. Just drop in a servo and hook them up.

Features:

  • Perfect match for the Evolution .60NX with a high-performance muffler
  • Airfoil optimized for speed and stability by George Hicks
  • Sheeted foam core wing
  • Airfoil-shaped vertical and horizontal stabilizers
  • Light balsa/plywood construction
  • Painted top hatch with clear canopy
  • White CNC aluminum spinner included
  • Factory-installed flaps
  • Pre-hinged and control horns preinstalled (except elevator which must be hinged by the modeler)
  • Robart pneumatic or mechanical retract ready
  • Painted fiberglass cowl
  • All necessary hardware included

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

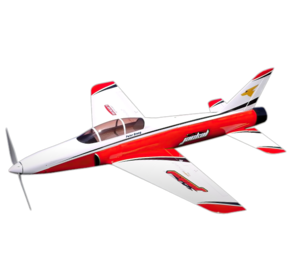

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

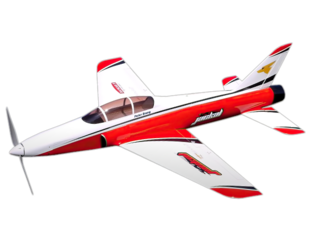

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 1600mm (63 in)
Length: 1420mm (55.9 in)

Weight: 3800 g (8.4 lbs)
  • Wingspan: 1600 mm (63.0 in)
  • Length: 1420 mm (56.0 in)
  • Wing Area: 44.5 dm² (690 sq in)
  • Weight: 3.4 to 3.8 kg (7.50–8.25 lb)
  • Servos: 7 servos (6-channel or greater with 8–9 servos if using retracts)
  • Engine: .52–.60 2-stroke
