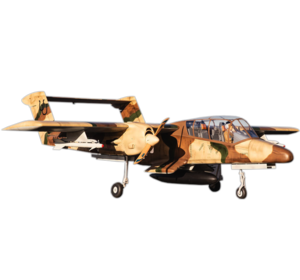

OV-10 Bronco from hangar 9

Details

For the giant-scale warbird enthusiast and experienced pilot, the new Hangar 9® OV-10 Bronco is our largest giant-scale warbird to date. It features many scale details and the incredible flight performance Hangar 9 customers expect. As a unique subject, the OV-10 Bronco features many scale details such as highly detailed satin-finish printed covering and ultra-scale accessories including pilot, cockpit details and sidewinder missiles. The fully painted fiberglass cowlings feature added weathering for scale realism. Featuring a 108-inch wingspan, this model represents giant scale flying, yet is practical enough to fly every day. The three-piece plug-in wing with center section landing gear support allows for easy transportation and field assembly. Designed to accept 30 – 35cc gasoline engines as well as electric power, the complete hardware kit is included and makes mounting the power system quick and easy. Like the full-size warbird, the scale undercarriage legs are sprung for shock absorption and made from high grade aluminum, taking most of the bounce out of tough terrain. Available separately, the required electric retract set with shock-absorbing scale struts provides additional scale realism. The Hangar 9 OV-10 30cc is a matchless model delivering the flight experience of a versatile twin-engine aircraft.

Features

  • Finely, detailed satin-finish printed covering includes panel lines, rivets, and weathering
  • Expertly constructed with laser-cut balsa and plywood
  • Fully painted fiberglass cowlings with scale details including weathering
  • Pre-painted plastic spinners
  • 3-Piece plug-in wing with center section landing gear support for easy transportation and field assembly
  • Designed to fit 30-35cc gas engines or equivalent electric power systems
  • Large top hatch with two spring latch system
  • Cockpit details include (1) painted pilot figure, two seats and 3D instrument panel
  • Includes mounts for either gas or electric power options
  • Functional 4-panel flaps deploy using internal linkages
  • Other scale details include guns, sidewinder missiles, and centerline drop tank
  • Painted plastic front turret adds scale realism
  • Available Hangar 9 OV-10 Bronco electric retract set with shock-absorbing scale struts (sold separately)
  • Includes number decals for customization and spare sheets of covering for covering repairs
  • Complete hardware set included

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the OV-10 Bronco in particular but at least we know they do distribute hangar 9.

Wingspan: 2743mm (108 in)
Length: 2870mm (113 in)

Weight: 25000 g (55.1 lbs)
Airfoil Shape Semi-symmetrical
Approximate Assembly Time 20+ hours
Approximate Flight Time Approximately 6 minutes
CG (Center of Gravity) 6.5" (165mm)
Completion Level Almost Ready-To-Fly
Engine Size 30cc gasoline engine required
Flaps Yes
Flying Weight 2001-25000g
Power Type Electric/Gas
Landing Gear None (electric retracts require separate purchase)
Material Wood
Minimum Required Radio 12 channel, full range
Minimum Speed Control 100A
Motor Size 120 - 180 required
Motor Type Brushless
Product Length 113" (2870 mm)
Product Weight 40 - 42lbs (18.1 - 19.05kg)
Propeller Size 18" (457 mm)
Prop Range 17 - 20"
Recommended Motor Battery 6-12s 5000-10000mAh
Retracts Sold Separately
Servos Sold Separately
Spinner Size 3.75" (95 mm)
Steering Yes
Trim Scheme Colors Printed covering
Wing Area 15.75 sq in (1.017sq dm)
Wing Loading 42.66 oz/sq ft (130.2 g/sq dm)
Wingspan 108" (2743 mm)
