Timber 110 from hangar 9

Details

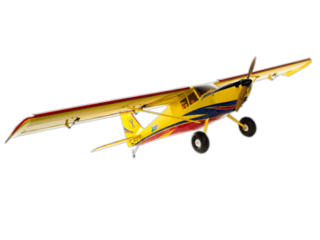

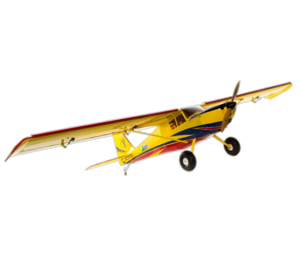

The Hangar 9® Timber® 110 30-50cc is a 110-inch wingspan all balsa and plywood almost-ready-to-fly airplane based on the popular E-flite® Timber series. Its innovative design combines the spirited performance of a sport plane with the versatility of a bush plane so you can have it all. It offers a flight experience unlike any other, from STOL flying to 3D aerobatics.

The Timber is equipped with a combination of features and details that will satisfy intermediate to advanced pilots alike. Its lightweight design, combined with high-grade balsa and plywood construction, provides everything you could want in a giant-scale STOL model. The two-piece plug-in wings feature optional-use leading edge devices and operational flaps that make for impressive short field operation, even from less-than-ideal runways. The assembly is simple so that your time at the bench can be as brief and enjoyable as possible. The majority of the components bolt together, and the complete hardware package includes everything needed to finish the model. Out of the box; all control surfaces are prehinged (except rudder), while multiple hatches allow for convenient access to electronics and flight batteries. The all-wood airframe is finished in genuine Hangar 9 UltraCote® covering which is well known for its durable finish, brilliant looks and ease of maintenance. The finished aluminum sprung landing gear and 7" tundra-style tires complete the look of the Timber 110, and the Hangar 9 XCub 60cc sprung landing gear is a drop-in fit to finished the rugged looks with distinction. The Timber also 110 comes with optional-use lens covers to use with an LED light set (available separately).

Features:

  • High quality balsa and plywood construction provides a strong and lightweight airframe
  • Vibrant and eye-catching UltraCote covering for a high-quality finish and good looks
  • Functional flaps expand the flight envelope and make for STOL take offs and landings
  • Multiple hatches allows plenty of opening space for assembly and battery changes
  • Large 7" tundra-style tires included
  • Optional-use leading edge devices allows for even shorter take offs and landings (included)
  • Pre-hinged control surfaces (except rudder) help you save on build time
  • Two-piece plug-in wings with carbon fiber wing tube allows for easy transportation and storage
  • Removable horizontal stabilizer for easy field assembly
  • Accepts Hangar 9 CubCrafters XCub 60cc articulated landing gear (sold separately)
  • Tool-free field assembly
  • Painted fiberglass cowl requires no finishing by the customer
  • Painted aluminum landing gear matches the covering perfectly
  • Designed to accept gas/petrol engines and electric motors
  • Float ready, with hard points for optional float set
  • Complete hardware kit with engine and motor mounting hardware

Pictures

A PHP Error was encountered

Severity: Notice

Message: Undefined index: query

Filename: aircraft/view.php

Line Number: 420

Backtrace:

File: /homepages/32/d285396017/htdocs/air-rc/application/views/aircraft/view.php
Line: 420
Function: _error_handler

File: /homepages/32/d285396017/htdocs/air-rc/application/controllers/Aircraft.php
Line: 29
Function: view

File: /homepages/32/d285396017/htdocs/air-rc/index.php
Line: 315
Function: require_once

A PHP Error was encountered

Severity: Warning

Message: key() expects parameter 1 to be array, null given

Filename: aircraft/view.php

Line Number: 420

Backtrace:

File: /homepages/32/d285396017/htdocs/air-rc/application/views/aircraft/view.php
Line: 420
Function: key

File: /homepages/32/d285396017/htdocs/air-rc/application/controllers/Aircraft.php
Line: 29
Function: view

File: /homepages/32/d285396017/htdocs/air-rc/index.php
Line: 315
Function: require_once

A PHP Error was encountered

Severity: Notice

Message: Undefined index: query

Filename: aircraft/view.php

Line Number: 421

Backtrace:

File: /homepages/32/d285396017/htdocs/air-rc/application/views/aircraft/view.php
Line: 421
Function: _error_handler

File: /homepages/32/d285396017/htdocs/air-rc/application/controllers/Aircraft.php
Line: 29
Function: view

File: /homepages/32/d285396017/htdocs/air-rc/index.php
Line: 315
Function: require_once

A PHP Error was encountered

Severity: Notice

Message: Undefined index: query

Filename: aircraft/view.php

Line Number: 422

Backtrace:

File: /homepages/32/d285396017/htdocs/air-rc/application/views/aircraft/view.php
Line: 422
Function: _error_handler

File: /homepages/32/d285396017/htdocs/air-rc/application/controllers/Aircraft.php
Line: 29
Function: view

File: /homepages/32/d285396017/htdocs/air-rc/index.php
Line: 315
Function: require_once




This article is an extract from the Wikipedia article "", which is released under the Creative Commons Attribution-Share-Alike License 3.0

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E

Similar Models

Some content in menu 2.

Where to buy

France
Flash RC
check web site
Ship to: Europe
Usa
Horizon Hobby USA
check web site
Ship to: USA
Germany
Horizon Hobby Europe
check web site
Ship to: Europe
Ireland
Model Heli Service (MHS)
check web site
Ship to: Ireland
USA
TOWER HOBBIES
check web site
Ship to: International
Winspan: 2790mm (109.8 in)
Length: 1730mm (68.1 in)

Weight: 8600 g (19 lbs)
Aileron: Dual servo control
Airfoil Shape: Semi-symmetrical
Approximate Assembly Time: 10-15 Hours
CG (Center of Gravity): 3.5" (89mm) behind leading edge of wing for sport flying, 4" (101.6mm) for STOL flying
Charger: Compatible with selected batteries (sold separately)
Completion Level: Almost Ready-To-Fly
Control Throw (Flaps): Take Off 1-3/16" (30mm), Landing 3-15/16" (100mm)
Control Throw - High (Ailerons): High Up 1-11/32" (60mm), High Down 1-31/32" (50mm) Mid Up 1-31/32" (50mm), Mid Down 1-9/16" (40mm)
Control Throw - High (Elevator): High 1-31/32" (50mm), Mid 1-3/8" (35mm)
Control Throw - High (Rudder): High 3-15/16" (100mm), Mid 3-1/8" (80mm)
Control Throw - Low (Ailerons): Up 1-9/16" (40mm) , Down 1-3/8" (35mm)
Control Throw - Low (Elevator): 1" (25mm)
Control Throw - Low (Rudder): 2-13/16" (65mm)
Expo (Ailerons): High 30%, Mid 25%, Low 20%
Expo (Elevator): High 30%, Mid 25%, Low 20%
Expo (Rudder): High 30%, Mid 25%, Low 20%
Flaps: Yes
Landing Gear: Fixed main with steerable tail wheel
Material: Balsa and ply
Minimum Required Radio: 6-channel
Minimum Speed Control: 120A
Motor Size: 160 - 180
Propeller Size: 20x10E for electric motor or 18x10, 22x8 or 23x8 for gasoline engine (sold separately)
Recommended Motor Battery: 10 - 12S 5000-7000mAh
Recommended Receiver Battery: 2S 7.4V 4000mAh
Retracts: No
Rudder: Single servo control
Servos: Seven high torque, high speed, high voltage, one more required for throttle if using gas engine (sold separately)
Spinner Size: 3" (76mm) sold separately
Transmitter Range: Full
Trimscheme Colors: Hangar 9 UltraCote, Bright Yellow, Deep Blue, True Red and Silver
Wing Area: 1466 sq in (94.6 sq dm)
Wing Loading: 29.4 oz/sq ft (89.71 g/sq dm)
