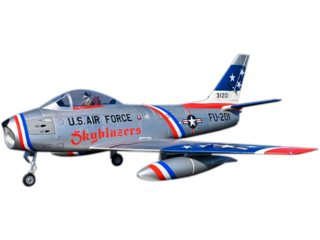

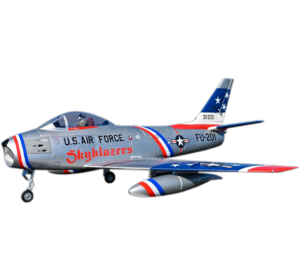

F86 from HSDjets

Details

The HSD F-86 model is a faithful and quality reproduction of the full-size model equipped with an EDF120mm 10-blades turbine with a Hobbywing 5268 motor, a Hobbywing 160A HV ECS and metal servos.

Features:

  • Solid EPO foam Carbon fiber reinforced airframe
  • Powerfull propulsion system EDF120mm equipped with a Hobbywing 5268 motor
  • Equipped with a Hobbywing 160A HV ECS
  • Equipped with all metal digital servos
  • Exclusive MFC-2085 control system which reduces complex wiring
  • Very easy and secured assembly with integrated wing connections
  • Bright LEDs entire system for landing, navigation
  • 3D foam packaging design for the best protection of the model

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 1720mm (67.7 in)
Length: 1715mm (67.5 in)

Weight: 80000 g (176.4 lbs)

Wingspan 1720 mm (67.7 in)
Length 1715 mm (67.5 in)
Flying Weight 8 kg (15.4 lb) with 12S / 22.2V / 5200mAh / 45C Li-Po×2 PCS
Flying time 3～5 minutes
Wing area 64.34 dm2
Wing load 124.3 g/dm2
Main material 35 times EPO
Painting surface Matte environmental water-borne paint + decal
Suitable experience level □Zero basis □Beginner ■Intermediate □Advanced
PNP Assembly difficulty □☆10mins ■★☆30mins □★★60mins
Suitable for ambient temperature 0℃～40℃
Radio System 8 channel (required & not included)
Control System MFC-2085
Motor 5268-KV640(Inner rotor)
EDF S-EDF 120mm-10 blade
ESC Hobbywing 160A brushless
Servos

25g×2 Metal gear with 560mm lead (Left & Right ailerons forward)
25g×2 Metal gear with 410mm lead (Left & Right flap forward)
25g×3 Metal gear with 190mm lead (Left & Right Elevator / Vertical tail forward)
25g×1 Metal gear with 230mm lead (Front wheel cover plate forward)
7.4V 12g×3 Metal gear with 380mm lead with protection function (Nose wheel steering / Rear wheel cover plate forward)
7.4V 12g×2 Metal gear with 80mm lead with protection function (Retarder plate forward)
Recommended Power Battery 6S,22.2V,5200mAh,45C×2,LiPo with AS150 type plug(required & not included)
Recommended Receiver Battery 2S,7.4V,2200～5200mAh×2,LiPo with XT60 type plug(required & not included)
