Ultra Flip 3D from Hype RC

Details

The Ultra Flip 3D is the perfect aerobatic trainer for uncompromising 3D aerobatics. Thanks to its slow basic speed and high agility, even the most difficult maneuvers can be performed with ease. The completely neutral, always predictable flight behavior gives the pilot a familiar flight feeling in no time! The high fuselage shape and winglets on the wingtips give the Ultra Flip 3D particularly stable knife-edge flight characteristics.

The Ultra Flip 3D is built using a foam construction. Fuselage, wings, and tail surfaces are made from the proven HypoDur® material, which offers high strength values at minimal weight. All molded parts come pre-finished with the decorative design.

Elevator, rudder, and ailerons are designed as gapless Elastoflaps, and the control horns are already pre-installed. The linkages to the servos are also pre-assembled. Both aileron servos are mounted directly in the wing so that the control surfaces are actuated without play.

The canopy is made from tinted smoke glass and precisely glued in place. The installation of the RC system and battery changes are carried out through an opening on the underside of the fuselage. All components are weight-optimized and stand out thanks to the precise manufacturing and high-quality workmanship.

In the air, the Ultra Flip 3D impresses with its excellent flight characteristics and unmistakable appearance. Knife-edge flight, spins, snap maneuvers – with the Ultra Flip 3D, all imaginable aerobatic figures can be performed. The model flies completely neutrally through all maneuvers, always giving the pilot a precise control feel.

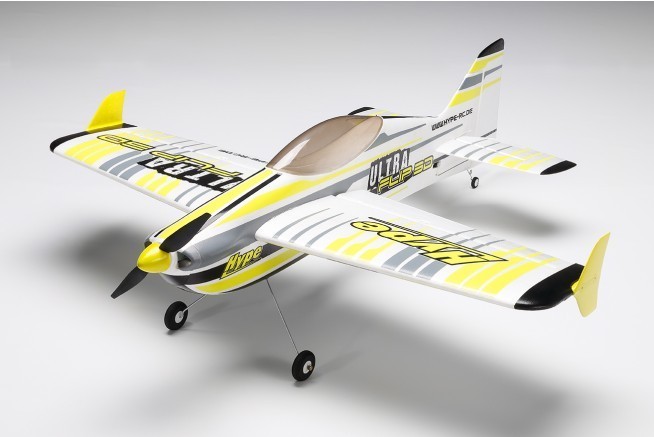

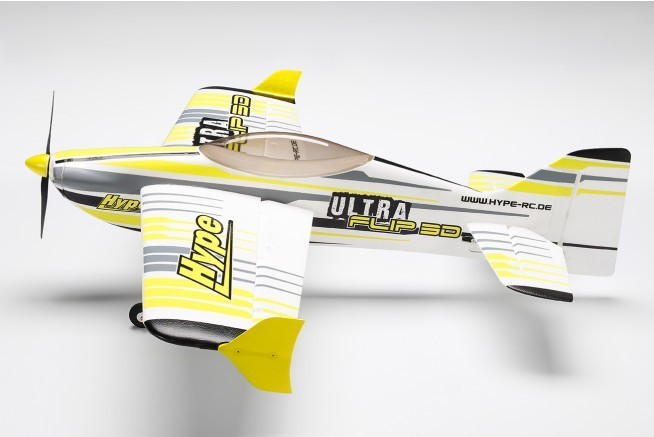

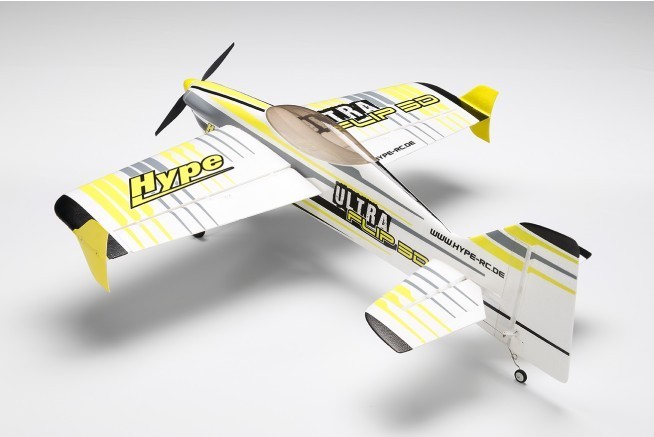

Pictures

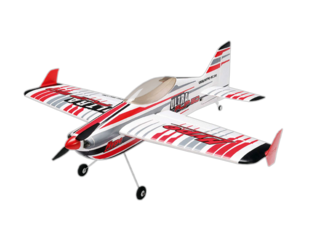

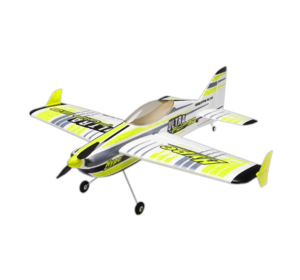

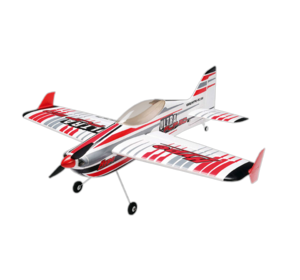

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 1200mm (47.2 in)
Length: 1340mm (52.8 in)

Weight: 1690 g (3.7 lbs)
  • Wingspan: 1200 mm (47.2 in)
  • Length: 1340 mm (52.8 in)
  • Weight: approx. 1690 g (3.73 lb)
  • Wing Area: approx. 37.8 dm² (586 in²)
  • Wing Loading: approx. 44.7 g/dm² (14.7 oz/ft²)
  • Battery: LiPo 14.8 V (4S) 2200 mAh
  • Motor: Brushless Ø40 × 15 mm, 800 kV outrunner
  • Battery Connector: T-Plug (Deans)
