Chimera4 from iFlight

Details

Introducing our first ultra-light LongRange 4inch BNF for every terrain. Newest iFlight SucceX hardware on board coupled with our XING 1404 motors in different kv classes. Slow crusing or speedy action, theres something for every taste. Get flight times above 15min using at least 4S 850mAh packs. Go crazy and strap a Li-On 4S pack on and go even further, depending on capacity and weight!

GPS Rescue ready for easy recovery in case of signal loss, or even if you've been surfing those mountains and suddenly can't find the way back home.. Betaflight OSD pre-setup GPS elements will show you the way! Caddx.us Turbo Eos V2 2.1mm lens 16:9 NTSC camera, Custom iFlight 160mm LR antenna for best signal coverage even at long distance.

Features

  • Sub 250g long-range quad
  • XING 1404 3000KV(Cruiser)/3800KV (Speed Cruiser) Ultralight motors (Camo) (optional)
  • XING 1404 3000KV(Cruiser)/3800KV (Speed Cruiser) Ultralight motors (black) (optional)
  • X-Geometry body for high performance handling and max. authority on pitch axis
  • DC (DeadCat geometry) bottom plate available (additional item, no props in view)
  • GPS pre-installed for more safety at distance
  • SucceX-E mini F4 +35A 4in1 ESC Flystack
  • 360° TPU protection, FPV cam protection and antenna mounts
  • Caddx.us Turbo Eos V2 2.1mm 16:9 NTSC

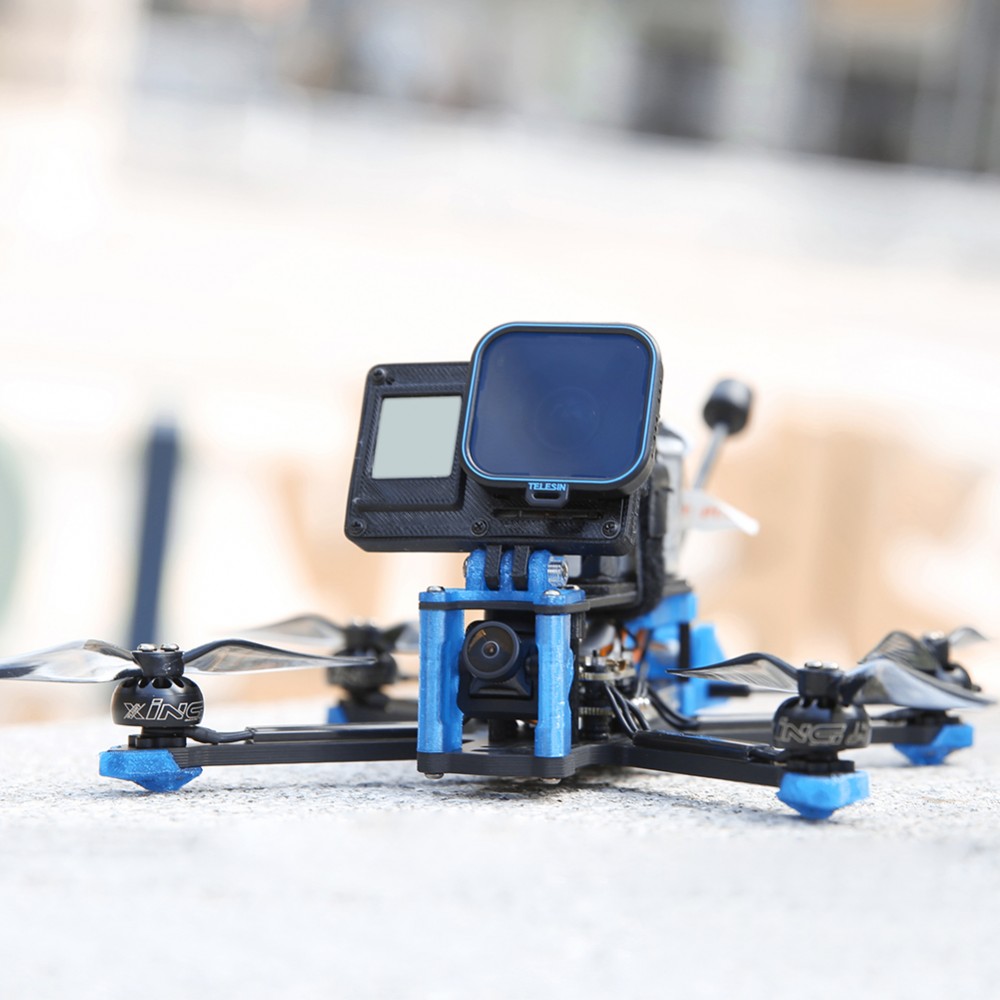

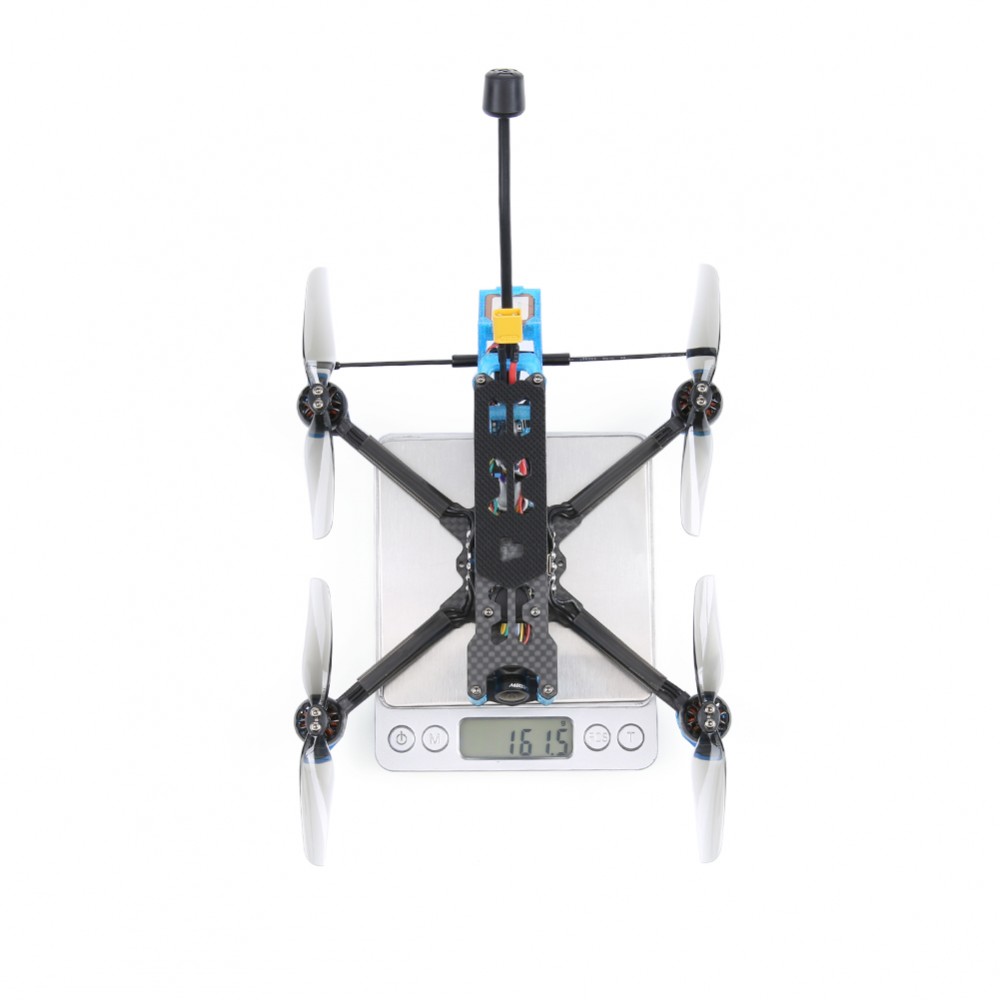

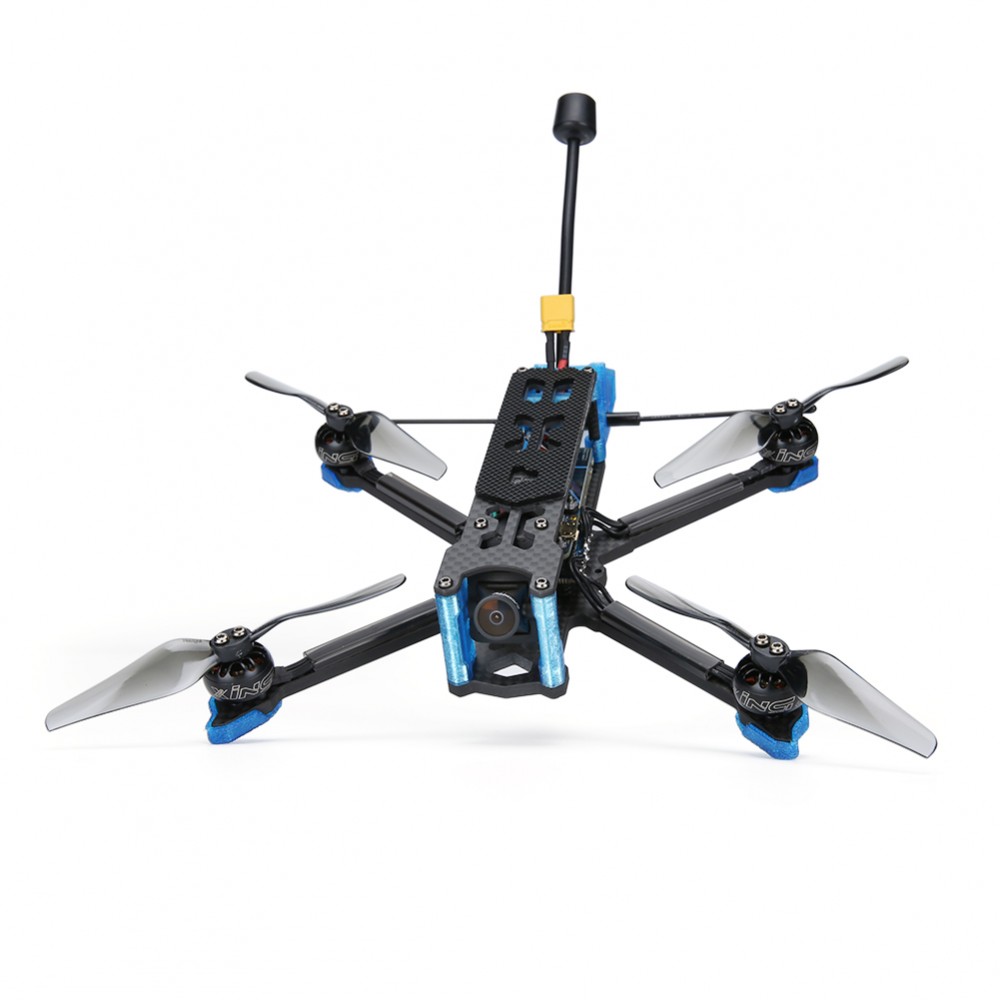

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Chimera4 in particular but at least we know they do distribute iFlight.

Wingspan: 178mm (7 in)
Length: 178mm (7 in)

Weight: unknown
  • Wheelbase: 178mm
  • Main body dimension: 136.8*114.8mm
  • Bottom to top distance: 28mm
  • Arm thickness: 4mm
  • Bottom plate thickness: 4mm
  • Top plate thickness: 2mm
  • TPU Camera plate thickness: 2mm
  • FC: 25.5*25.5mm/20*20mm/16*16mm
  • FPV Cam: 19mm Micro / 20mm

SucceX-E mini F4

  • MCU: 168MHz STM32F405
  • Gyro: MPU6000
  • Blackbox: 8MB
  • Betaflight OSD: YES
  • BEC: 5V 2.5A
  • Uarts: 4
  • ESC Telemetry: yes
  • INA Pad: nuart2
  • Input voltage: 2-6S
  • Size: 25*25mm /20*20mm φ3 mounting
  • Weight: 4g
  • Firmware: BETAFLIGHTF4
