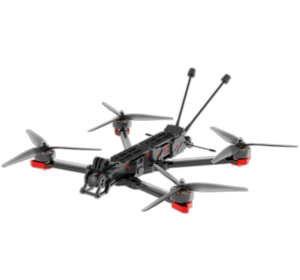

Chimera7 Pro V2 6S HD from iFlight

Details

The KING of Long Range FPV! Another breakthrough in FPV visuals from DJI with our upgraded frame and electronics. A super-efficient iFlight 7.5inch Long-Range bird that can go where you couldn't go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! A super stiff frame for minimum resonance and XING2 2809 motors for maximum 7.5inch prop control. Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6cells recommended or 5cells for slow cruising. But whatever style you fly, a Lipo or Lion pack will just do the job. Recommended 5S 3.000mAh above (slow cruising) or our new 6S 3300mAh battery.

Features:

Smooth and Powerful XING2 Motors
Latest Chimera7 Pro Frame for Maximum Protection
DJI O3 HD Air Unit Low-Latency Digital Transmission
4K Stabilized Video with 155° Ultra-Wide Angle
Secured Battery Plug with Anti-Spark Filter
Specially Designed Heatsink for DJI O3 HD Air Unit
GPS Pre-Installed for More Safety at A Distance

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Chimera7 Pro V2 6S HD in particular but at least we know they do distribute iFlight.

Where to buy

China
iFlight RC
check web site
Ship to: Worldwide

USA
getfpv
check web site
Ship to: USA

Australia
Next FPV
check web site
Ship to: Australia

USA
Grayson Hobby
check web site
Ship to: USA

Wingspan: 199mm (7.8 in)
	Length: 270mm (10.6 in)
Weight: 750 g (1.7 lbs)

See Specs & Tech Details

C: BLITZ F722 Flight Controller
ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
Video Transmission: DJI O3 Air Unit
Frame: 327mm wheelbase
Motor: XING2 2809 motors
Prop: 7.5X3.7X3 propellers
Weight: 695g
Model: Chimera7 Pro
Takeoff Weight: Approx. 750g
Dimensions (L×W×H)：270x199x34mm
Max Ascent Speed: 6 m/s (Normal Mode, Sport Mode)
Max Descent Speed: 6 m/s (Normal Mode, Sport Mode)
Max Speed: 27 m/s (Manual Mode)
Maximum Takeoff Altitude: 7000 m
Max Hover Time: Approx. 30 mins
Max Flight Distance: 18 km
Max Wind Speed Resistance: 130 Km/H (Level 5)
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Transmission Power (EIRP): FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm
Antennas: Dual Antennas
GNSS: GPS + Galileo
