Apex from impulseRC

Details

The Apex shatters the glass ceiling in freestyle frame design.

Through a process of continous refinement and always striving to improve we have created a new breed of freestyle frame. The Apex does not compromise in stiffness or durability, so you never have to choose between confidence and performance.

Unique design elements new to the FPV world make your build and maintenance more simple than ever before. Toughness of the frame itself is increased while also offering much better protection for your investment in flight electronics.

The arms of an FPV frame are the key structural component which translate the thrust from the motors to the majority of the mass in the aircraft, which is secured to the body of the frame. The design of the arms and how they are attached to the body is one of the most vital aspects that influences the performance of an FPV frame.

There are multiple problems which can occur with existing arm designs which can lead to poor performance, difficulty tuning and added cost. The Apex addresses all of these problems with a simple and unique new design that eliminates all arm slop and drastically increases durability.

Pictures

Radio icons

(Click on the icon you want to download)

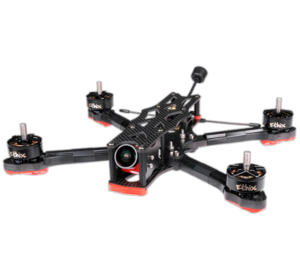

FrSky X20/X20s Ethos
FrSky Horus OpenTx
FrSky Horus FrOs
Standard
Silhouette
FrSky X9D/X9D+/X9E
Spektrum IX12 & IX20
Futaba 18MZ

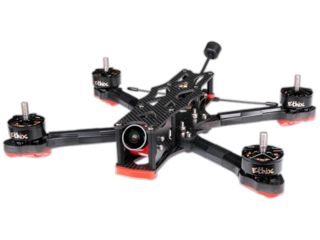

Jeti DS-24
Graupner MZ-16 & MZ-32
Radiomaster TX16S
Jumper T16 & T18 series

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Apex in particular but at least we know they do distribute impulseRC.

Where to buy


Wingspan: unknown
Length: unknown

Weight: 125 g (4.4 oz)

Plate thickness

  • Arms: 5.5mm
  • Key: 5mm
  • Lower Main: 2.5mm
  • Upper Main: 2mm
  • Top: 2mm
  • Camera Sides: 2mm

Standoff height

  • Front: 28mm
  • Rear: 20mm

Dry weight

  • Alu hardware: approx. 115g
  • Steel hardware: approx. 125g

Motor to motor: 225mm - Fits 5.2" Props
Arm Geometry: Compressed X using Pythagorean triple 3:4:5

Variants

apex
Apex (Black)
