OMP Hobby M7R

Radio-Controlled Helicopter for RC Pilots

Details

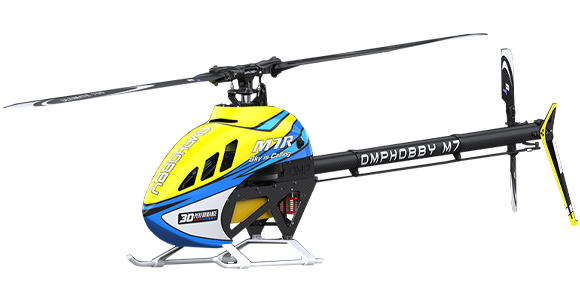

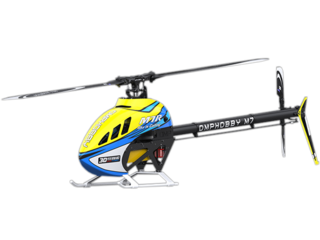

The OMPHOBBY M7R is a competition-focused 700-class RC helicopter developed as the refined successor to the proven M7. Designed for maximum performance, its optimized airframe is approximately 200 g lighter than the original model, reducing inertia while maintaining excellent strength and durability. The result is faster cyclic response, precise collective control, improved directional stability, and an exceptionally sharp tail response.
The M7R features a sleek rotor head with POM inserts, delivering crisp control from low head speeds around 1100 RPM up to 2400 RPM. Its heavy-duty 122T main gear, reinforced belt-driven tail system, and adjustable gearing are engineered for demanding power systems and intense competition flying. A redesigned lower frame provides easier battery installation, improved maintenance access, and compatibility with large batteries.
The helicopter also includes a lighter, more aerodynamic canopy and retains key component interfaces for compatibility with many original M7 parts. Several kit versions are available, with optional blade, motor, ESC, and Bluetooth module packages

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 1580mm (62.2 in)
Length: 1387mm (54.6 in)

Weight: 3650 g (8 lbs)
  • Main Rotor Diameter: 1,580 mm (62.2 in), using 700 mm blades (27.6 in)
  • Tail Rotor Diameter: 287 mm (11.3 in), using 115 mm blades (4.5 in)
  • Main Shaft Diameter: 10 mm (0.39 in)
  • Recommended Battery: 12S LiPo
  • Drive System: Gear-driven
  • Main Gear: 122T
  • Pinion Options: 11T / 12T / 13T / 14T / 15T (not included)
  • Airframe Weight: 2,070 g ±5 g (4.56 lb ±0.01 lb)
  • Weight with Electronics: Approximately 3,650 g (8.05 lb), without battery
  • Overall Length: 1,387 mm (54.6 in)
  • Overall Height: 316 mm (12.4 in)
  • Overall Width: 194 mm (7.6 in)
  • Rotor Span Shown: 1,590 mm (62.6 in)

Other Variant(s)
