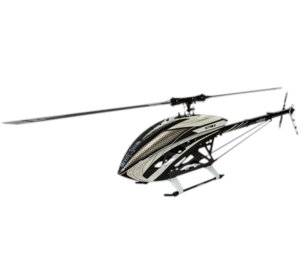

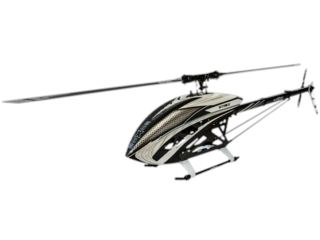

Strike 7.1 Light from SoXos

Details

When developing the soXos STRIKE 7.1, the main priority was to increase the rear speed. The transmission ratio is now 1:5.05. This means that very good rear performance can be achieved even at “low RPM”. During the reconstruction, we also made further improvements/changes such as the freewheel, belt tensioner, canopy lock, rotor head damping, etc. The 5 different colored canopies, which also come with matching rotor blades, round off the new development. This enables us to meet customer requirements. The new soXos STRIKE 7.1 is not just a helicopter, but an extremely convincing product that claims to be the absolute market leader.

The canopies and the enclosed rotor blades are available in the following colors: a striking neon yellow, neon orange, a stylish white, a beautiful green and an elegant red.  The hoods were deliberately produced with a matt finish. Contemporary, elegant and stylish. This allows you to let your personality flow into your own equipment and vary the color choice of the helicopter.

Content:

  • soXos STRIKE 7.1 Kit
  • Motor pinion 6 and 8mm for motors from 520-560KV/12S
  • Battery plate
  • Aluminum servo lever suitable for all common servo types
  • Canopy in the color of your choice
  • Rotor blades 1st-RC 690mm, in the same color as the canopy
  • Tail rotor blades 1st-RC 105mm, in the same color as the canopy
  • Instruction manual

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Strike 7.1 Light in particular but at least we know they do distribute SoXos.

Wingspan: 1570mm (61.8 in)
Length: 1380mm (54.3 in)

Weight: 2180 g (4.8 lbs)
  • Weight of the mechanics without RC components & rotor blades: approx. 2,180 g
  • Rotor blade length: 685 - 710mm
  • Tail rotor blade length: 105mm
  • Tail speed: 1:5.05
  • Main gear ratios: 7.94 - 10.06 (9.43 included in the kit)
  • Maximum size of the motor: Ø 63mm, height 64mm, motor shaft length from 20 - 56mm
  • Maximum dimensions of the drive battery: width 62mm, height 68mm, length 350mm
  • Main rotor diameter: approx. 1,570 mm with 690 mm rotor blades
  • Weight of mechanics without drive battery: approx. 3690 g
  • Length: 1380mm
  • Height: 340mm
