Alpha Jet 80mm from XFLY Model

Details

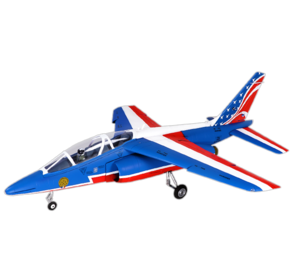

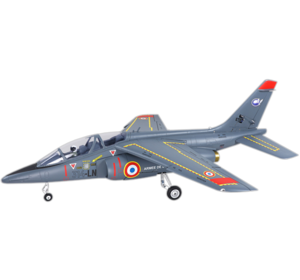

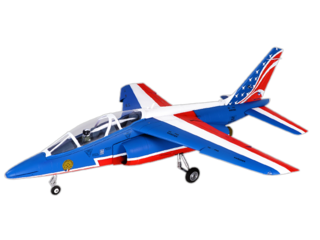

The XFly Alpha 80mm EDF jet is an extra scale and feature-rich model. It is packed full of scale details including molded-in panel lines, simulated antenna, clear canopy, removable gun pod and more. Featuring the functional LED navigation and landing lights, operational flaps, full-flying horizontal stabs, sequenced gear doors and scale retractable CNNC metal landing gears, the XFly Alpha jet can take your scale-like flying experience to another level!

The stock power system includes high-efficient 12-blade 80mm fan, 6S-compatible brushless inrunner motor and 100A ESC that delivers top speed, vertical performamce and turbine-like sound with 6S Lipo battery. Integrated wing connectors and glueless design facilitate fast and easy assembly- only 8 screws needed to get the Alpha jet almost ready to fly. To cater to different aesthetic needs, a military scheme and a demonstration scheme are available for your choice.

All details and features add up to deliver flying experience of a scale advanced jet trainer, and make your pilot jet dream come true!

Features:

  • Landing gears and gear doors
  • Les lights
  • Operationnal flaps
  • Full-flying horizontal stabs
  • Convenient canopy
  • Battery Compartment
  • Servos and Ball-link equipped Linkages
  • Removable gun pods and EDF cover

Pictures

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.


Wingspan: 970mm (38.2 in)
Length: 1250mm (49.2 in)

Weight: 2850 g (6.3 lbs)
  • Material: Lightweight yet strong EPO, ABS engineering plastics
  • Wingspan: 970mm/38.2in
  • Overall Length: 1250mm/49.2in
  • Wing Load: 134g/dm2
  • Wing Area: 21.2dm2
  • Flying Weight: 2850g
  • Propeller/EDF: 80mm 12-Blade Fan
  • Motor: 3280-KV2200 Brushless Inrunner Motor
  • ESC: 100A ESC 7A UBEC
  • Servos: 9g Digital Servo'5, 13g Digital Servo 3, 25g Digital Servo'1
  • Flying Duration: 5 minutes
  • Landing Gear: CNC shock-absorbing metal, landing gears with sequenced gear doors
  • LED lights: LED'6
  • Other Electronics: Main Wiring Board"1, Wing plug set'2
  • Channels: 6CH-Throttle, ailerons, elevator, rudder, flaps and retracts
  • Battery Compartment: 170X55X45mm (Length"Width Height)
  • Recommended Battery: 22.2V 4000-5000mAh=
