A6M2 ZERO from 3D LabPrint

Details

Fully 3D printable RC model of the Japanese attack plane, specially designed to meet ACES and EPA aircombat requirements, but also as a cheap and easy to build RC model for everyday flying. Many scale details such as armament or airframe plating encourages to create realistic paint jobs. This plane has been designed for printing from PolyLight 1.0 LW-PLA active foaming filament, that allow even the small printed planes to be as light as any other RC plane building technique. Get ready for battle with this great performing flying legend!

You’ll get a highly detailed scale WWII fighter. Low wing loading, very low stall speed allows easy landing, scale performance and long flight times.

A6M2 Zero is the next of new LW Planes
series designed for easy and cheap flying. The build is simple even for a beginner. It’s very low weight, easy assembly and fantastic flight characteristics makes this model an ideal plane for beginner RC pilots.

Very suitable for dads and kids. Children will learn some modern building skills and technology and most of all have fun. This is the reason, why every dad should have a 3D printer at home.

This model has been completely designed with the new PolyLight LW-PLA material in mind.

Parts printed from this LW-PLA are light, easily sanded and glued together. This model requires only about 220 g of this material, that means it’s a very cheap build. In case of accident, parts can be easily reprinted with just a filament cost.

We’ve been testing this material for half a year before this plane was released… The material is using an active foaming technology to achieve lightweight, low density PLA parts. At around 230°C this material will start foaming, increasing its volume by nearly 3 times.

Both the wing and fuselage features extensive hitech 3d structural reinforcement, making the model very rigid, yet maintaining lightweight airframe and exact airfoil, even it is made only from plastic. This perfect and exact 3d structure is possible thanks to additive 3dprinting technology only.

Easy to assemble, without need of any extra tool or hardware. Just glue printed parts together. The rest of the assembly is very easy. Simply add brushless motor, ESC, servos and radio system. Don´t worry, a detailed step by step PDF/VIDEO is included.

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

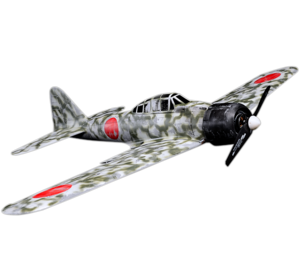

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

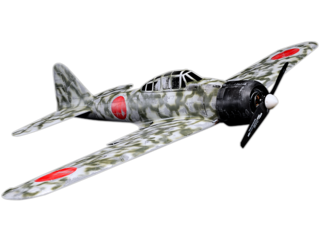

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the A6M2 ZERO in particular but at least we know they do distribute 3D LabPrint.

Wingspan: 1000mm (39.4 in)
Length: 726mm (28.6 in)

Weight: 500 g (1.1 lbs)
  • Wingspan: 1000 mm / 39.4 inch
  • Length: 726 mm / 28.5 inch
  • Height: 188 mm / 7.4 inch
  • Wing area: 18,3 dm2 / 1.96 square feet
  • Wing loading: 31 g/dm2 / 15.3 oz/square feet
  • Center of gravity: at the wing spar (60 mm from the leading edge)
  • Airfoil: LHK508 modified by 3DLabPrint
  • Print weight (LW PLA): 224 g / 7.90 oz
  • Empty weight (w/o battery): 380 g / 13.40 oz
  • Takeoff weight (3s 1300 lipo): 500 g / 17.63 oz
  • Max takeoff weight: 700 g / 24.70 oz
  • Never exceed speed, VNE: 110 km/h / 62 mph
  • Design maneuvering speed, VA: 50 km/h / 31 mph
  • Stall speed, VS: 15 km/h / 9.4 mph
