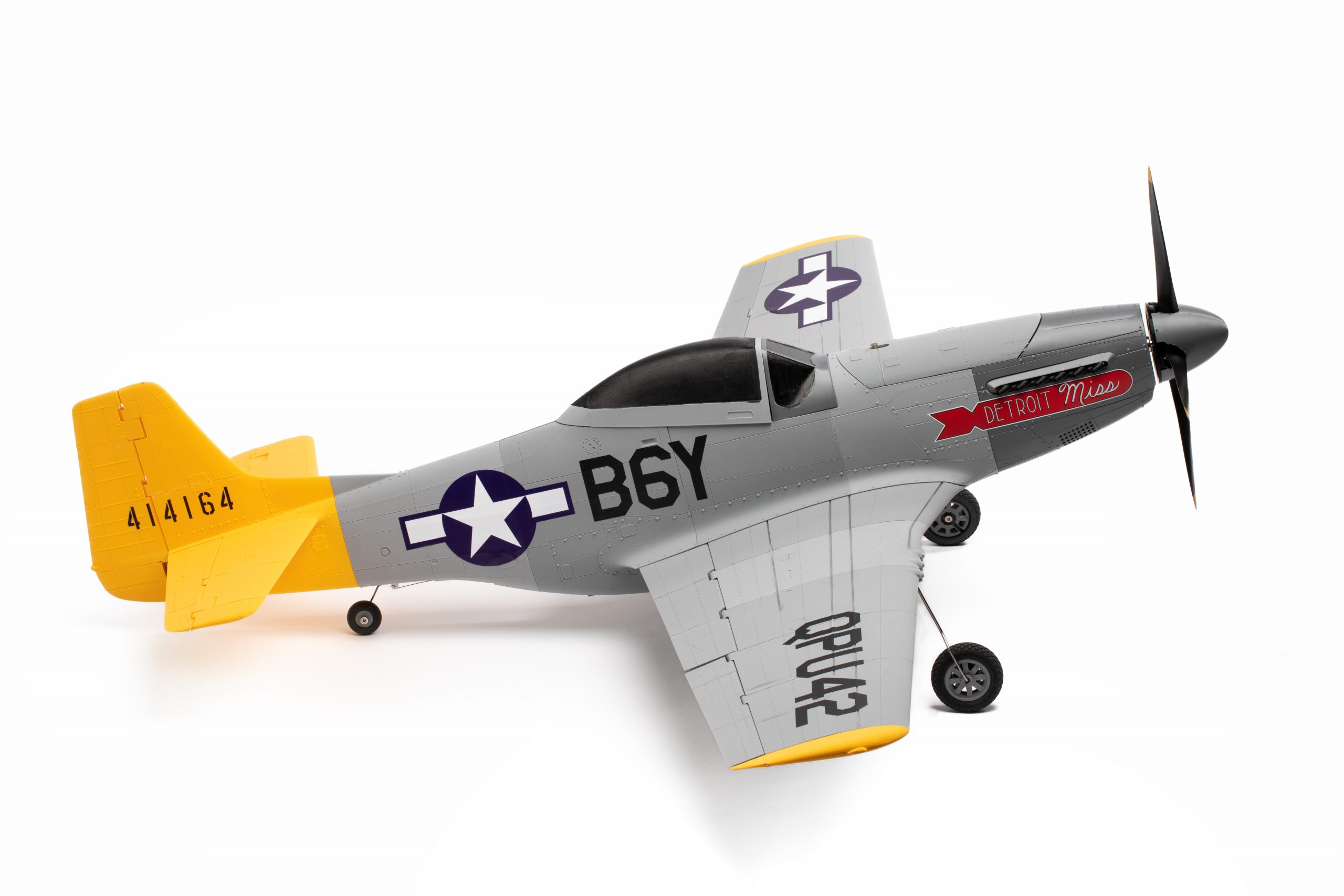

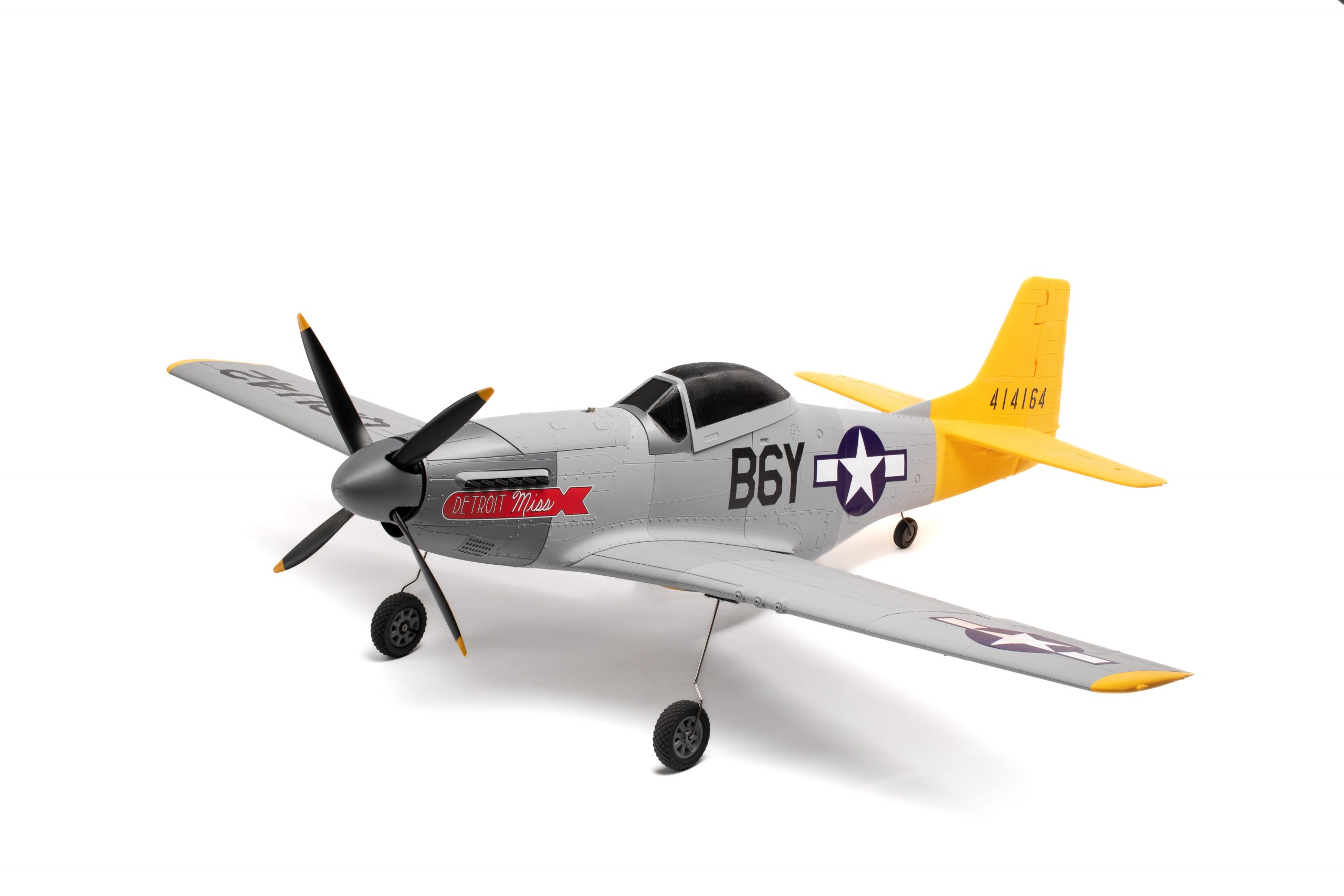

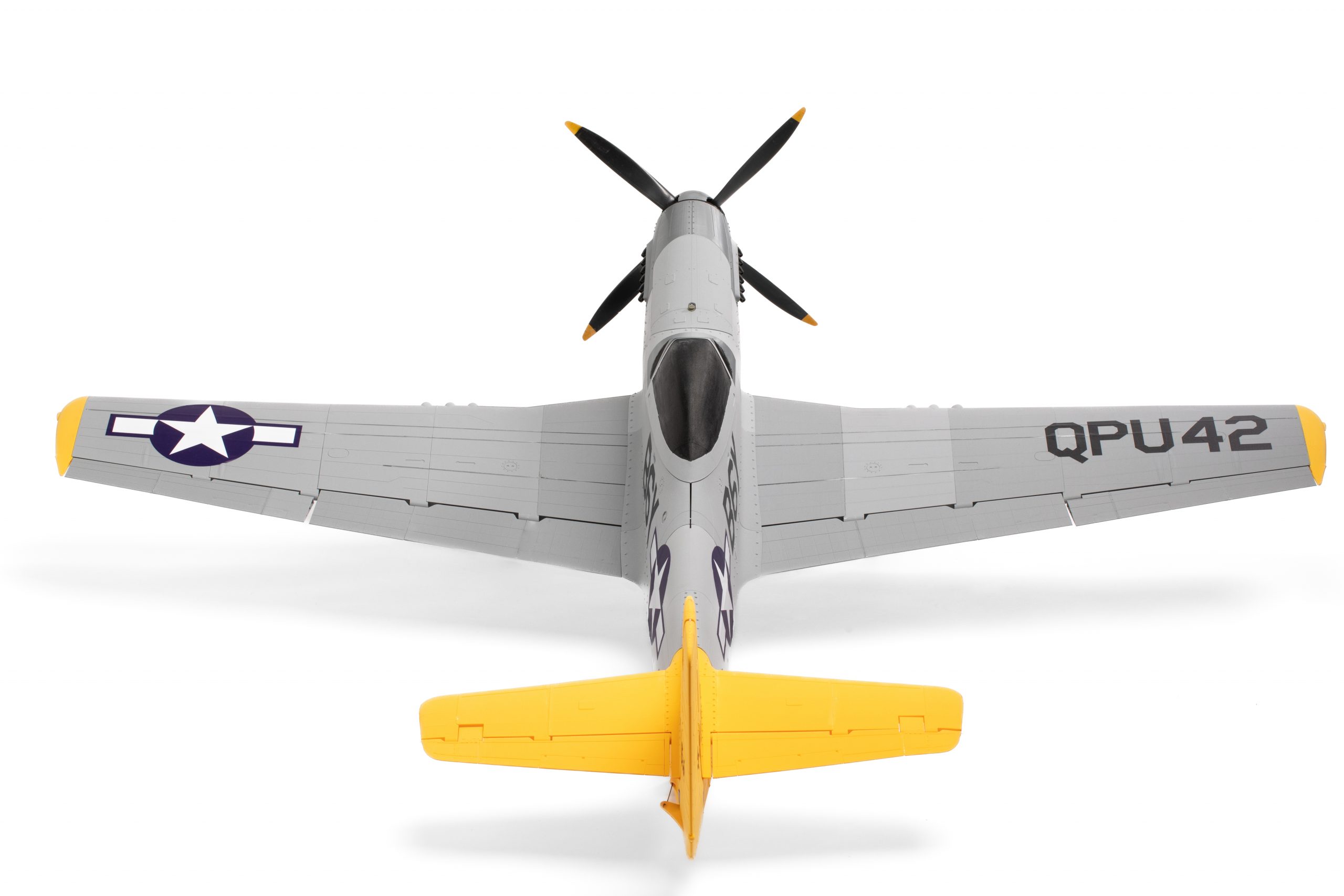

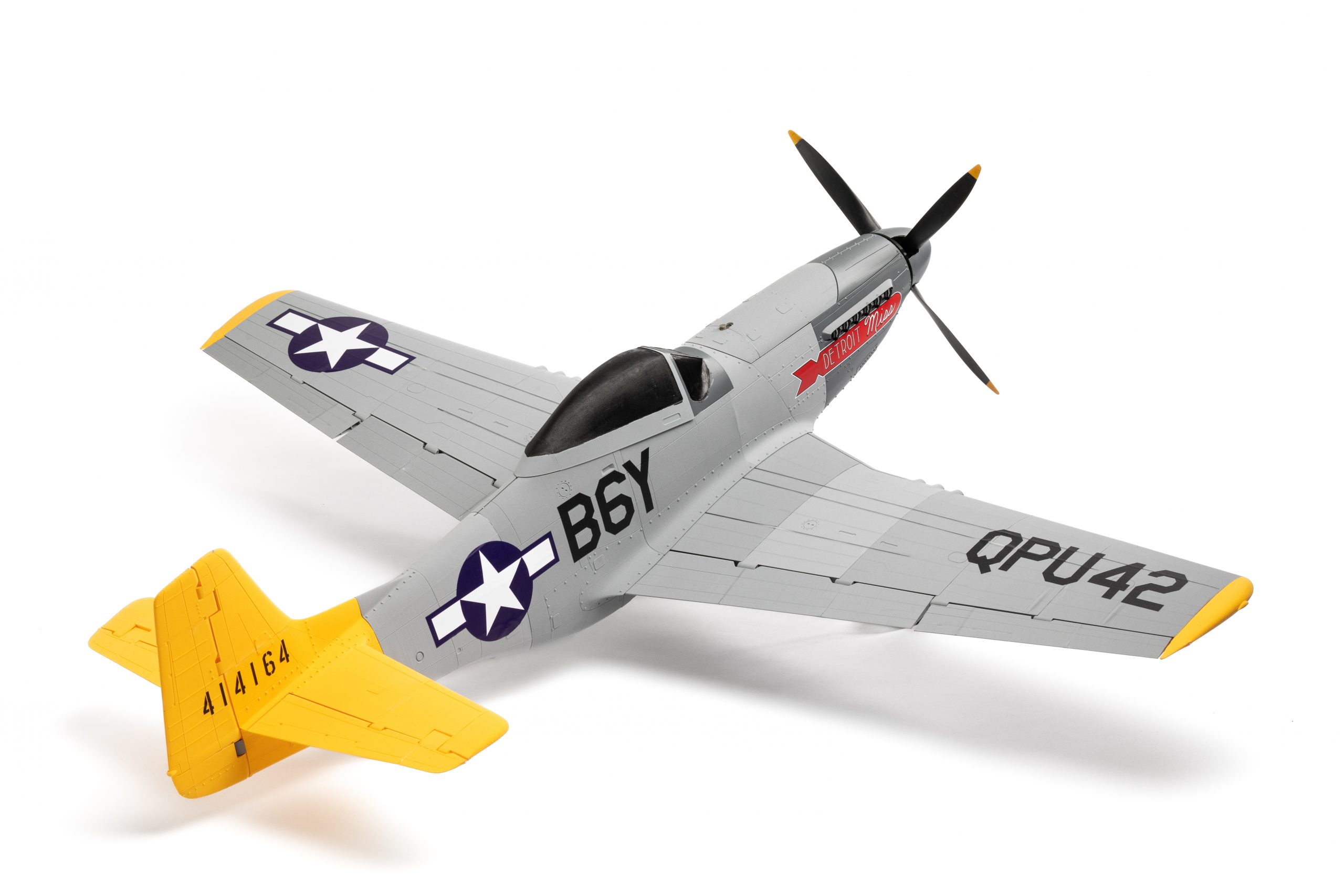

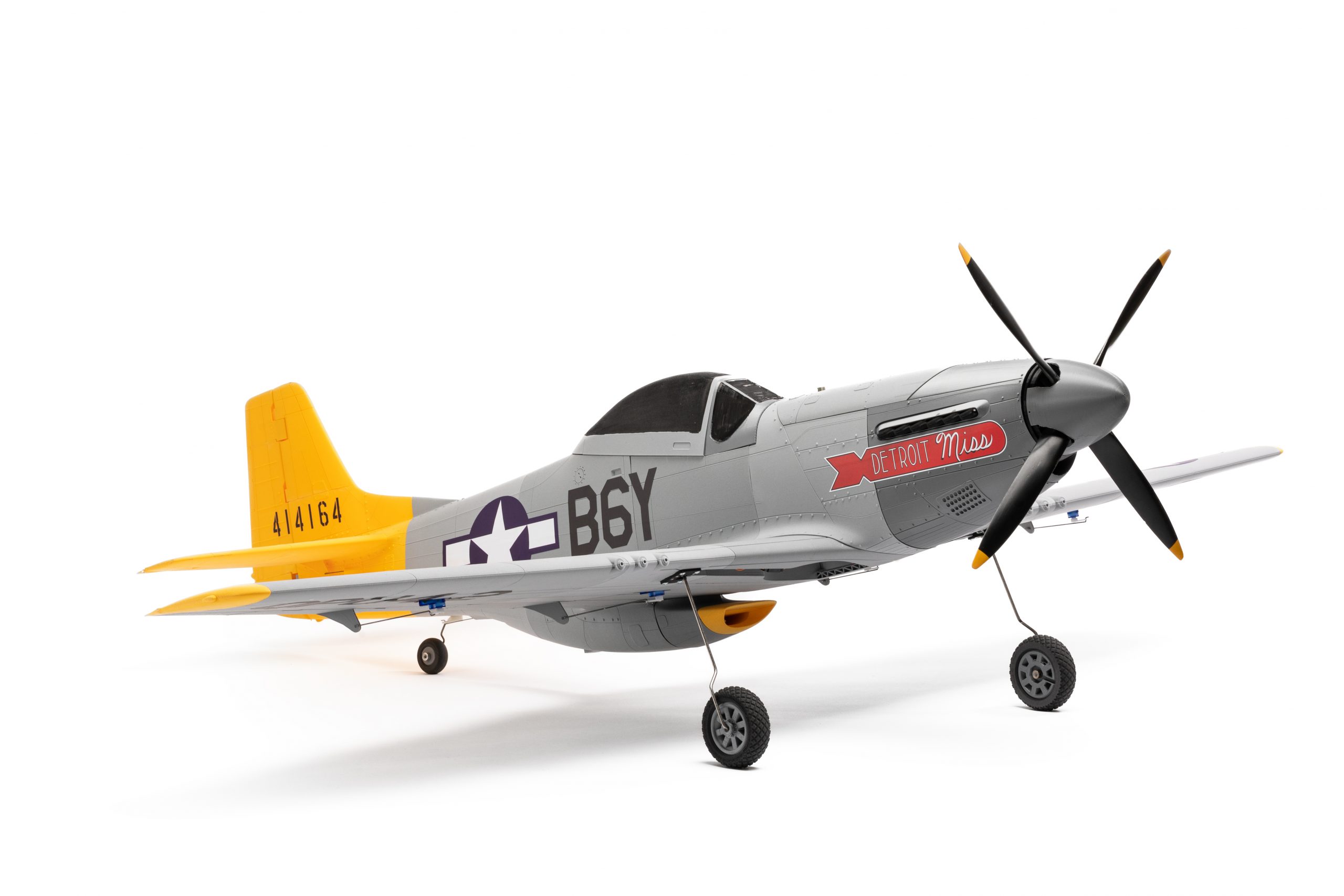

North American P-51D Mustang from 3D LabPrint

Details

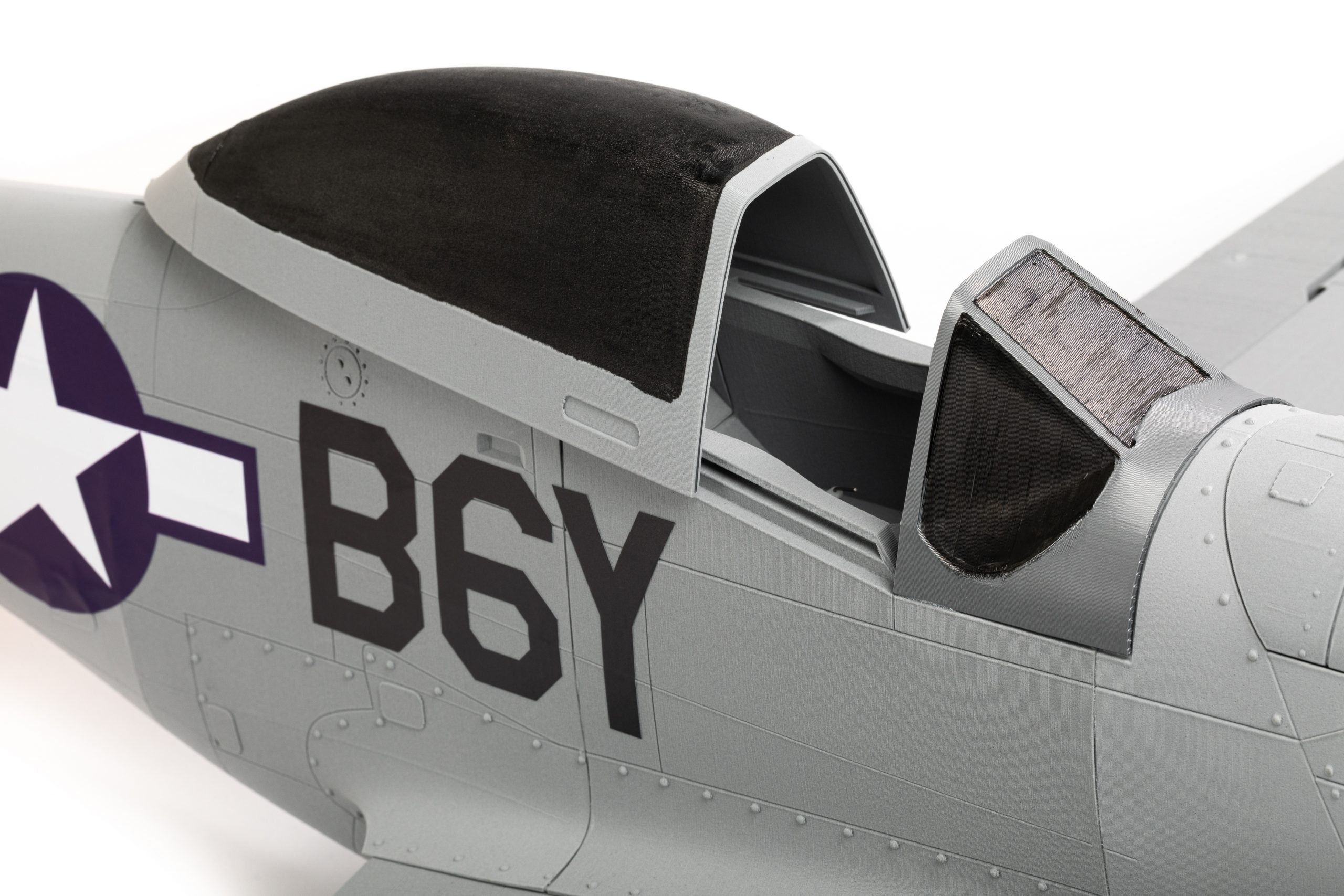

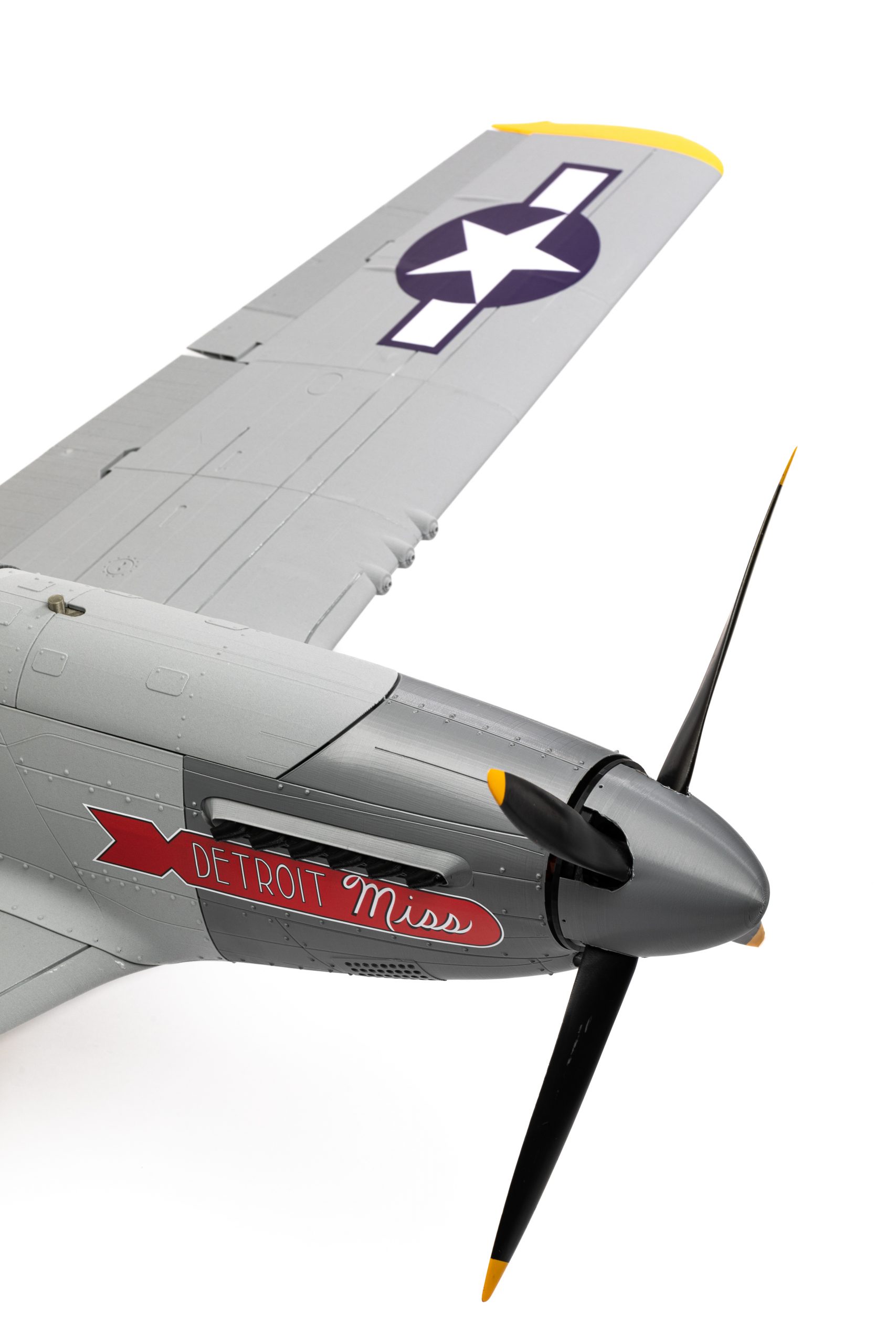

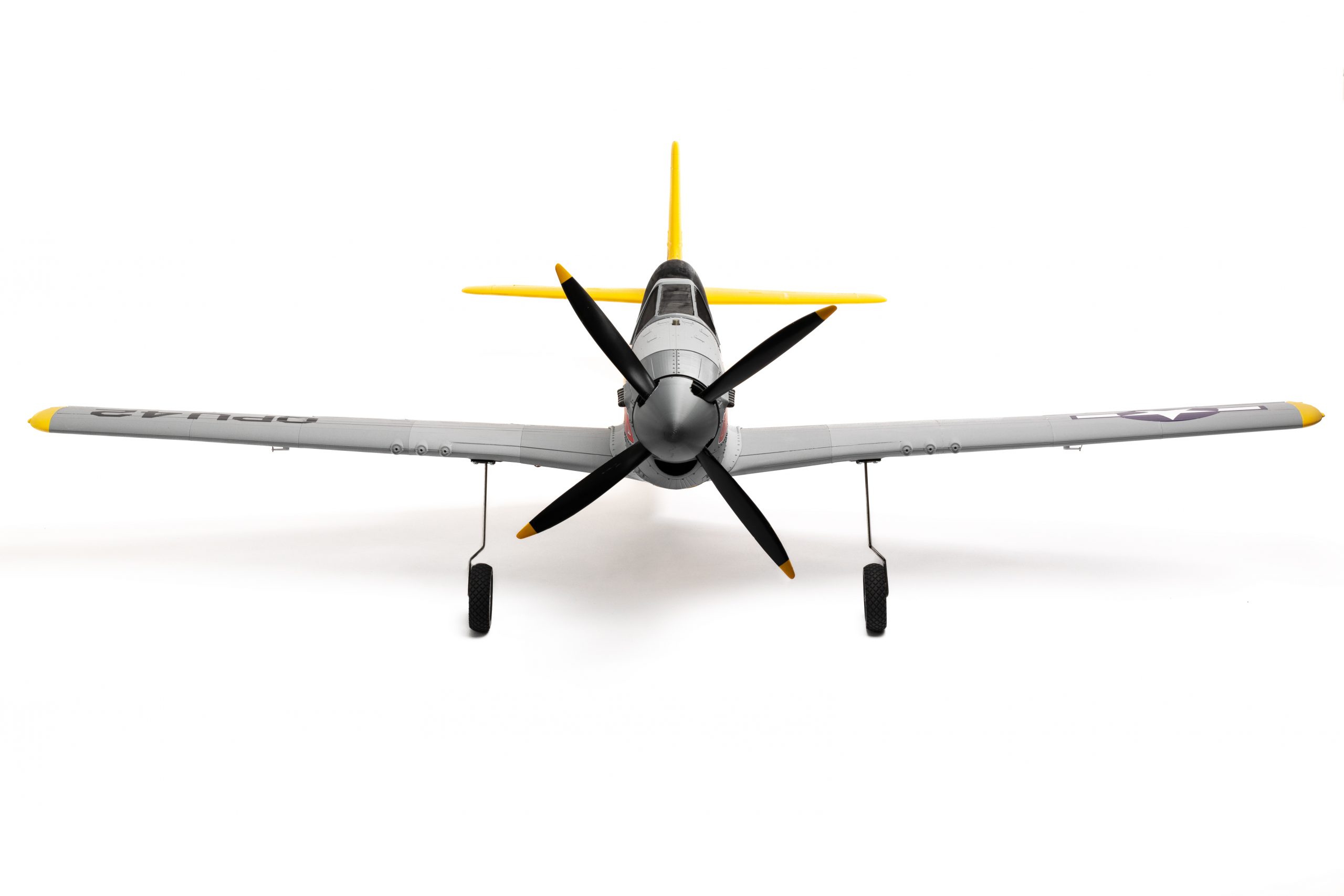

Fully 3D printable RC model of the classic plane, designed in 100% vase mode (retraction free) for printing mainly with PolyLight 1.0 LW-PLA active foaming filament (some parts PolyAir, PETg and flex), that allow printed planes to be lighter than any other RC plane building technique (1500g weight with wingspan 1.4m). Many scale details such as airframe plating Get ready for flying with this great performing flying legend!

Parts printed from this LW-PLA are light, easily sanded and glued together. This model requires only about 300g of this material, that means it’s a very cheap build. In case of accident, parts can be easily reprinted with just a filament cost.

We’ve been testing this material for a years before this plane was released… The material is using an active foaming technology to achieve lightweight, low density PLA parts. At around 230°C this material will start foaming, increasing its volume by nearly 3 times.

Almost all parts of this plane should be printed from LW-PLA (some specific parts needs PolyAir PLA, flex or PETg).

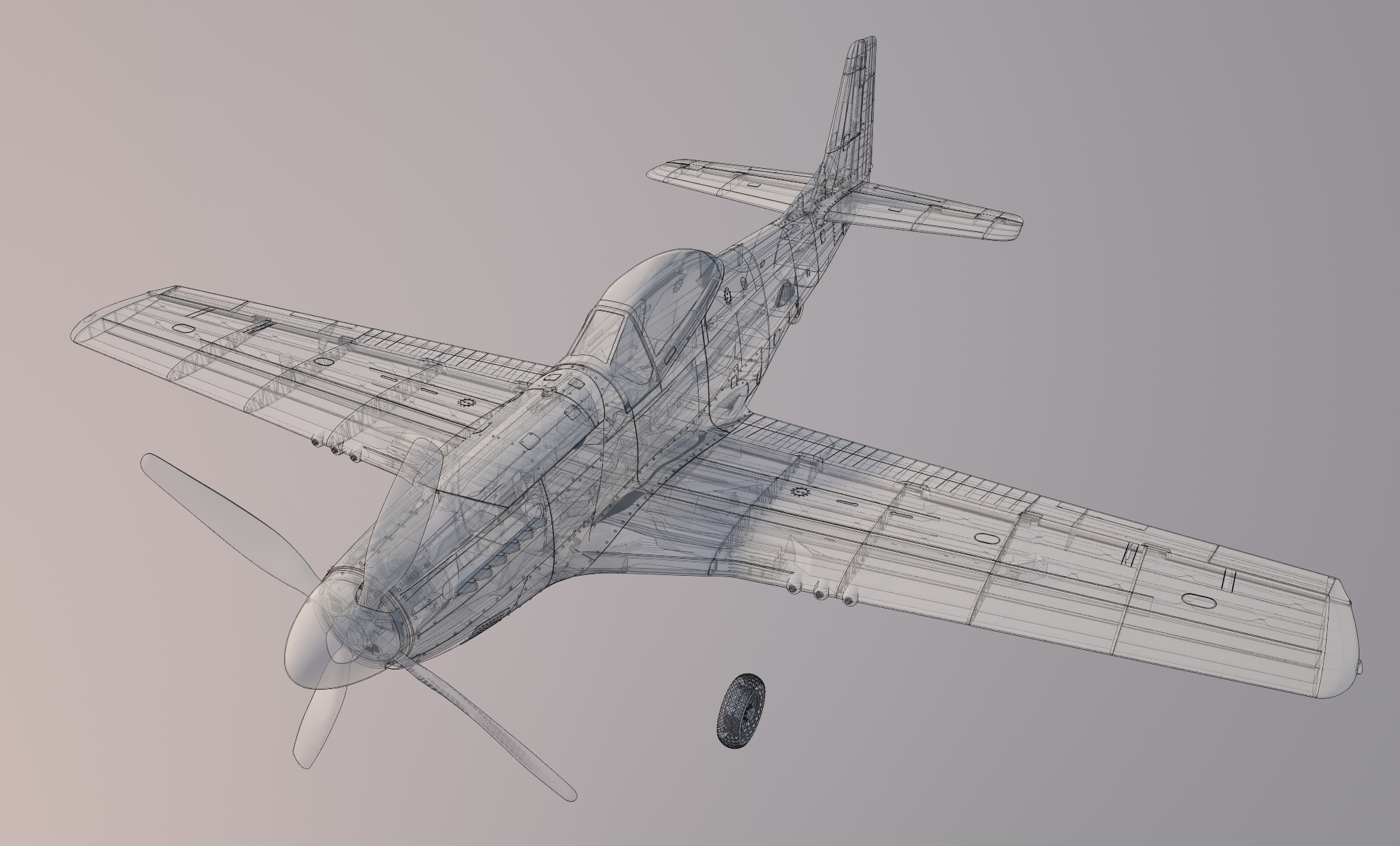

Both the wing and fuselage features extensive hitech 3d structural reinforcement, making the model very rigid, yet maintaining lightweight airframe and exact airfoil, even it is made only from plastic. This perfect and exact 3d structure is possible thanks to additive 3dprinting technology only.

Easy to assemble, without need of any extra tool or hardware. Just glue printed parts together. The rest of the assembly is very easy. Simply add brushless motor, ESC, servos and radio system.

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

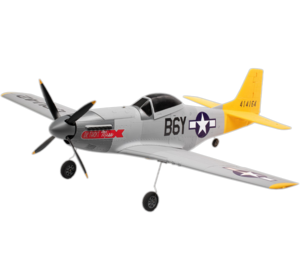

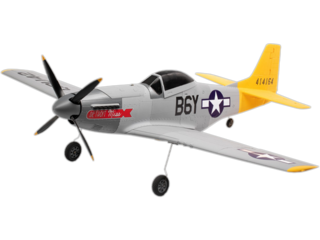

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the North American P-51D Mustang in particular but at least we know they do distribute 3D LabPrint.

Wingspan: 1395mm (54.9 in)
Length: 1220mm (48 in)

Weight: 1500 g (3.3 lbs)
  • Wingspan: 1395 mm / 55 inch
  • Length: 1220 mm / 48 inch
  • Height: 600 mm / 27 inch
  • Wing area: 40,7 dm2 / 4.38 square feet
  • Wing loading: 34.7 g/dm2
  • Center of gravity: 100 mm / 3.9 inch from leading edge
  • Airfoil: LHK508 modified by 3DLabPrint
  • Print weight (LW PLA): 776 g / 27.37 oz (including discs and tyres)
  • Empty weight (w/o battery): 1300 g / 45.86 oz
  • Takeoff weight (3s 2200 lipo): 1500 g / 52.91 oz
  • Never exceed speed VNE: 160 km/h / 99 mph
  • Design maneuvering speed VA: 80 km/h / 50 mph
  • Stall speed, VS: 20 km/h /12 mph

Recommended Setup:

  • Motor: 3542 1000KV (for 3S setup)
  • ESC: 40-50A/3S
  • Propeller: two blade 12 x 6
  • Battery: Li-Po 2200mAh / 3S printed PETg motor mount
