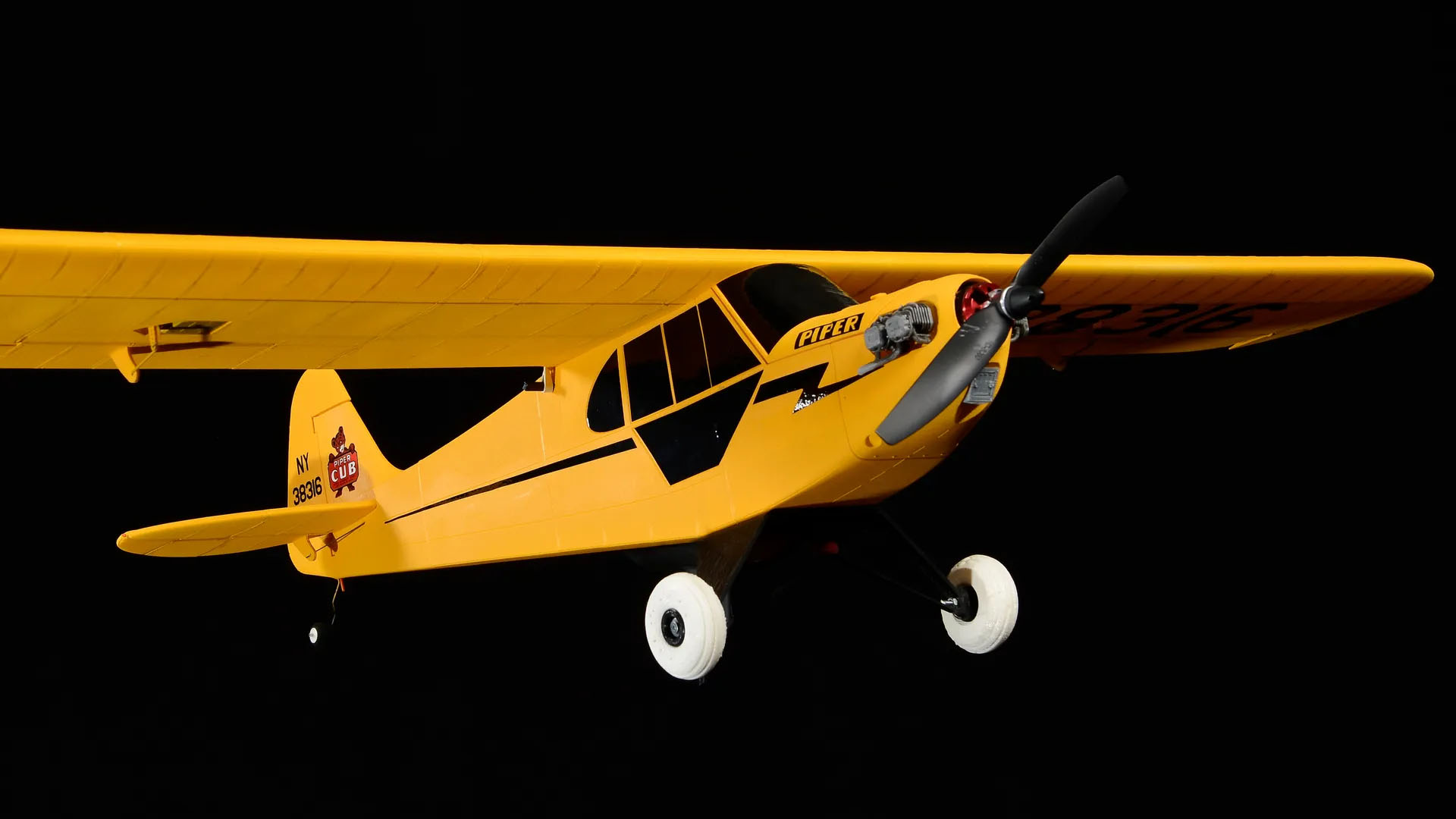

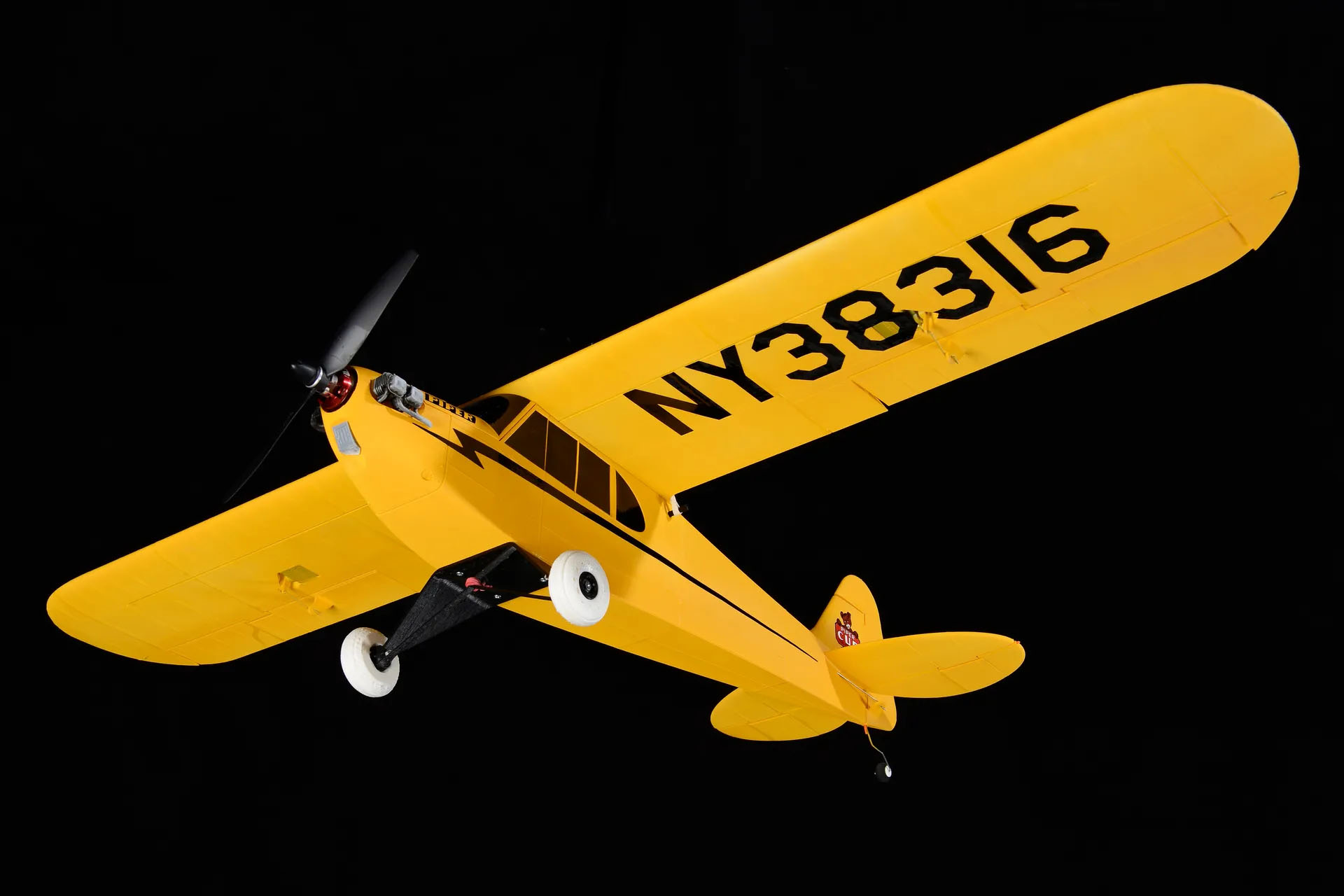

Piper J-3 Cub from 3D LabPrint

Details

Piper J-3 Cub is the next of new LW Planes series designed for easy and cheap flying. The build is simple even for a beginner. It’s very low weight, easy assembly and fantastic flight characteristics makes this model an ideal plane for beginner RC pilots.

Very suitable for dads and kids. Children will learn some modern building skills and technology and most of all have fun. This is the reason, why every dad should have a 3D printer at home.

This model has been completely designed with the new PolyLight LW-PLA material in mind.

Parts printed from this LW-PLA are light, easily sanded and glued together. This model requires only about 300g of this material, that means it’s a very cheap build. In case of accident, parts can be easily reprinted with just a filament cost.

We’ve been testing this material for a years before this plane was released… The material is using an active foaming technology to achieve lightweight, low density PLA parts. At around 230°C this material will start foaming, increasing its volume by nearly 3 times.

Almost all parts of this plane should be printed from LW-PLA (some specific parts needs PLA or PETg).

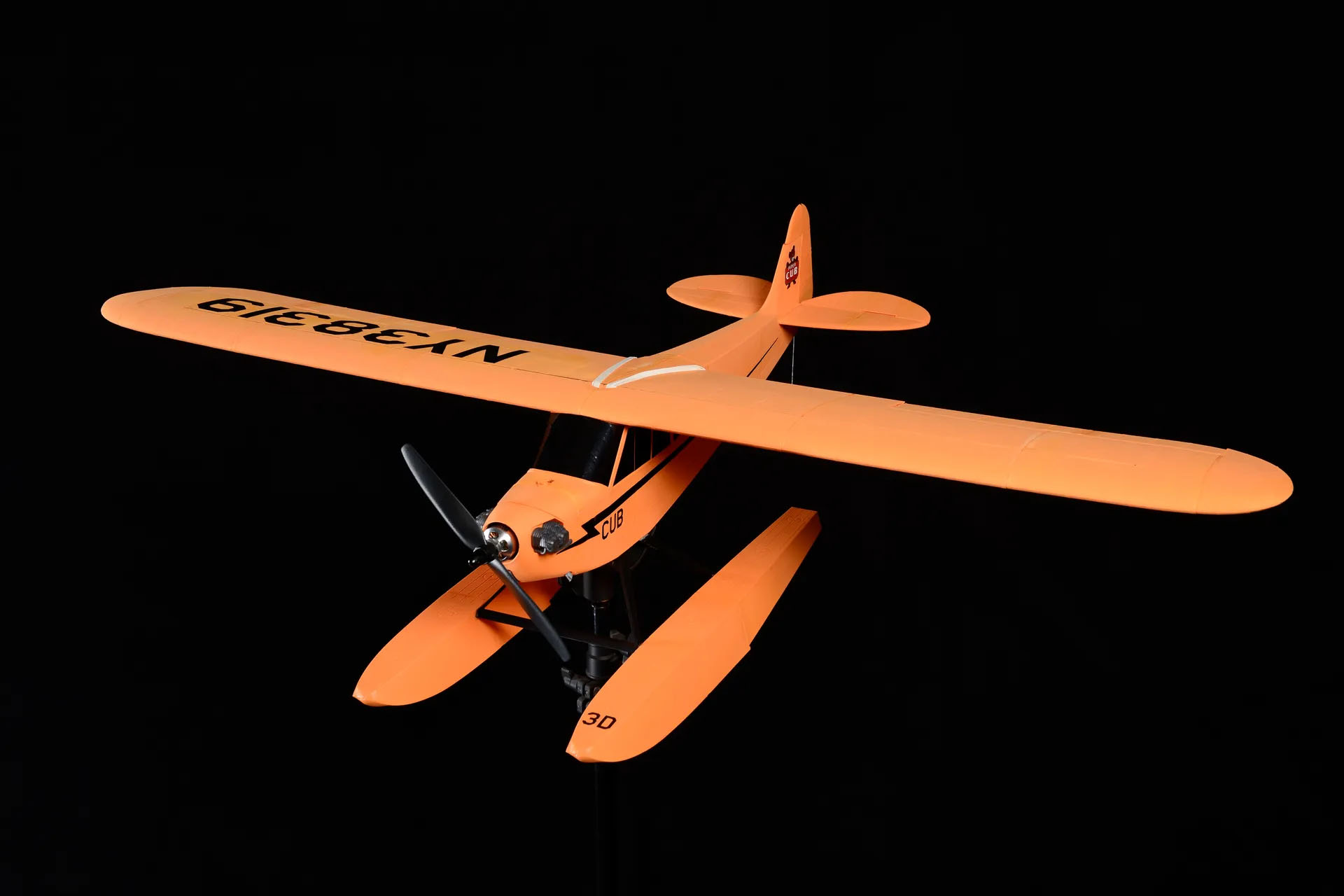

Pictures

Manual


If the Manual doesn't show you can click here to open the document in a new window.

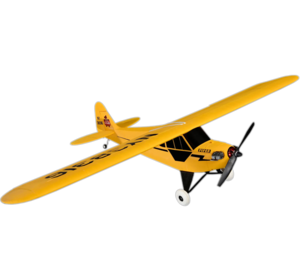

Radio icons

FrSky X10

FrSky X12s

Jumper T16

Jumper T18

Radiomaster TX16S

FlySky NV14

FlySky EL18

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X20

FrSky X20 Pro

FrSky XE

Kavan V20

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

JPG (155x100)

Futaba 18MZ

JPG (158x80)

Graupner MZ16

Graupner MZ32

BMP (158x106)

Jeti DS-24

PNG (320x240)

Spektrum ix12

Spektrum ix20

JPG (266x164)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Piper J-3 Cub in particular but at least we know they do distribute 3D LabPrint.

Wingspan: 1068mm (42 in)
Length: 678mm (26.7 in)

Weight: 500 g (1.1 lbs)
  • Wingspan: 1068 mm / 42.0 inch
  • Length: 675 mm / 26.6 inch
  • Height: 310 mm / 12.2 inch
  • Wing area: 18,15 dm² / 1.94 square feet
  • Wing loading: 31 g/dm² / 15.3 oz/square feet
  • Center of gravity: 44 mm / 1.73 inch from leading edge
  • Airfoil: LHK12 modified by 3DLabPrint Print
  • Weight (LW PLA): 224 g / 7.90 oz
  • Empty weight (w/o battery): 380 g / 13.40 oz
  • Takeoff weight (3s 1300 lipo): 500 g / 17.63 oz
  • Max takeoff weight: 700 g / 24.70 oz
  • Never exceed speed, VNE: 70 km/h / 50 mph
  • Design maneuvering speed, VA: 50 km/h / 31 mph
  • Stall speed, VS: 15 km/h / 9.4 mph
